HRX-OM-W002-A
Chapter 5 Display and Setting of Various Functions
HRR Series 5.5 Advanced setting mode
5-47
Displays the function for the Contact input signal 1.
Set value
Contents
Initial value
OFF
No input signal
○
RNST
Run / stop signal is input
―
RUN
Run signal is input
―
SW
External switch signal input
―
Contact input signal 1 type

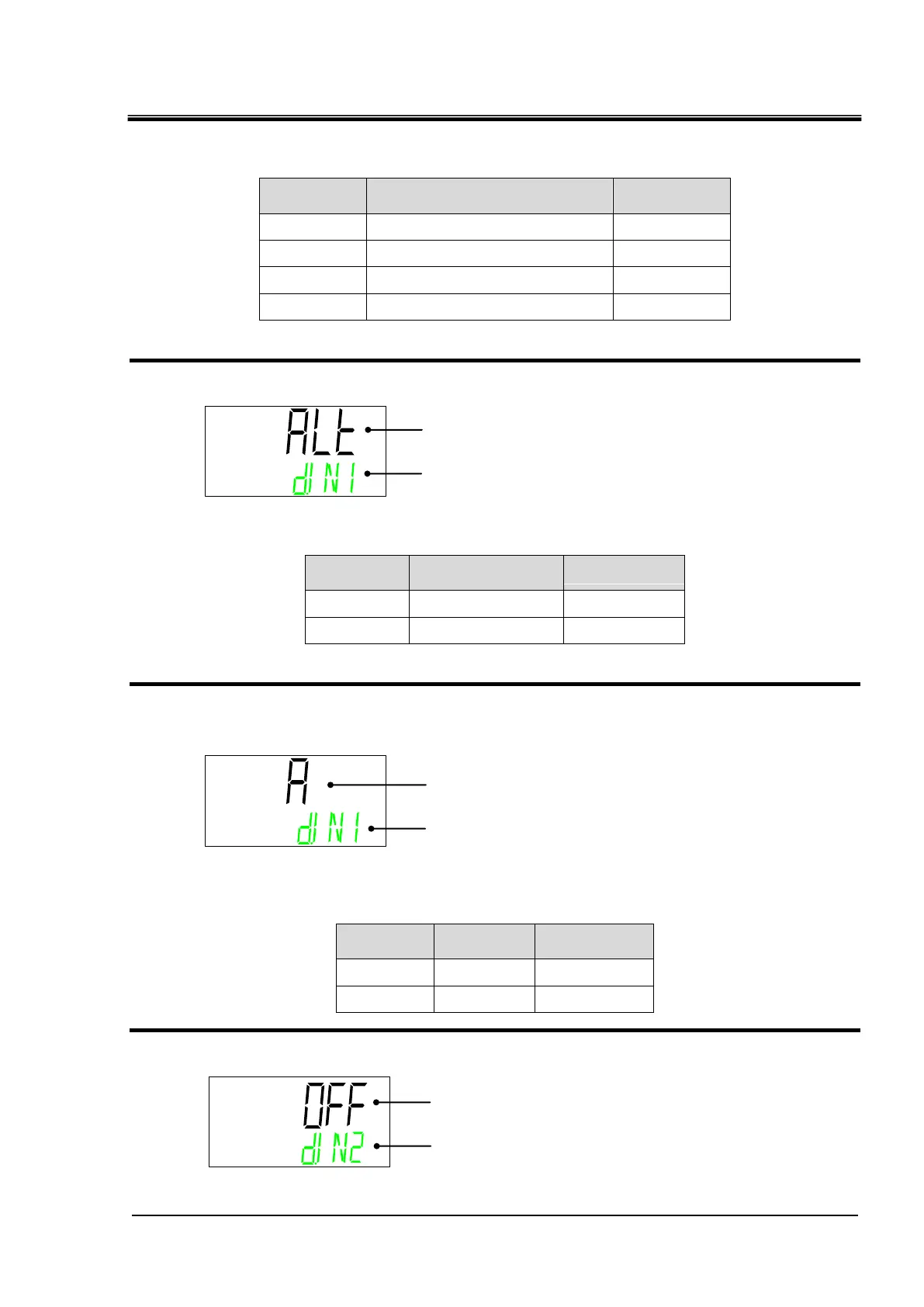

8. Press the [▼] key. Displays screen for setting the type of Contact input signal 1.
Displays the type of Contact input signal 1.
Set value
Contents
Initial value
ALT
Alternate signal
○
mT
Momentary signal
―
Contact input signal 1 Operation
9. Press the [▼] key. Displays screen for setting the operation of the Contact input signal
1.
Select the Contact input signal 1 operation.
Set value
Contents
Initial value
A
N.O. type
○
B
N.C. type
―
Contact input signal 2 Select function
10. Press the [▼] key. Displays screen for setting the function of the Contact input signal 2.
Contact input signal 1 type
Contact input signal 1 operation
Contact input signal 2 function
DIN2 ⇒ SEL(Alternately displayed)
DIN1 ⇒ CON ⇒ TYPE(Alternately displayed)
DIN1 ⇒ SW ⇒ TYPE(Alternately displayed)
