Chapter 5 Display and setting of various functions
5.20 Alarm customizing function HRSH Series
5-54

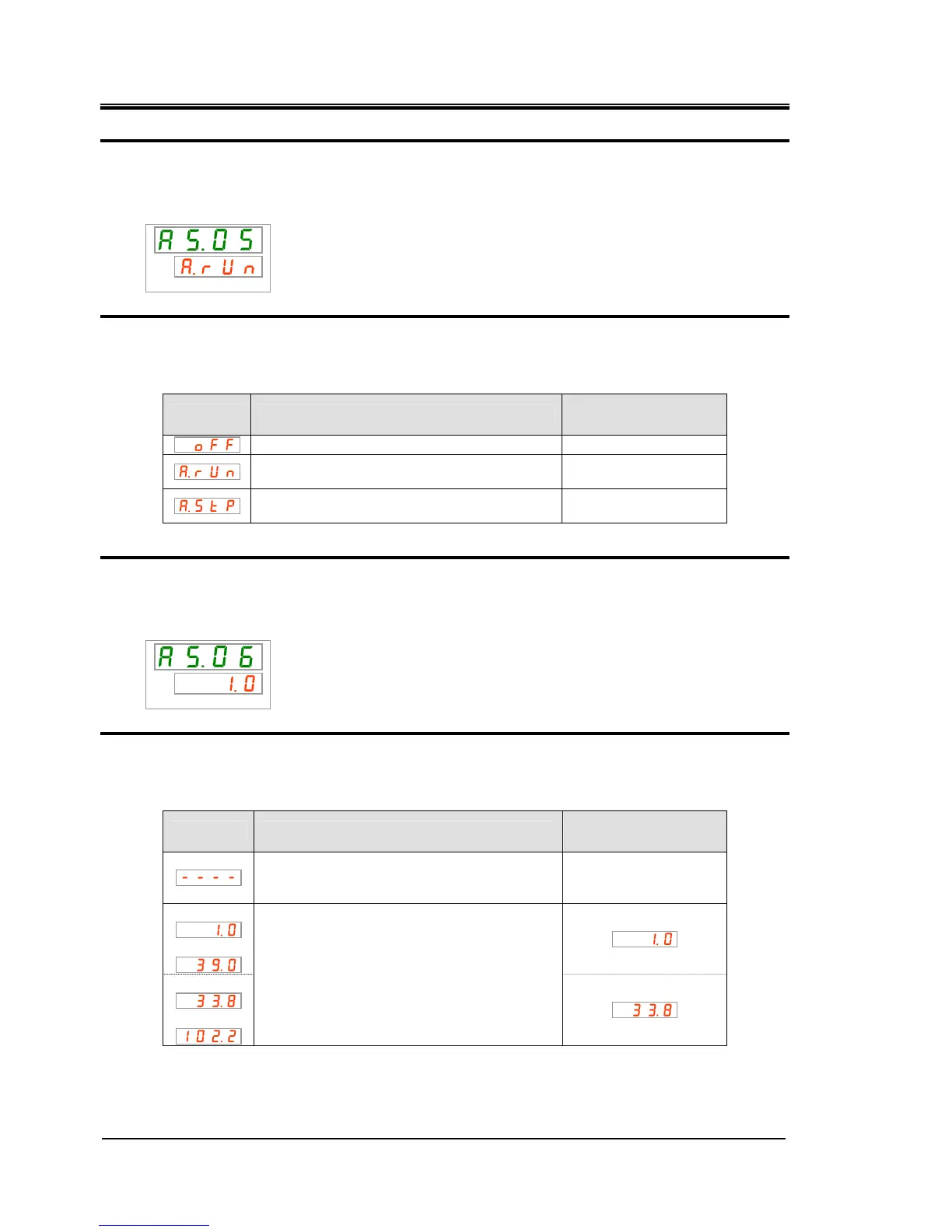

Changing of circulating fluid discharge temperature drop setting and checking
8. Press the [SEL] key once.
The set screen of changing of circulating fluid discharge temperature drop is displayed
on the digital display.
PV
SV
9. Select changing of circulating fluid discharge temperature drop from the table below with
[▲] key or [▼] key, and confirm by pressing “SEL”.
Table 5.20-11 List of set value
Set value Explanation
Initial value
(Default setting)
This alarm signal is not detected.
Operation continues when this alarm signal is
generated.
○
Operation is stopped when this alarm signal is
generated.
Detection temperature for circulating fluid discharge temperature drop Setting and checking
10. Press the [SEL] key once.
The set screen of detection temperature for circulating fluid discharge temperature drop
is displayed on the digital display.
PV
SV
11. Select detection temperature for circulating fluid discharge temperature drop from the
table below with [▲] key or [▼] key, and confirm by pressing “SEL”.
Table 5.20-12 List of set value
Set value Explanation
Initial value
(Default setting)
Setting/checking are not available if the
setting of the circulating fluid discharge
temperature drop is OFF.
Centigrade
to
Fahrenheit
to
Sets detection temp for the circulating fluid
discharge temperature drop.
Temperature unit is Centigrade : Setting unit is
0.1
o
C
Temperature unit is Fahrenheit : Setting unit is
0.1
o
F
