Chapter 2 Name and Function of Parts
2.2 Name and Function of Parts HRSH Series
2-2
2.2 Name and Function of Parts

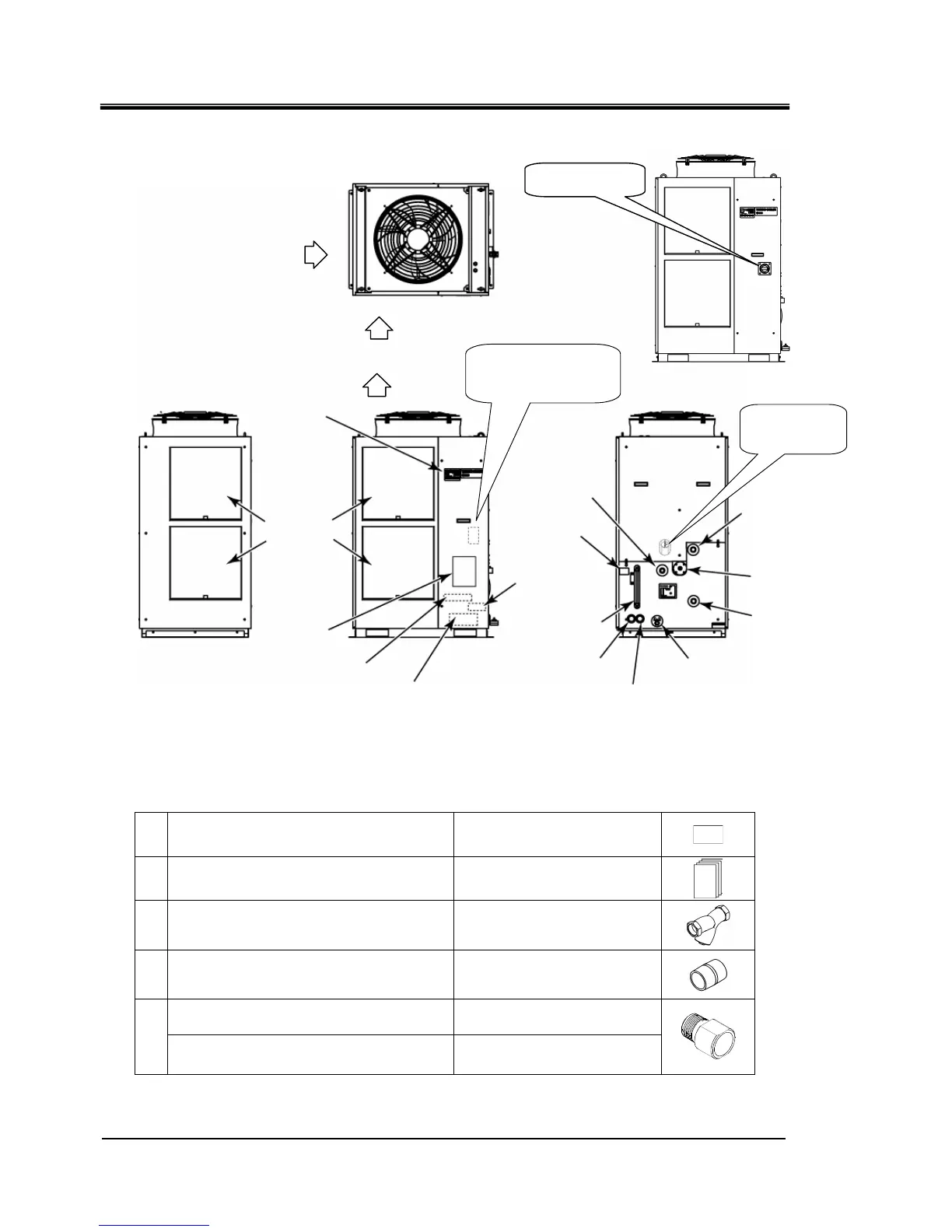

Fig. 2-2 Names of each part
Table 2-1 Accessory list
①
Alarm cord list label
2pc.
(English 1pc. /Japanese 1pc.)
②
Operation manual
2pc.
(English 1pc./Japanese 1pc.)
③
Y strainer (40meshes) 25A 1pc.
④
Barrel nipple 25A 1pc.
For HRSH∗∗∗-AF-∗∗
G thread adapter set (HRS-EP014)
1set
⑤
For HRSH∗∗∗-AN-∗∗
NPT thread adapter set (HRS-EP013)
1set
Circulating fluid
outlet port Rc1
Circulating fluid
return port Rc1
Automatic fluid
fill port Rc1/2
Overflow port
Rc1
Signal cable entry
(Grommet with membrane)
Tank drain port
Rc3/4 (closed by a
ball valve)
Power cable entry
(Grommet with membrane)
Product
label
Fluid level
gauge
Option K
[Fluid fill port]
Option B
[Earth leakage breaker]
Inside the panel
Dust-proof
filter
Power terminal
(Inside the panel)
Signal connectors
(
Inside the panel
)
Operation
display panel
Ventilation
air outlet
Ventilation air inlet
Ventilation air inlet
Accessories
(③, ④, (⑤))
Accessories
(①, ②)
In case of HRSH∗∗∗-A
∗
-40-
∗
Breaker handle
