Chapter 5 Display and setting of various functions
5.7 Ready completion (TEMP READY) signal HRSH Series
5-20

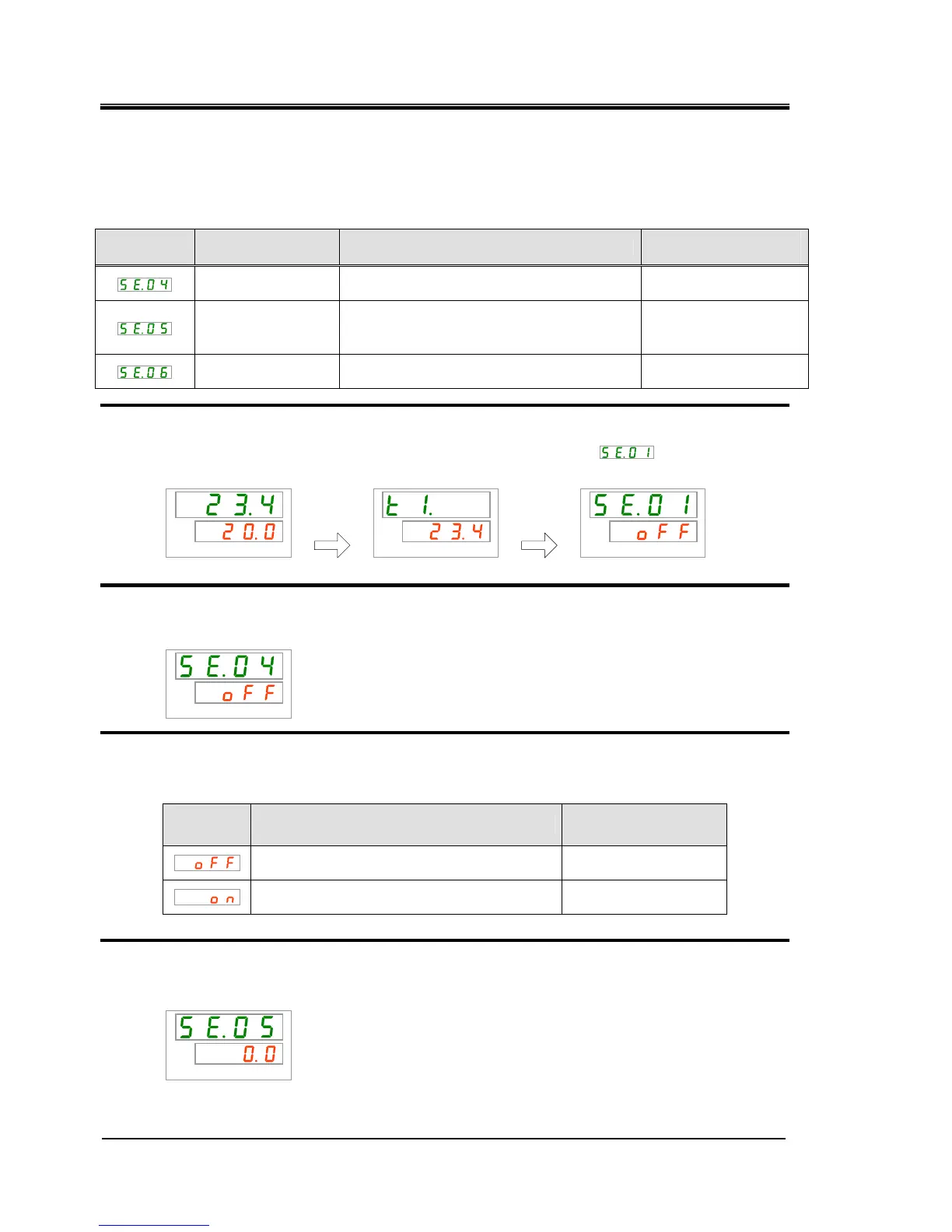

5.7.2 Ready completion (TEMP READY) signal setting / checking
The table below shows the explanation of and initial value of set items of
ready completion (TEMP. READY)signal
Table 5.7-1 List of set Signal for completion of preparation (TEMP READY)
Display Item Content
Initial value
(Default setting)
READY mode
Sets ready completion (TEMP READY)
signal
OFF
READY band width
(upper/lower
temperature range）
Sets temperature of ready completion
(TEMP READY) signal.
----
READY time
Sets time of ready completion (TEMP
READY) signal
----
1. Press and hold the [MENU] key for approx. 2 sec.
Repeat pressing the key until the setting screen for key-lock [
] appears on the
digital display.
PV
SV
PV
SV
PV
SV
READY mode Setting and checking
2. Press the [SEL] key 3 times.
The set screen of ready mode is displayed on the digital display.
PV
SV
3. Select ｢ON｣ from the table below with [▲] key or [▼] key, and confirm by pressing
“SEL”.
Table 5.7-2 List of set value
Set value Explanation
Initial
(Default setting)
ready completion (TEMP READY) signal is
OFF
○
ready completion (TEMP READY) signal is
ON
READY band width setting and checking
4. Press the [SEL] key once.
The set screen of READY band width (upper/lower temperature range) is displayed on
the digital display.
PV
SV
［MENU］
Press and
hold
［MENU］
Press and
hold
