SMC Networks HRSH200-A*-20 Series User Manual

HRX-OM-Q026-B
Chapter 5 Display and setting of various functions
5.20 Alarm customizing function HRSH Series
5-56

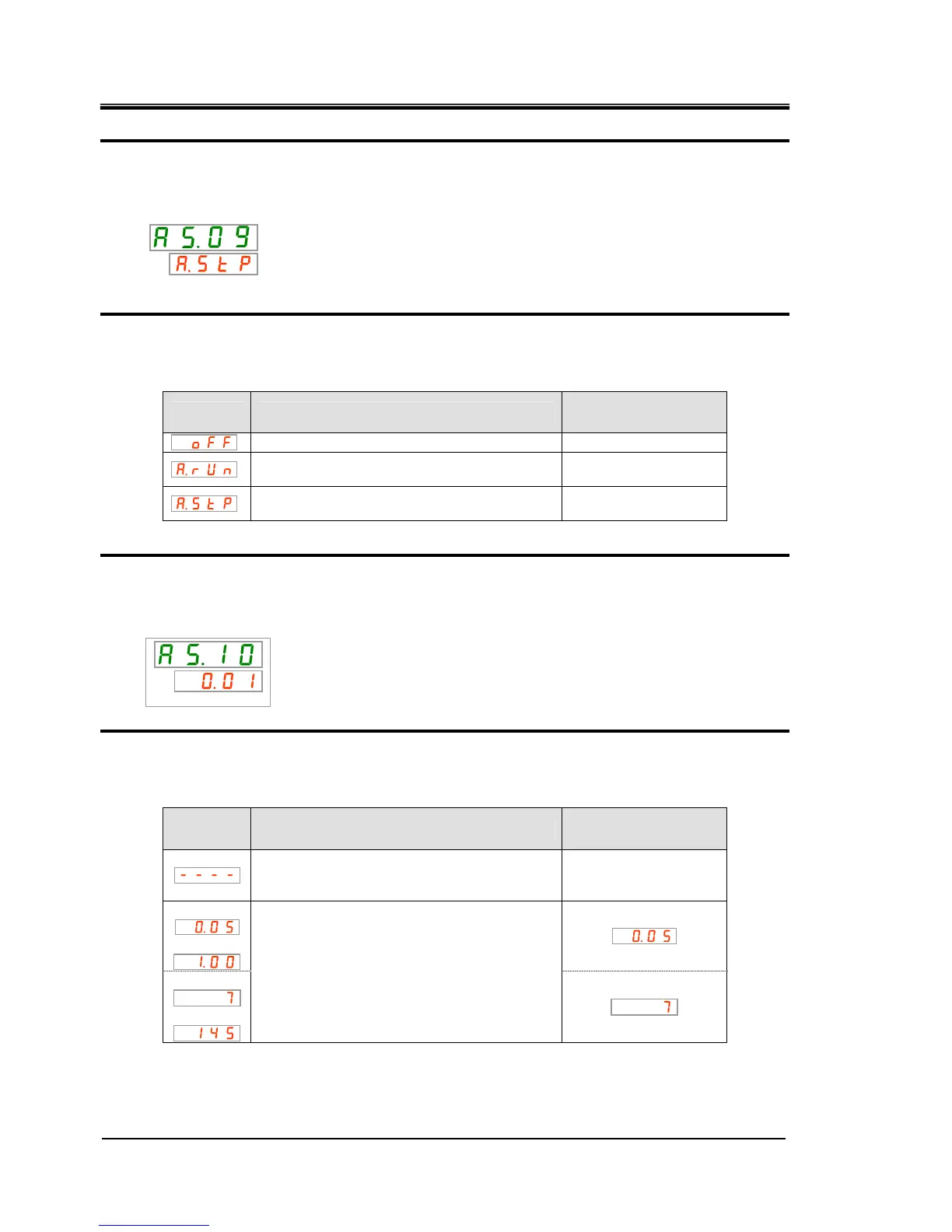

Changing of circulating fluid discharge pressure drop Setting and checking
16. Press the [SEL] key once.
The set screen of changing of circulating fluid discharge pressure drop is displayed on
the digital display.
PV
SV
17. Select changing of circulating fluid discharge pressure dro from the table below with [▲]
key or [▼] key, and confirm by pressing “SEL”.
Table 5.20-15 List of set value
Set value Explanation
Initial value
(Default setting)
This alarm signal is not detected.
Operation continues when this alarm signal is
generated.
Operation is stopped when this alarm signal is
generated.
○
Detection temperature for circulating fluid discharge pressure drop Setting and checking
18. Press the [SEL] key once.
The set screen of detection temperature for circulating fluid discharge pressure drop is
displayed on the digital display.
PV
SV
19. Select detection temperature for circulating fluid discharge pressure drop from the table
below with [▲] key or [▼] key, and confirm by pressing “SEL”.
Table 5.20-16 List of set value
Set value Explanation
Initial value
(Default setting)
Setting/checking are not available if the
setting of the circulating fluid discharge
temperature drop is OFF.
MPa
to
PSI
to
Sets detection temperature for circulating fluid
discharge pressure drop.
Pressure unit is MPa : Setting unit is 0.01MPa
Pressure unit is PSI : Setting unit is 1PSI
