Chapter 6 Alarm indication and trouble shooting
HRSH Series 6.3 Troubleshooting
6-9
4. Confirm if the fan breaker is tripped. If tripped, make it ON by pressing the black lever.

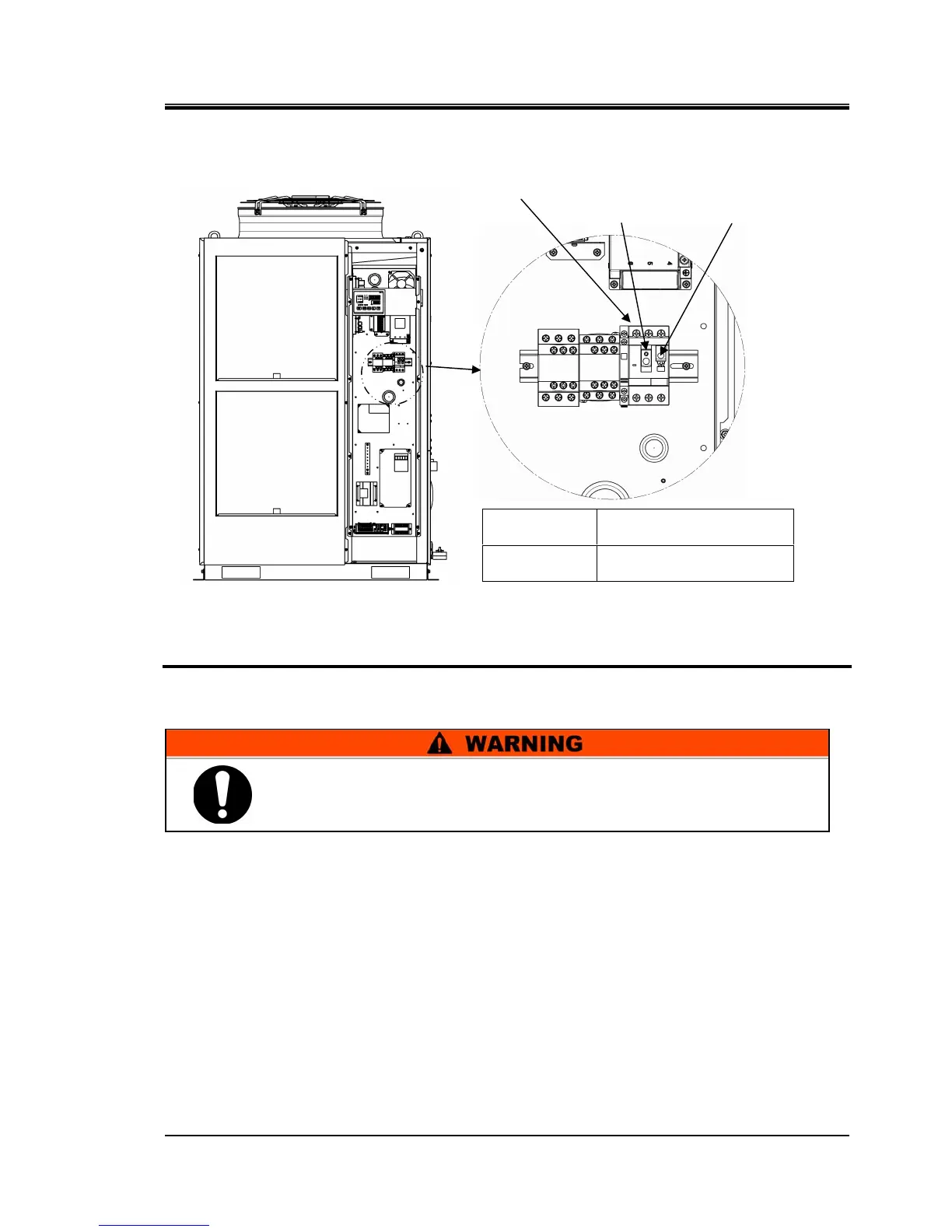

Fig. 6-3 Breaker location and statuses
5. Fasten the front cover of the electrical unit.
Be sure to fasten the front panel of the electrical unit before turn on
the breaker of the facility power supply (customer power supply
facility). Othewise it may cause an electrical shock and death.
Fan breaker
Red lever
Black lever
Status of
tripping
Red lever: Sinking
Black lever: Sticking out
Status of ON
Red lever: Sticking out
Black lever: Sinking
