Chapter 3 Transport and Setting Up
3.4 Piping HRSH Series
3-26
 Recommended piping circuit
Thermo chiller
Automatic flui-fill port
Circulationg fluid outlet port
Circulating fluid return port
Overflow port
Drain port
To sump pit
Fluid supply
Customer's
system
1
2
2
2
1
2
4
3
5

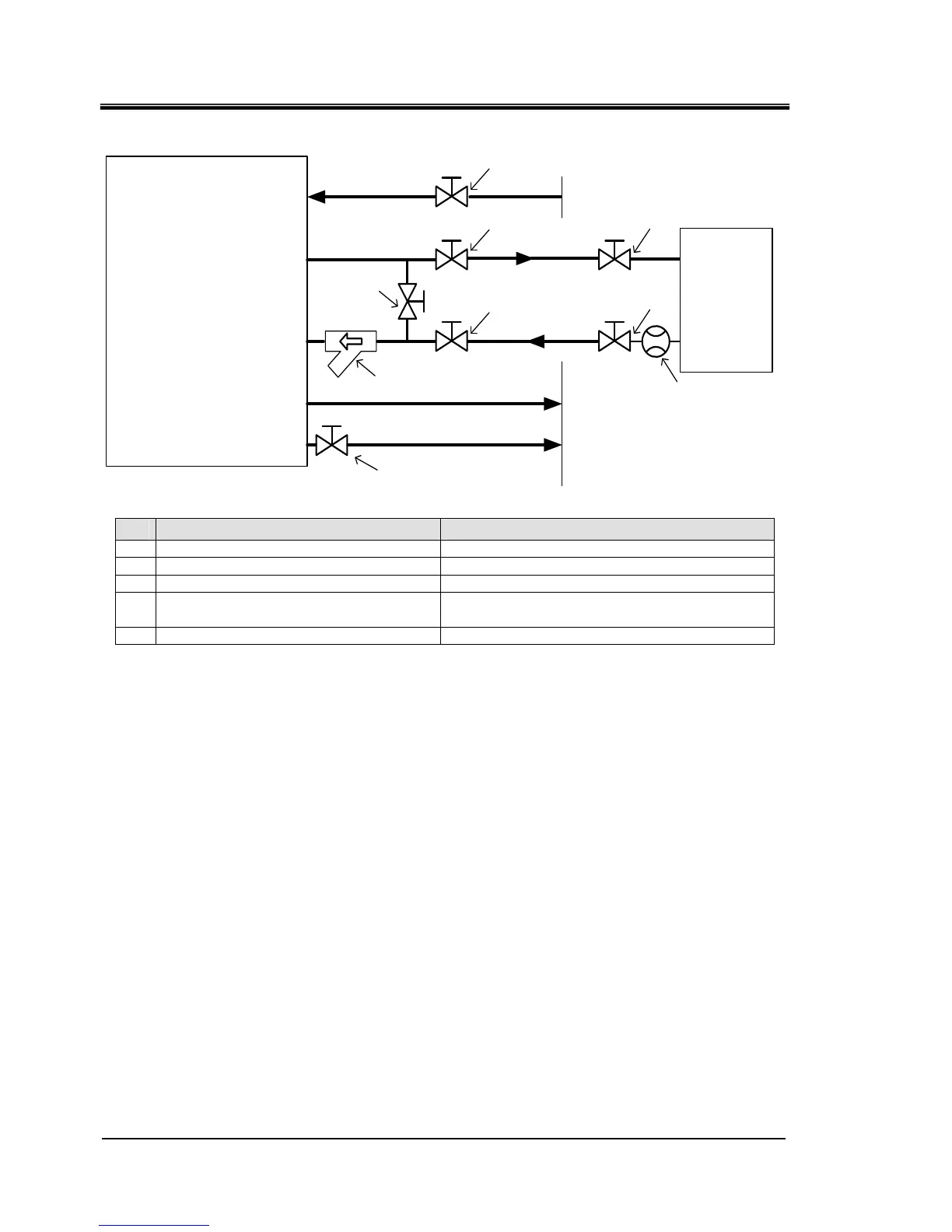

Fig. 3-16 Recommended piping circuit
No. Name Size
1 Valve Rc1/2
2 Valve Rc1
3 Y strainer 25A (40meches) (Accessury) Rc1
4 Flowmeter
Prepare a flowmeter that has an appropriate flow
rate range.
5 Valve (Part of thermo chiller) Rc3/4
