Chapter 3 Transport and Setting Up
3.5 Fill of circulating fluid HRSH Series
3-30
3. Fill the circulating fluid from the fluid fill port.
Please fill the circulating fluid between “HIGH” and “LOW” level of the fluid level gauge.

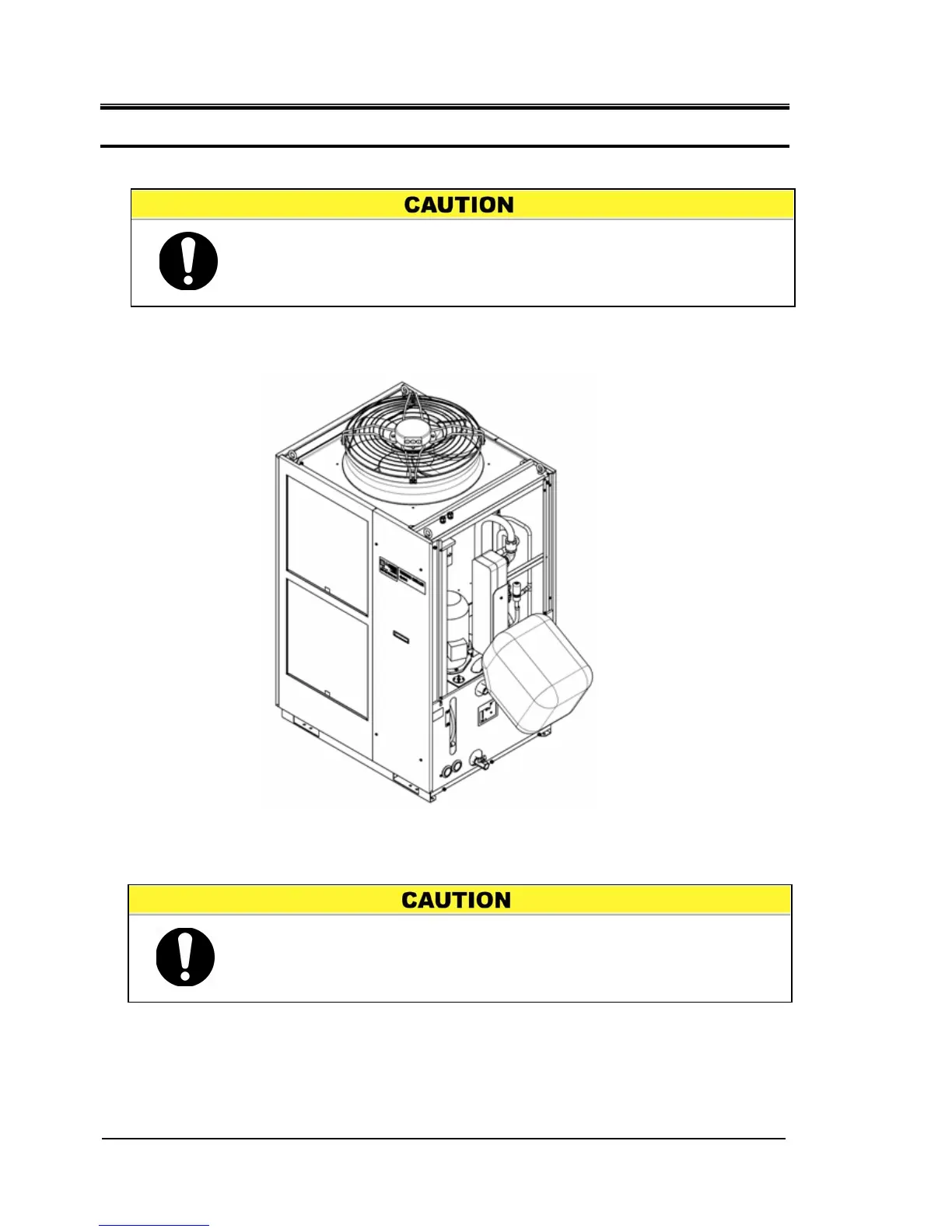

Fig. 3-21 Filling the fluid to the fluid fill port (An example)
z Check the drain port is closed by the valve to prevent the supplied
circulating fluid from draining out.
z Confirm that the fluid level is between “HIGH” and “LOW” level of the
fluid level gauge.
z Be sure to connect the piping from the overflow port to the sump pit
to drain the excessive amount of the fluid from the tank.
