Chapter 5 Display and setting of various functions
5.4 Inspection monitor menu HRSH Series
5-10

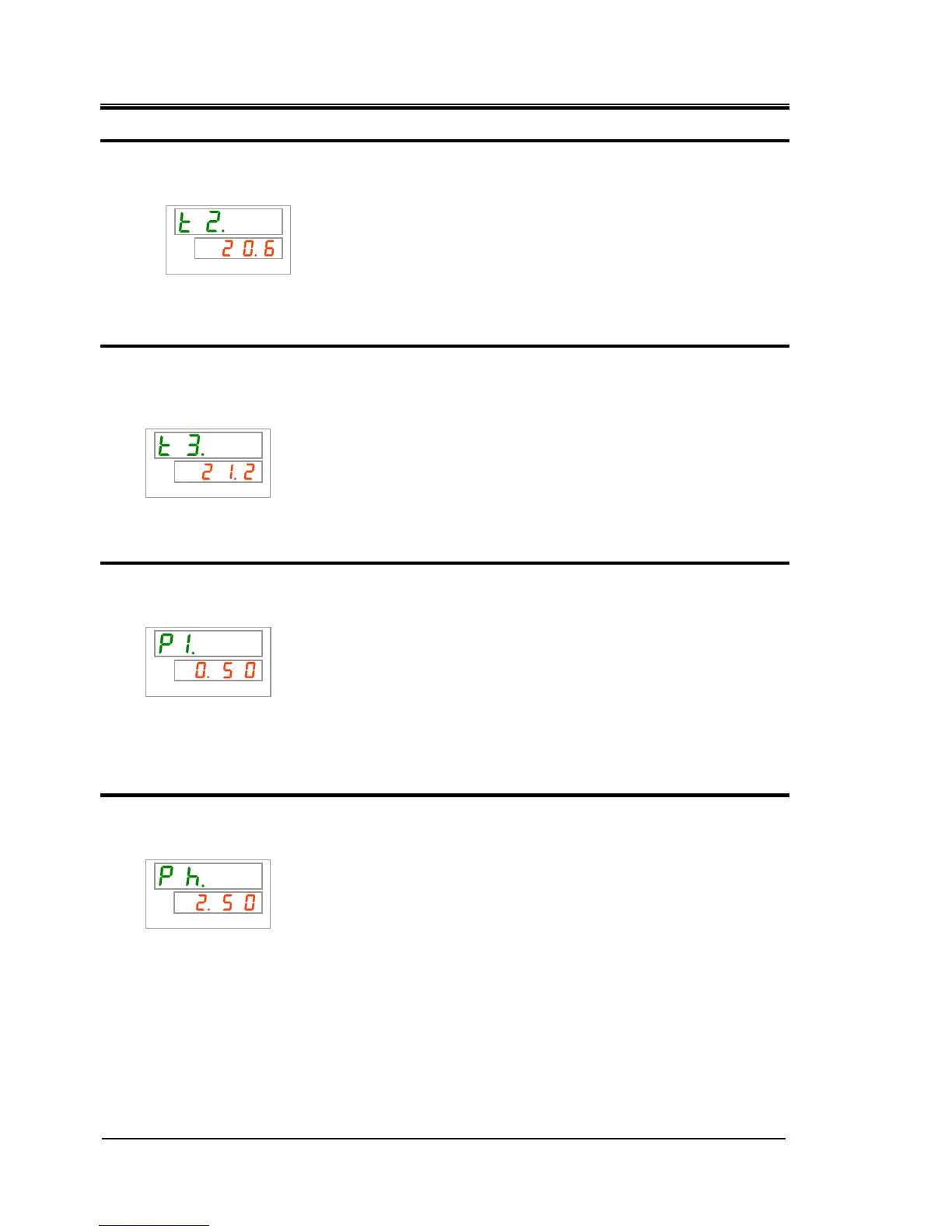

Check of the circulating fluid inlet temperature
2. Press the [SEL] key once.
The temperature of the circulating fluid return is displayed on the digital display.
PV
SV
Displays the temperature of the circulating fluid returning from the customer’s device.
Check of the temperature of the inlet of the compressor.
3. Press the [SEL] key once.
The temperature of the refrigerant circuit compressor inlet is displayed on the digital
display.
PV
SV
Displays the temperature of the compressor inlet.
Check of the circulating fluid outlet pressure
4. Press the [SEL] key once.
The circulating fluid outlet pressure is displayed on the digital display.
PV
SV
The pressure of the circulating fluid outlet from which the fluid is sent to the customer’s
device is displayed.
Check of the pressure of the higher pressure side of the refrigerant circuit
5. Press the [SEL] key once.
The pressure of higher pressure refrigerant circuit is displayed on the digital display.
PV
SV
Displays the pressure of the higher pressure side of the refrigerant circuit.
