Chapter 5 Display and setting of various functions
HRSH Series 0
5-39
5. Select the circulating fluid outlet pressure from the table below with [▲] key or [▼] key,
and confirm by pressing “SEL”.

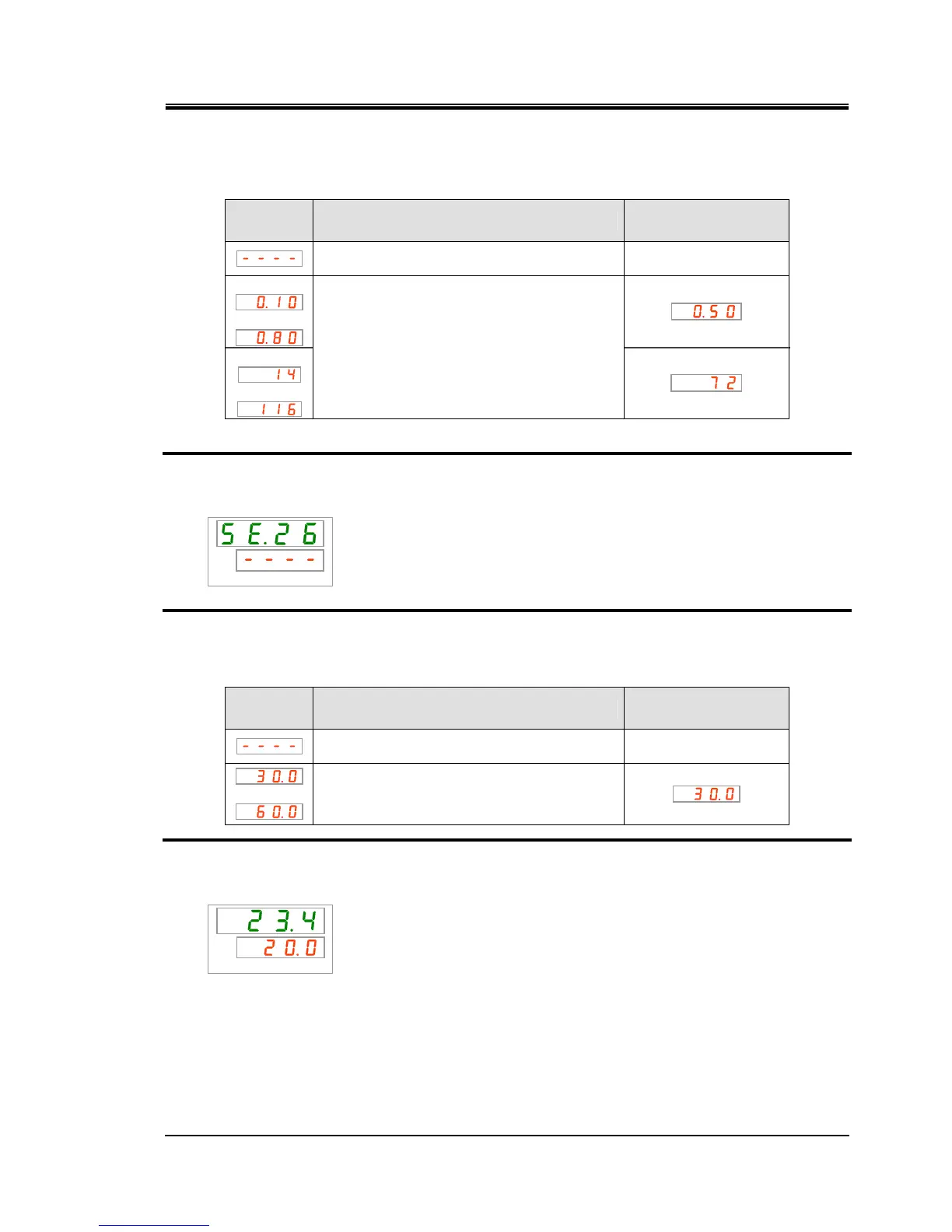

Table 5.16-3 List of set value
Set value Explanation
Initial value
(Default setting)
Setting/checking are not available when the
frequancy set mode is selected.
MPa
to
PSI
to
Set the circulating fluid pressure.
Pressure unit is MPa: Setting unit is 0.1MPa
Pressure unit is PSI: Setting unit is 1PSI
Pump operation frequency
6. Press the [SEL] key once.
The set screen of pump operation frequency is displayed on the digital display.
PV
SV
7. Select the pump operation frequency from the table below with [▲] key or [▼] key, and
confirm by pressing “SEL”.
Table 5.16-4 List of set value
Set value Explanation
Initial value
(Default setting)
Setting/checking are not available when the
pressure controlled mode is selected..
to
Set the pump operation frequency.
Increment: 0.1Hz
8. Press the [MENU] key once.
Return to the main screen (screen displaying the circulating fluid temperature).
PV
SV
