-13-
No.PF※※-OMW0007-A

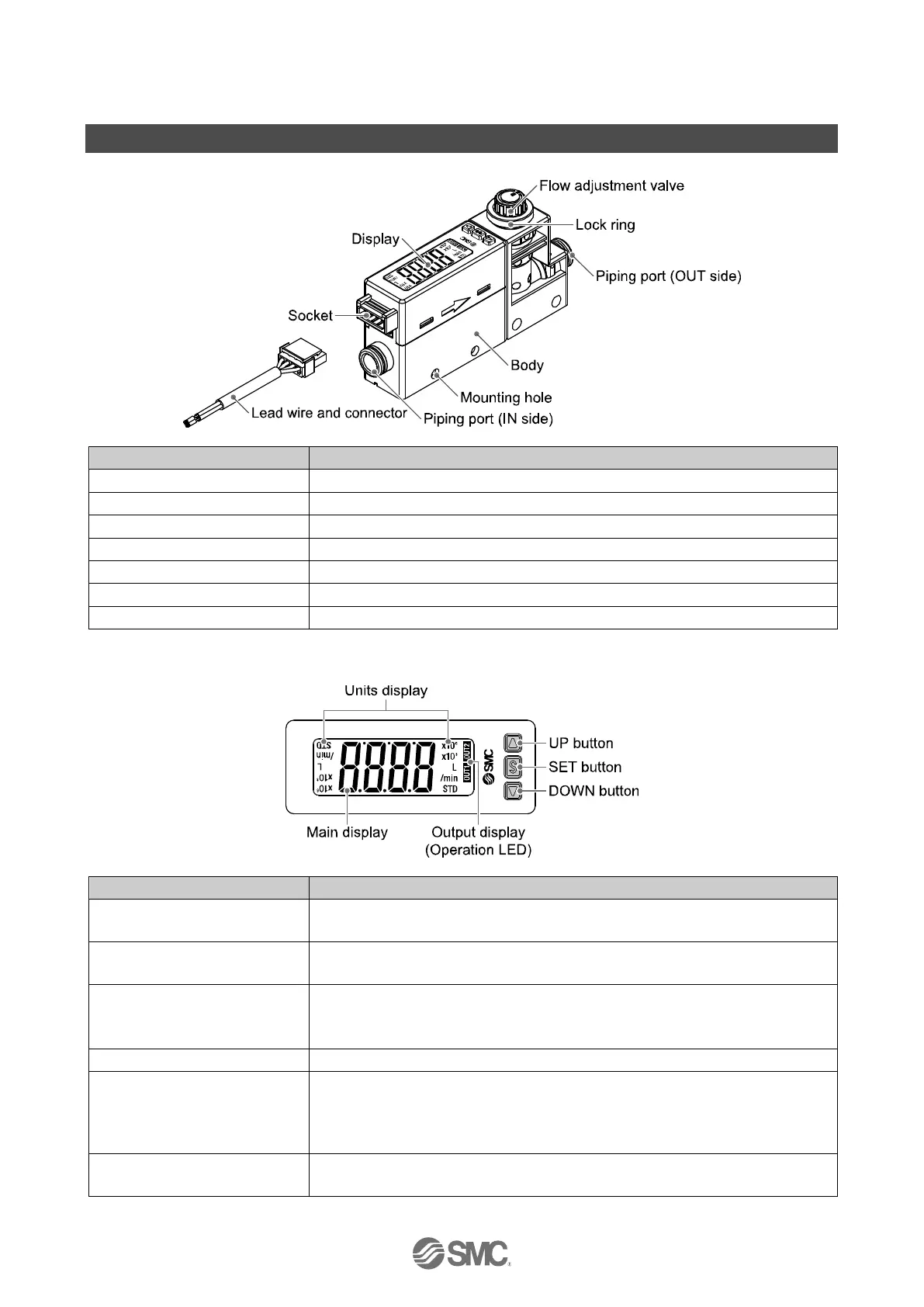

Summary of Product parts
Body
Item
Description
Socket
Socket for electrical connections.
Piping port
Connected to the fluid inlet at IN side and to the fluid outlet at OUT side.
Flow adjustment valve

Orifice mechanism to adjust the flow.
Lock ring

Used to lock the flow adjustment valve.
Mounting hole
Used to mount the product on a DIN rail or directly to a panel.
Body
The body of the product.
Lead wire and connector
Lead wire to supply power and transmit output signals.
: The table shows the specifications when a flow adjusting valve is included.
Display
Item
Description
UP
button

Selects the mode or increases the ON/OFF set value.
Press this button to change to the peak display mode.
DOWN button

Selects the mode or decreases the ON/OFF set value.
Press this button to change to the bottom display mode.
Main display
Displays the flow value, setting mode, and error indication.
Four display modes can be selected: display always in red or green, or display
changing from green to red, or red to green, according to the output status (OUT1).
SET button
Press this button to change to another mode and to set a value.
Output display (Operation LED)
Displays the output status of OUT1 and OUT2.
OUT1: LED is ON (Orange) when the output is ON.
OUT1: LED is ON (Orange) when the output is ON.
When the accumulated pulse output mode is selected, the output display is OFF.
Units display
Arbitrary units is ON based on the flow display setting (instantaneous or
accumulated flow)
: If the reversed display has been selected, the UP and DOWN button function will be reversed.
