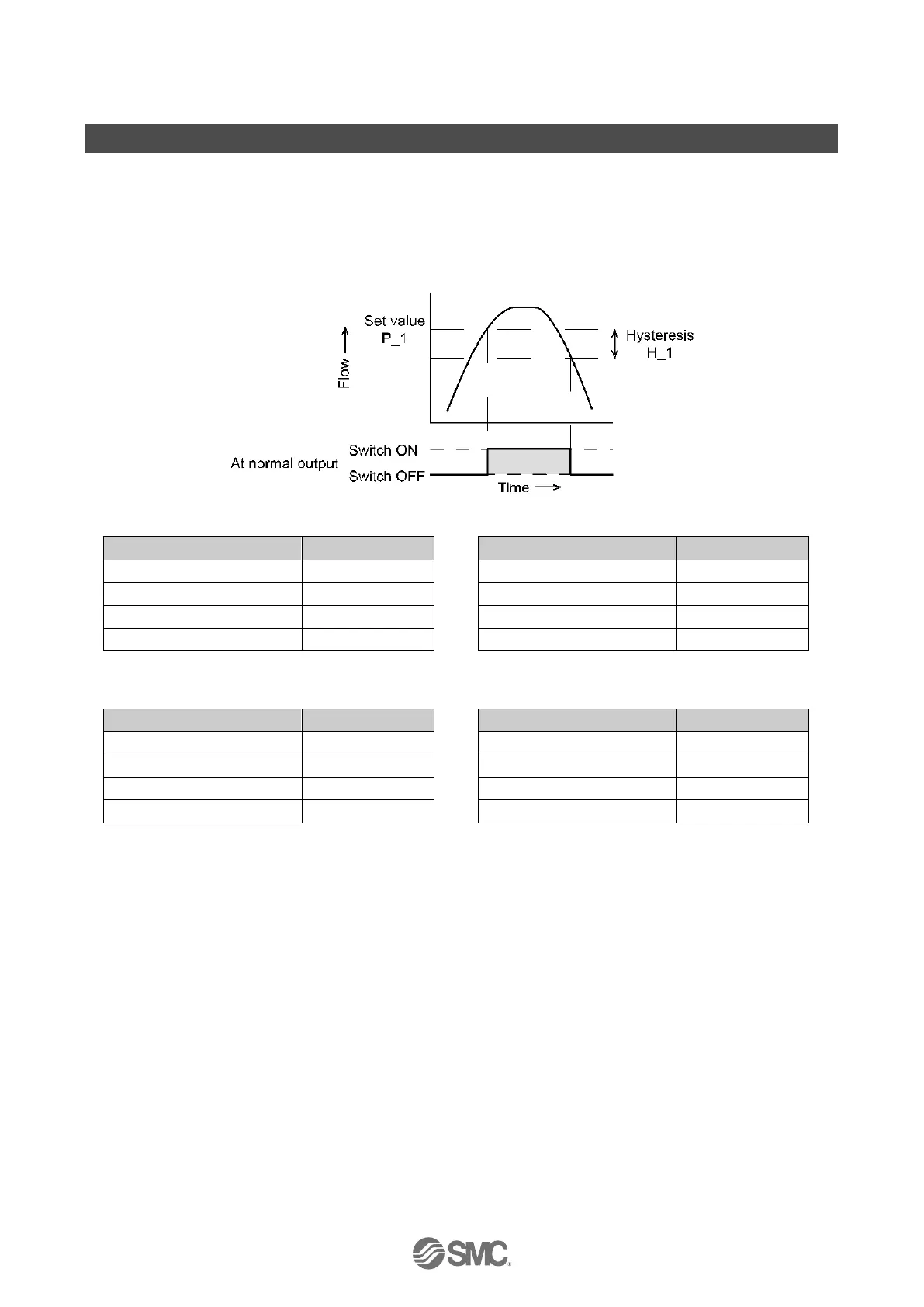

Flow Setting
Switch operation
When the flow exceeds the set value, the switch will turn ON.
When the flow falls below the set value by the amount of hysteresis or more, the switch will turn OFF.
The default setting is to turn on the flow switch when the flow reaches the center of the upper limit of the rated
flow range.
If this condition, shown to the below, is acceptable, then keep these settings.
●PF2M710
Item
Default Settings
[P_1] Set value of OUT1
5.00 L/min
[H_1] Hysteresis of OUT1
0.50 L/min
[P_2] Set value of OUT2

5.00 L/min
[H_2] Hysteresis of OUT2

0.50 L/min
●PF2M725
Item
Default Settings
[P_1] Set value of OUT1
12.5 L/min
[H_1] Hysteresis of OUT1
1.3 L/min
[P_2] Set value of OUT2

12.5 L/min
[H_2] Hysteresis of OUT2

1.3 L/min
●PF2M750
Item
Default Settings
[P_1] Set value of OUT1
25.0 L/min
[H_1] Hysteresis of OUT1
2.5 L/min
[P_2] Set value of OUT2

25.0 L/min
[H_2] Hysteresis of OUT2

2.5 L/min
●PF2M711
Item
Default Settings
[P_1] Set value of OUT1
50.0 L/min
[H_1] Hysteresis of OUT1
5.0 L/min
[P_2] Set value of OUT2

50.0 L/min
[H_2] Hysteresis of OUT2

5.0 L/min
: Only available for models with switch outputs for both OUT1 and OUT2
: For hysteresis, please refer to [F 1] Setting of OUT1 (page 29), [F 2] Setting of OUT2 (page 34).
