-55-
No.PF※※-OMW0007-A

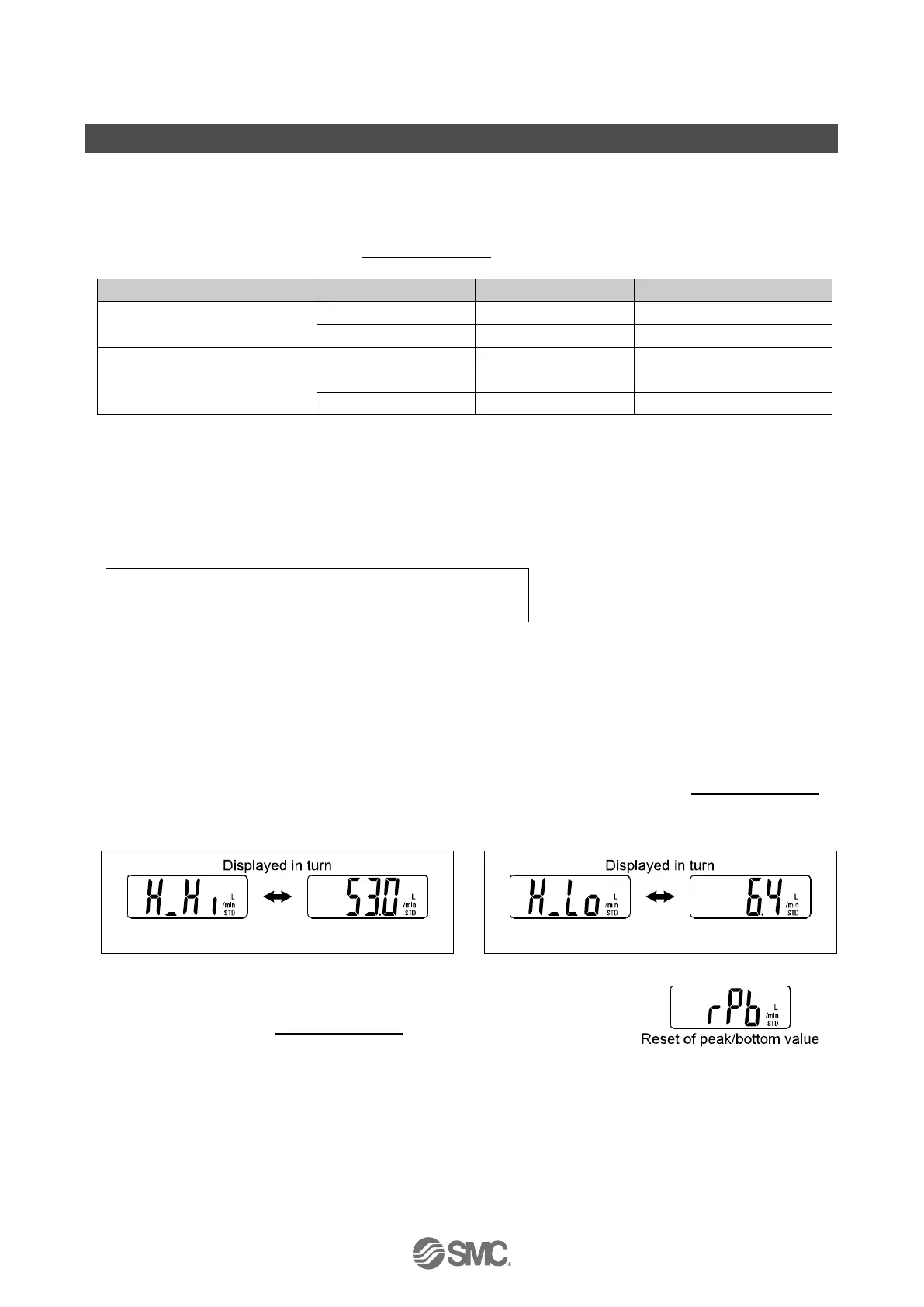

Other Settings
●Snap shot function
The current flow value can be stored to the switch output ON/OFF set point.
When the threshold values have been selected from the table below during the setting of [F 1] OUT1 and [F
2] OUT2, in Simple setting mode or function selection mode, [---] is displayed when the UP and DOWN
button are pressed simultaneously for 1 second or longer and the value according to the current flow rate is
displayed automatically.
P1L (n1L), P1H (n1H)
P2L (n2L), P2H (n2H)
•OUT1set value and OUT2 set value
The value is set to the same value as the flow value (current flow value).
(There is a range which cannot be set to the current flow depending on the hysteresis. In that case, the
value is set to the closest value.)
•Hysteresis
The hysteresis is calculated from the equation below and set.
Normal output: (OUT1 (2) set value) - (current flow value)
Reverse output: (current flow value) - (OUT1 (2) set value)
If the calculation result becomes 0 or less, [Err] is displayed on the display and the set value is not
changed.
Afterwards, it is possible to adjust the value by pressing the UP or DOWN button.
●Peak/bottom value indication
The maximum (minimum) flow when the power is supplied is detected and updated.
In peak/bottom indication mode, the current flow is displayed.
Current peak (bottom) value will be displayed by pressing the UP or DOWN button for 1 second or longer
during measurement mode.
Peak/ Bottom value is cleared if the power supply is disconnected.
Current peak (bottom) value will be cleared by pressing the UP and DOWN
simultaneously button for 1 second or longer while peak/bottom value is
displayed.
