■[F22] Analogue output and analogue free span function setting
This function is available when the model includes the analogue output.
Change the analogue output set value and analogue free span.
<Operation>
Press the UP or DOWN button in function selection mode to display [F22].
Press the SET button. Move on to the setting of analogue output.
: Only 4 to -20 mA is available for current output. The display will be [---] and not settable.
Press the SET button to set. Move on to the setting of analogue free span.

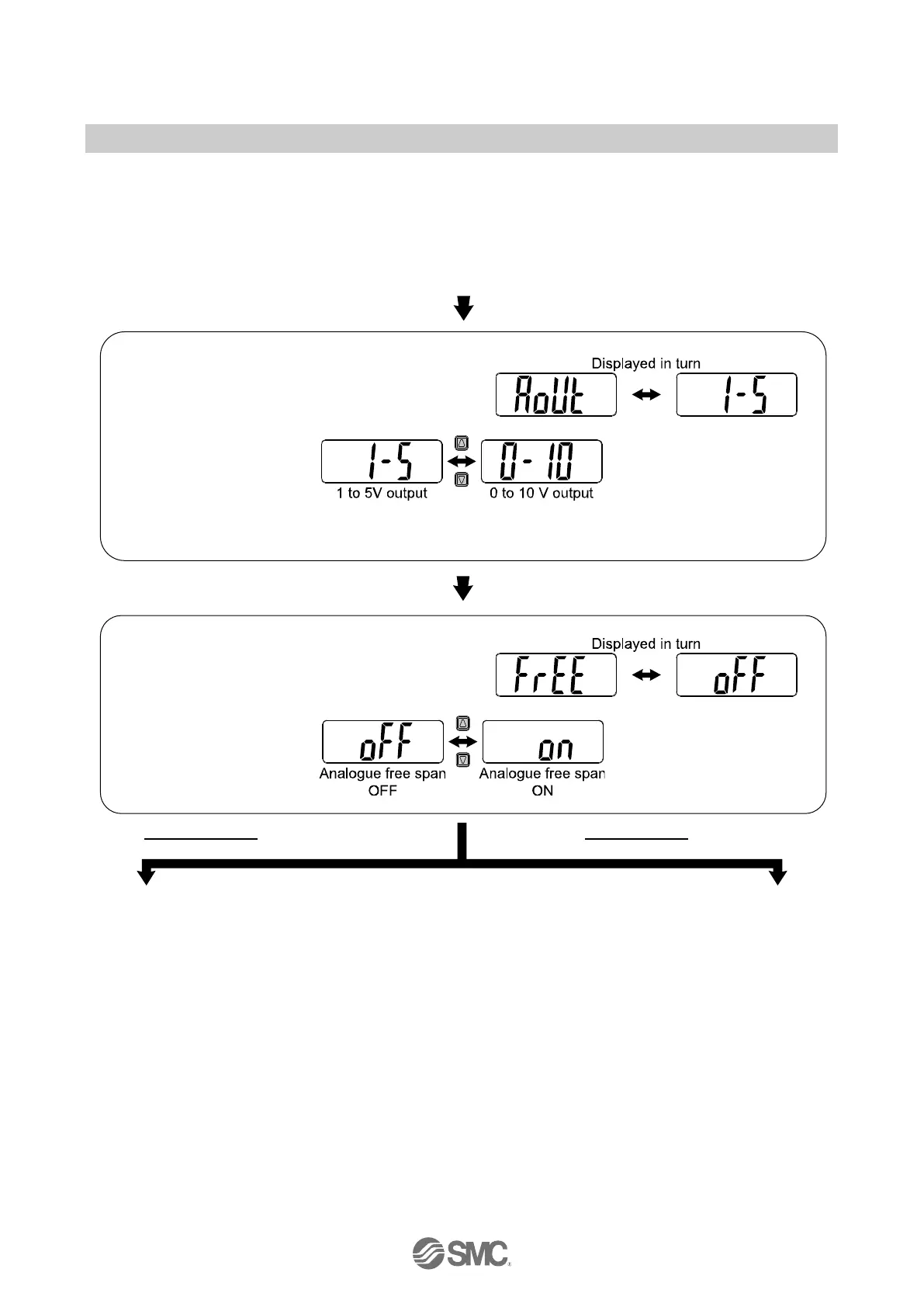

Setting of analogue output (only voltage output)
Press the UP or DOWN button to select 1 to 5 V
output or 0 to 10 V output.
Setting of analogue free span
Press the UP or DOWN button to select analogue
free span function.
[oFF] is selected
Press the SET button to set.
[on] is selected
Press the SET button to set.
