Simple Setting Mode
<Operation>

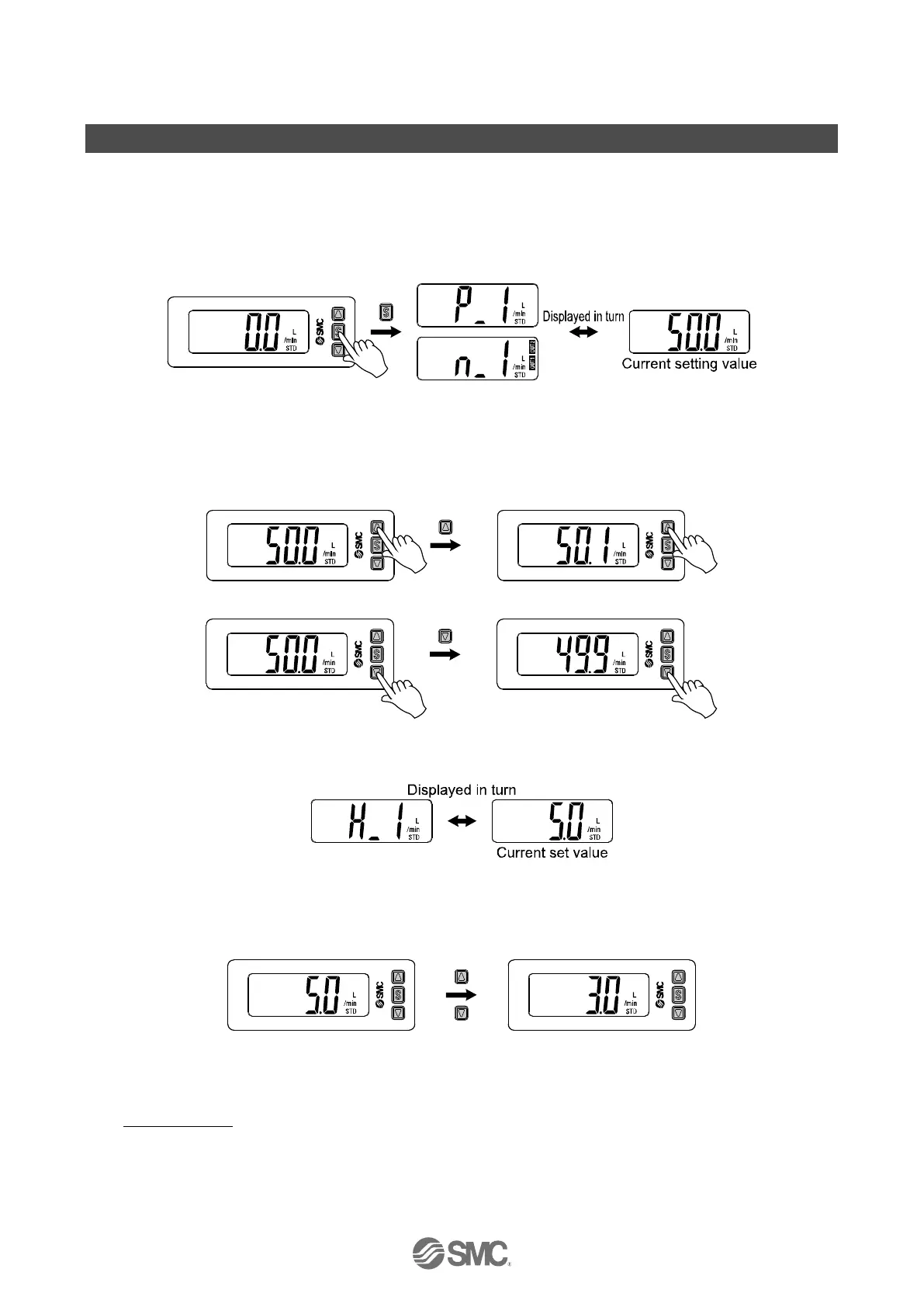

[Simple setting mode (Hysteresis mode)]
In the Simple setting mode, the set value and hysteresis can be changed.
(1) Press the SET button once in measurement mode.
[P_1] or [n_1] and the [current set value] are displayed alternately.
(2) Change the set value using the UP or DOWN button, and press the SET button to set the value. Then,
the setting moves to hysteresis setting.
(The snap shot function can be used. (Refer to page 55))
•Press the UP button continuously to keep increasing the set value.
•Press the DOWN button continuously to keep decreasing the set value.
(3) [H_1] and the current set value are displayed in turn.
(4) Change the hysteresis by pressing the UP or DOWN button and press the SET button. Setting is
completed and the product returns to measurement mode.
(The snap shot function can be used. (Refer to page 55))
: For models with switch outputs for both OUT1 and OUT2, [P_2] or [n_2] will be displayed.
These are set simultaneously.
: After enabling the setting by pressing the SET button, it is possible to return to measurement mode by pressing the SET button for
2 seconds or longer.
: When hysteresis mode is not used, "Input set value” (page 46) is displayed.
: The set value and hysteresis settings limit each other.
: For more detailed setting, set each function in function selection mode (page 25).
