■[F 2] Setting of OUT2
Set output method of OUT2.
 When the product without OUT2 (switch output) is used, [---] will be displayed and this function cannot be set.
<Operation>
Press the UP or DOWN button in function selection mode to display [F 2].
Press the SET button. Move on to output mode setting.
Press the SET button to set.

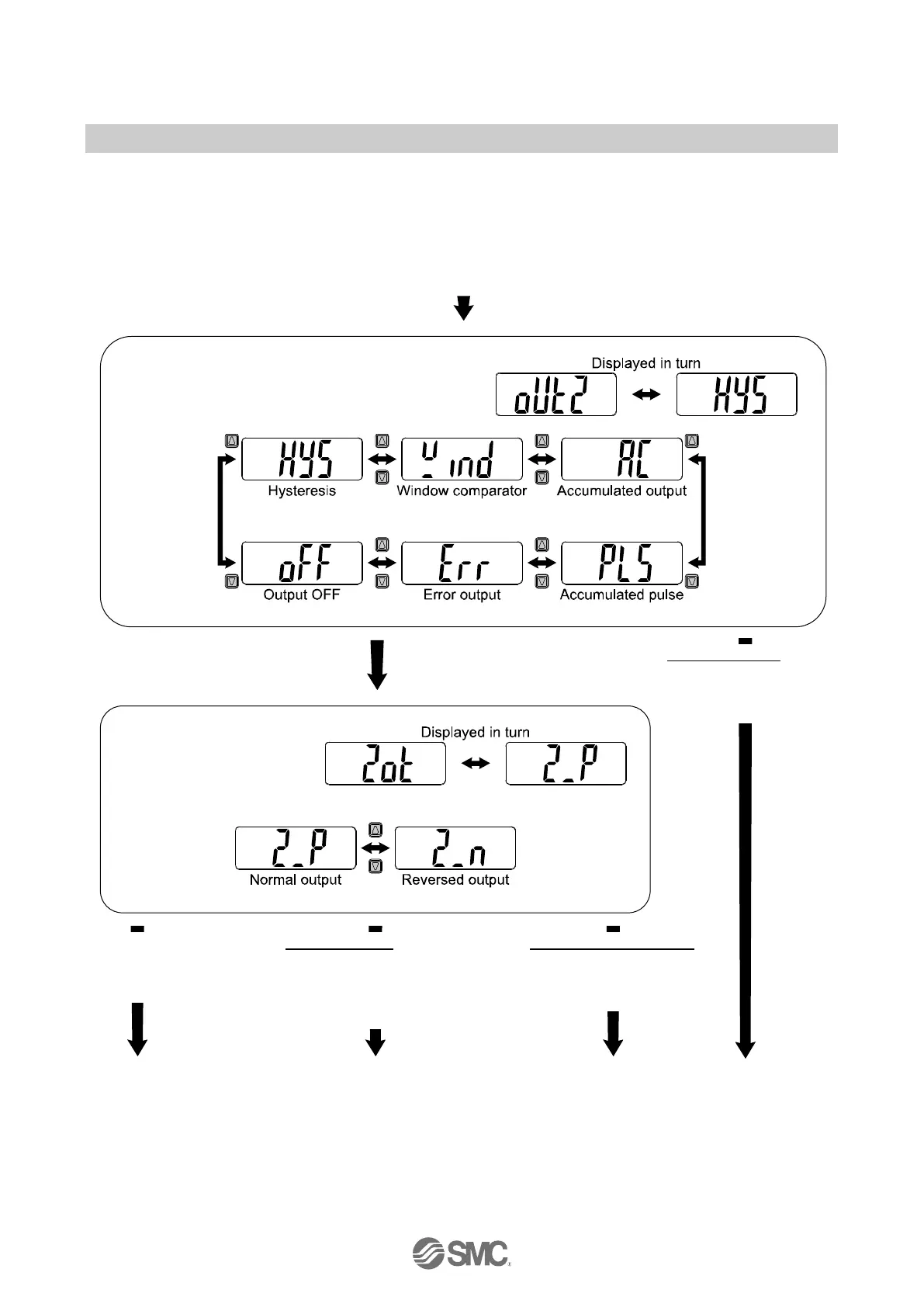

Output mode setting
Press the UP or DOWN button to select
the output mode.
Output type setting
Select reversed output
by pressing the UP or
DOWN button.
[PLS], [Err] are selected
Press the SET button
to move on to display
colour setting.
Move on to the output type
setting.
[oFF] is selected
Press the SET button
to move on to display
colour setting.
Press the SET
button to
move on to
flow setting.
[AC] is selected
Press the SET button to
select the display for
count-up (addition) and
count-down (decrement).
