-33-

No.PF※※-OMW0007-A

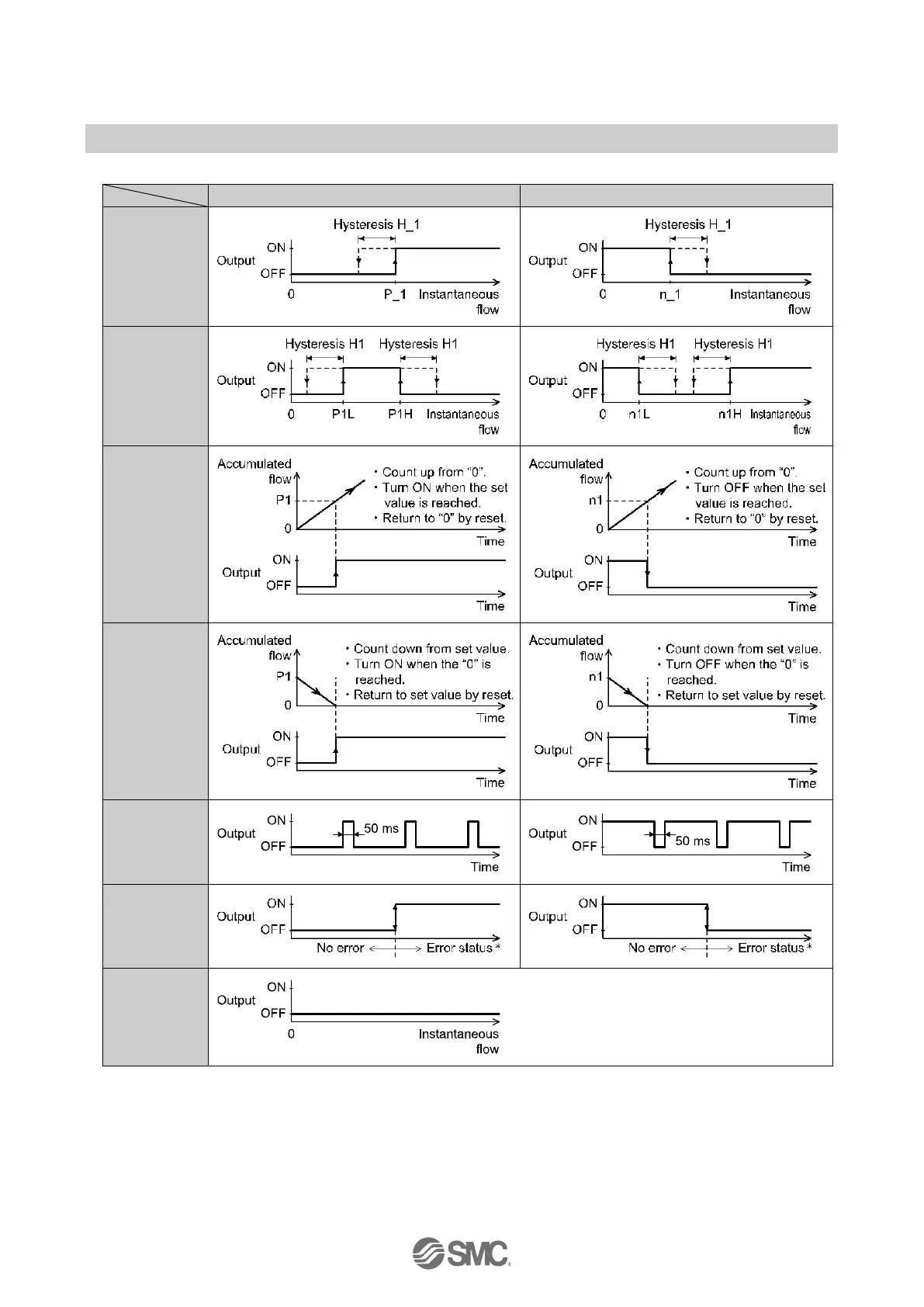

●List of output modes

Normal output

Reversed output

Hysteresis

mode

Window

comparator

mode

Accumulated

output mode

(Addition)

Accumulated

output mode

(Decrement)

Accumulated

pulse output

mode

Error output

mode

OFF mode

1: The applicable errors are Er1, 2, 6, 8 and 40,

: The chart above shows the OUT1 operation. For OUT2, all "1" in the chart will be changed to "2". (example P_1→P_2)

If the point at which the switch output changes is outside of the set pressure range due to the selection of

normal or reversed output, the hysteresis value is automatically adjusted.
