Outline of Settings
Power is supplied.
The product code is displayed for approximately 3 sec. after power is supplied.
Then, measurement mode will be displayed.
: After moving on to the measurement mode, the switch operation will start.

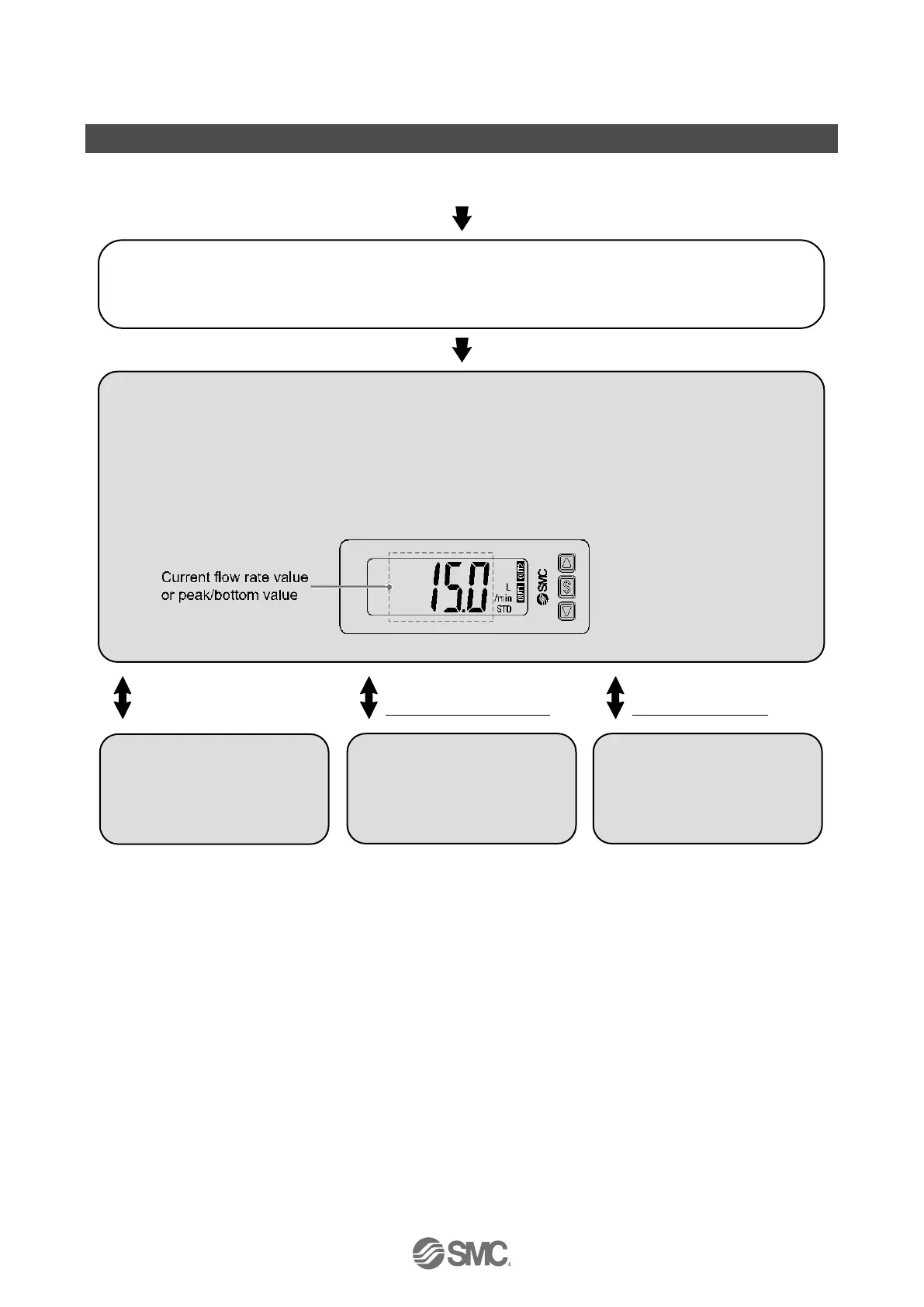

[Measurement mode]
Measurement mode is the condition where the flow is detected and displayed, and the
switch function is operating.
This is the basic mode; other modes should be selected for set-point changes and other
function settings.
Measurement mode screen
Press the SET button
once.
Press the SET button
between 2 to 5 seconds.
Press the SET button for
5 seconds or longer.
Change of Set Flow and
Hysteresis
(Simple setting mode)
(Refer to page 24)
Change the Function
Settings
(Function selection mode)
(Refer to page 25)
Other Settings
•Key-lock
(Refer to page 57)
: The outputs will continue to operate during setting.
: Simple setting mode and function selection mode settings are reflected each other.
