SMC Networks PF2M7 Series

-21-
No.PF※※-OMW0007-A

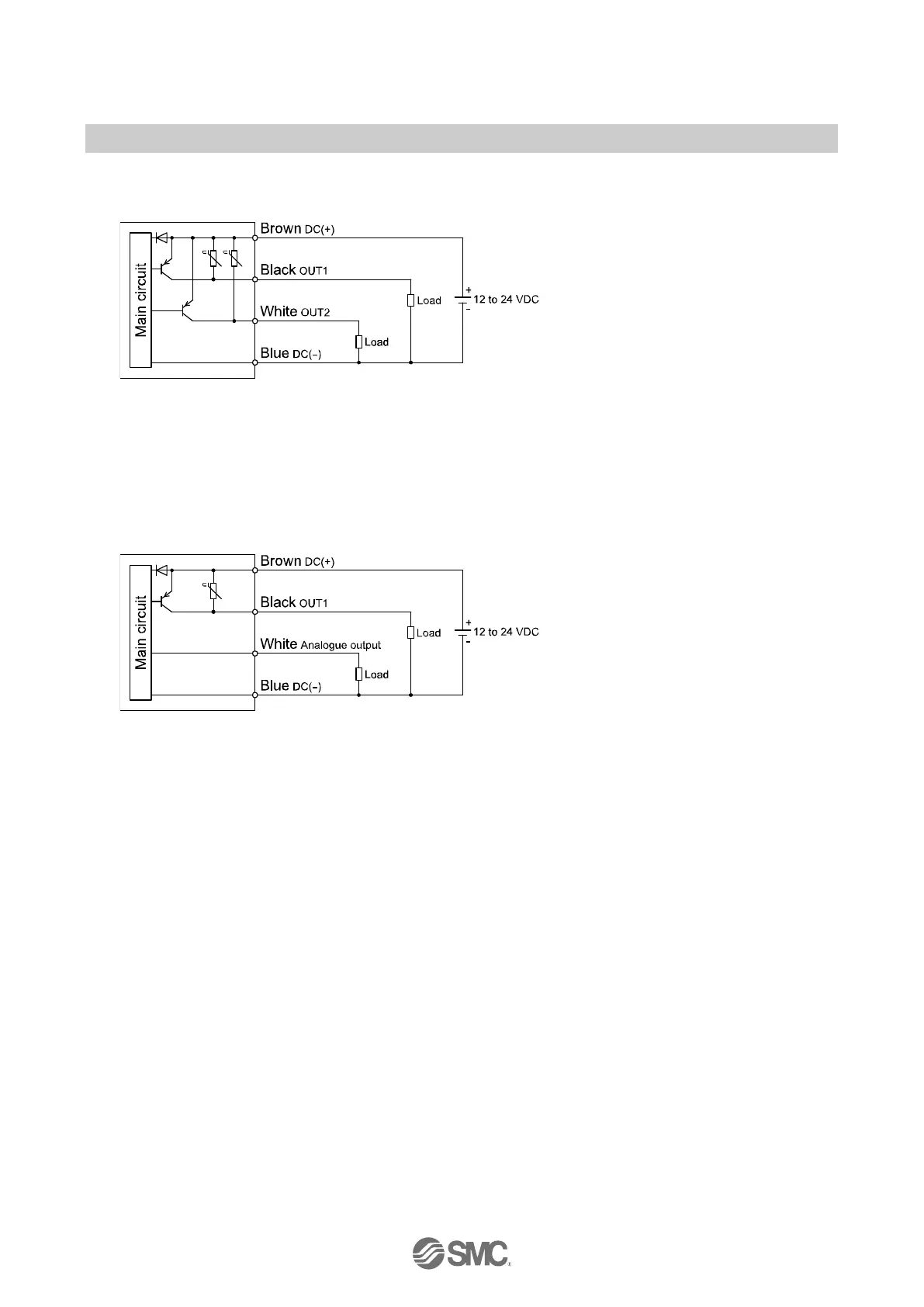

PNP (2 outputs) type
PF2M7##-#-B#-###
Max. 80 mA
Internal voltage drop: 1.5 V or less
PNP (1 output) + Analogue (1 to 5 V/0 to 10 V) output type
PF2M7##-#-E#-###
PNP (1 output) + Analogue (4 to 20 mA) output type
PF2M7##-#-F#-###
Max. 80mA
Internal voltage drop: 1.5 V or less
E: Analogue output: 1 to 5 V/0 to 10 V
Output impedance: 1 kΩ
F: Analogue output: 4 to 20 mA
Max. load impedance: 600 Ω
Min. load impedance: 50 Ω
