SMC Networks PF2M7 Series User Manual

-20-
No.PF※※-OMW0007-A

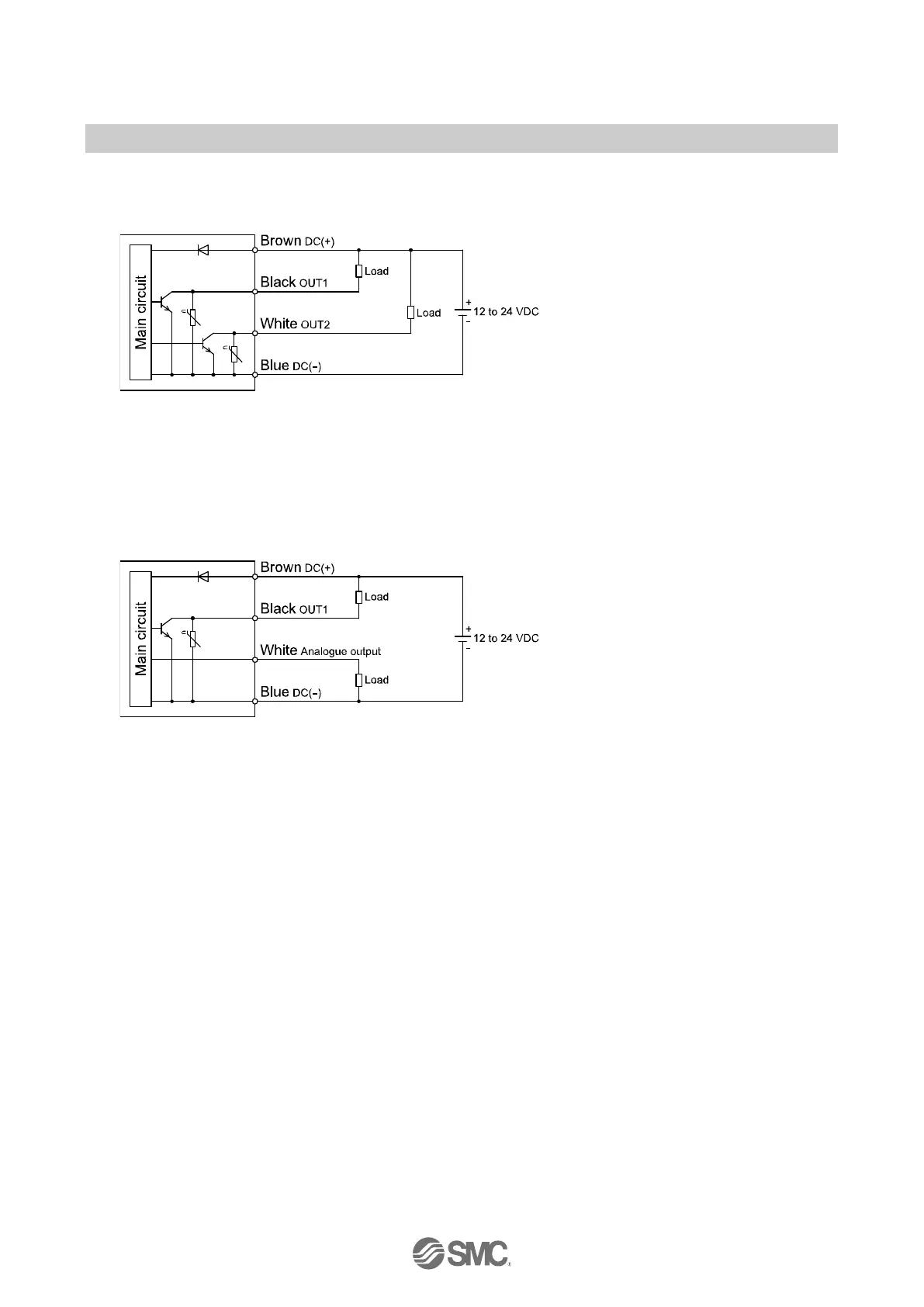

Internal circuit and wiring example
NPN (2 outputs) type
PF2M7##-#-A#-###
Max. 28 V, 80 mA
Internal voltage drop: 1 V or less
NPN (1 output) + Analogue (1 to 5 V/0 to 10 V) output type
PF2M7##-#-C#-###
NPN (1 output) + Analogue (4 to 20 mA) output type
PF2M7##-#-D#-###
Max. 28 V, 80 mA
Internal voltage drop: 1 V or less
C: Analogue output: 1 to 5 V/0 to 10 V
Output impedance: 1 kΩ
D: Analogue output: 4 to 20 mA
Max. load impedance: 600 Ω
Min. load impedance: 50 Ω
