SMC Networks PF2M7 Series User Manual

-72-
No.PF※※-OMW0007-A

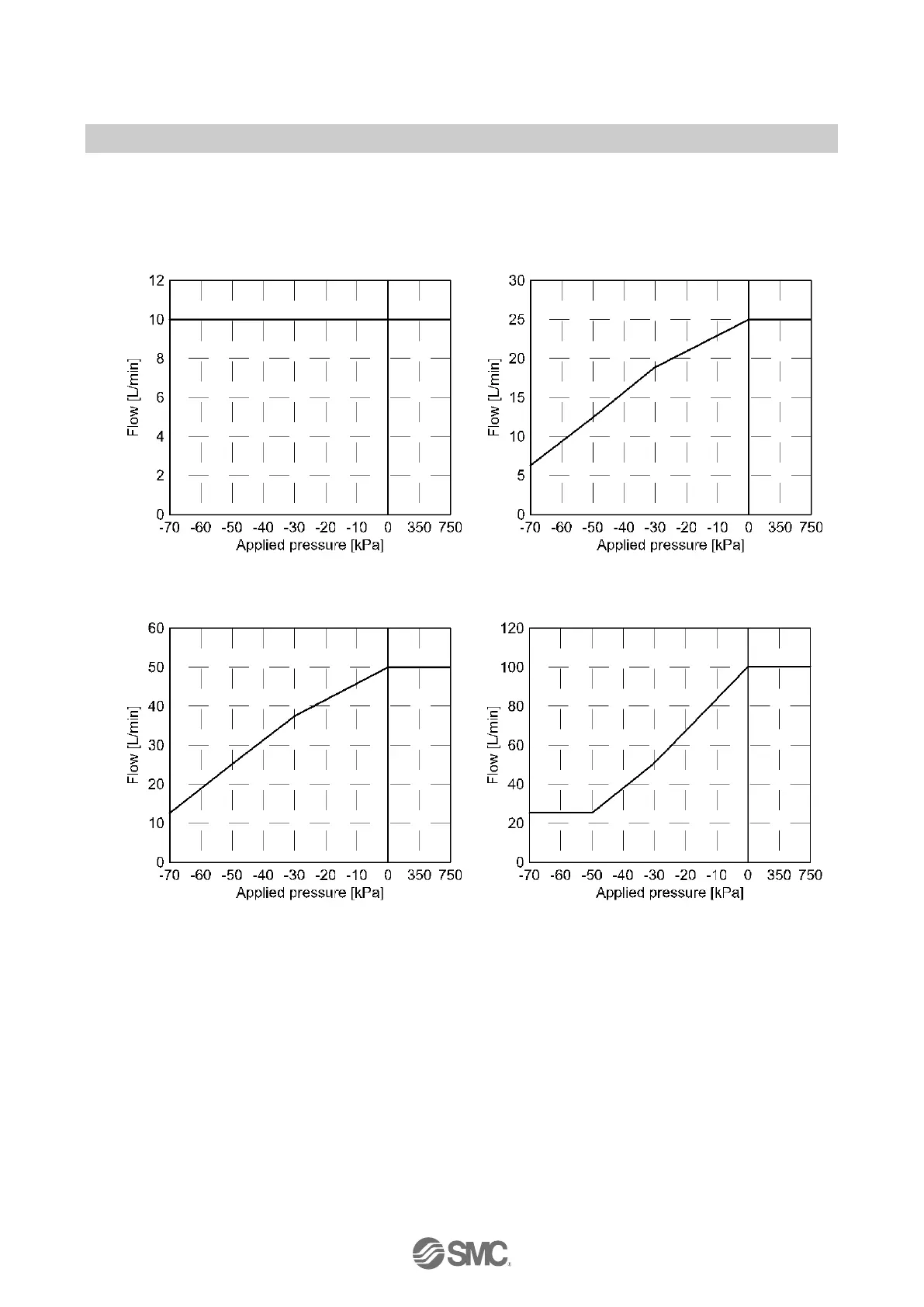

●Flow characteristic at negative pressure (reference data)
When the PF2M series is used with negative pressure (-70 to 0 kPa), the measurable range varies
depending on the flow range.
Select the flow range referring to the chart below.
PF2M710 (10 L/min)
PF2M725 (25 L/min)
PF2M750 (50 L/min)
PF2M711 (100 L/min)

SMC Networks PF2M7 Series Specifications

General

Brand	SMC Networks
Model	PF2M7 Series
Category	Switch
Language	English
