Telco Connectors
Twisted-pair wiring is available in bundles of twenty-five wire
pairs. A bundle requires 50-pin Telco male connectors at each
end.

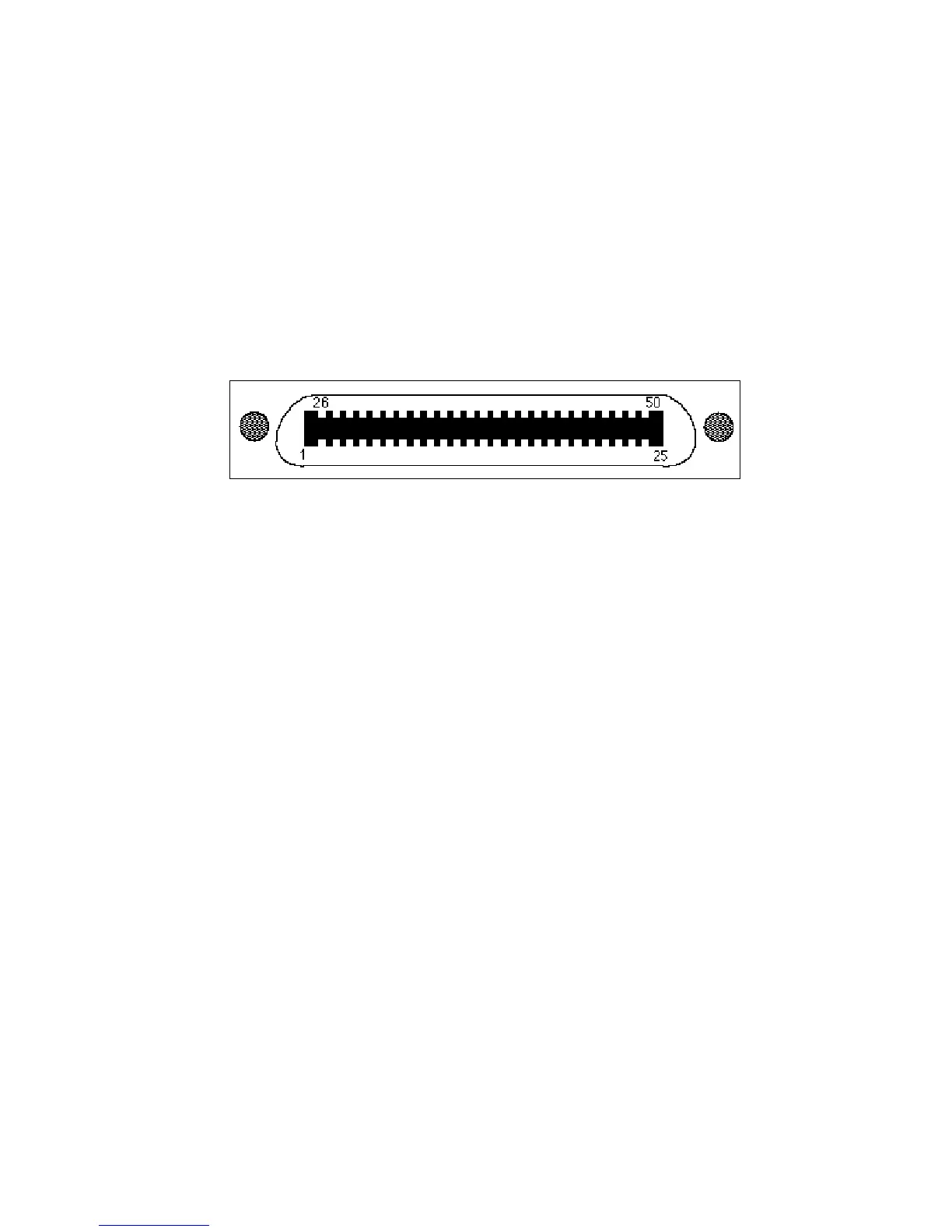

Note how the pins are numbered on the 50-pin female connec-
tor shown below. Be sure to hold the 50-pin male connector
in the same orientation when attaching it to the hub.
The TigerStack 3328TELCO is equipped with two Telco connec-
tors: the first for ports 1 to 6 and 8 to 13, and the second for
ports 15 to 20 and 22 to 27. The table on the following page
provides the pin assignments for both connectors.
55
CABLES
25-Pair Telco Connector Pin Numbers
