5 INSTALLATION AND START-UP
5.1 Preliminary operations
• Verify the perfect integrity of the equipment and its components.
• Make sure the installation manual is present.
5.2 Positioning and installation
The servo-drives/inverters of the COSMOS 301X series are designed for operating in
closed electrical operating areas (as defined in the IEC 61800-5-1:2009-04 Standard);
installation outside an electrical panel is not allowed.
The device must be duly tightened to the metal wall of the electrical panel, by means of two screws M5 x 0.8
mm; if the operation generates vibrations, use retention washers (Grover or Belleville) or a thread-lock

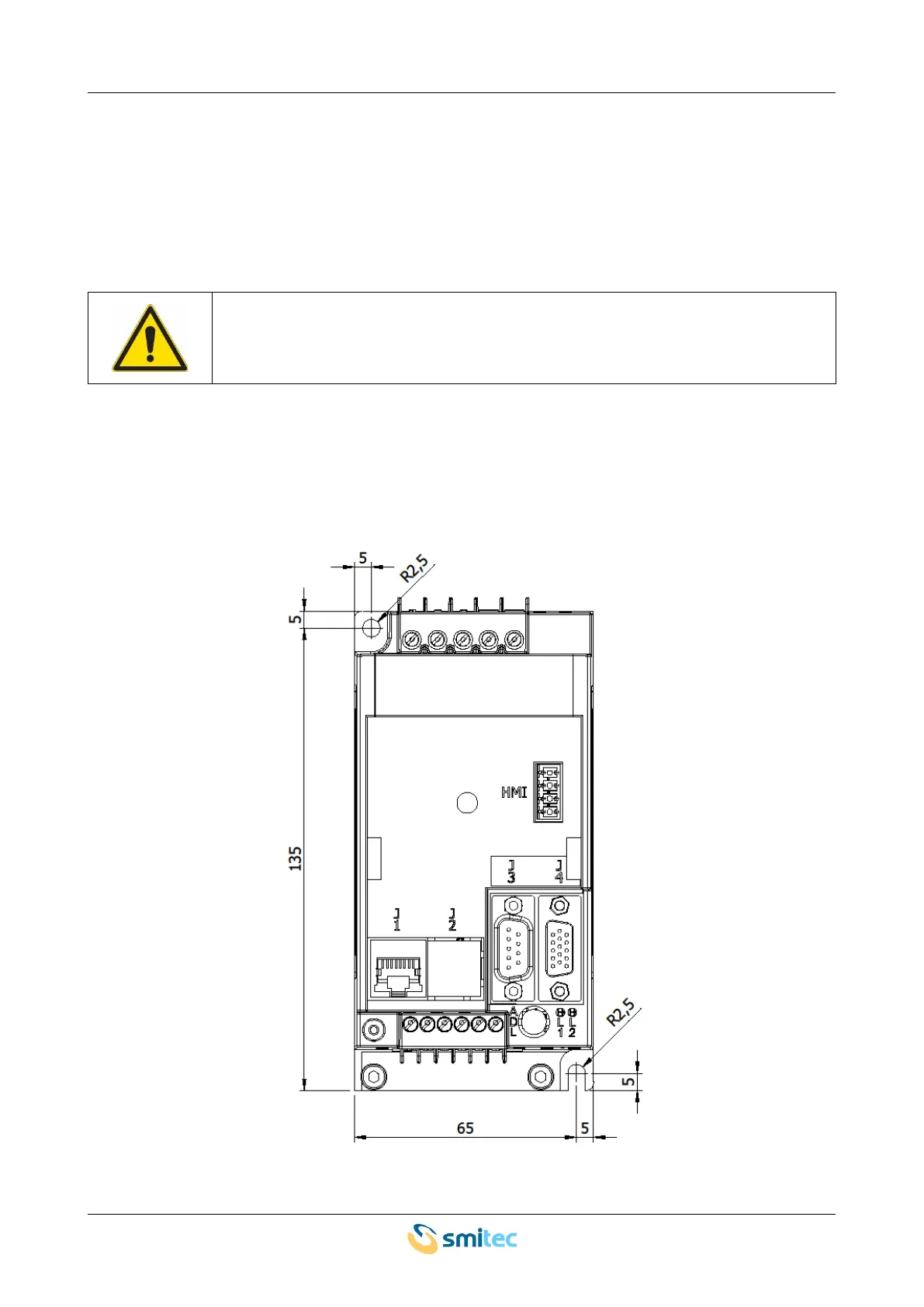

compound. The following picture shows the front view and the recommended hole pattern.
