Servodrives / inverters series COSMOS 301X Installation, use and maintenance manual - EN
5.7.2 Connections (KZ010375 and KZ010376)
This version is equipped with a removable connector for wiring 24V auxiliary power and digital I/O power.

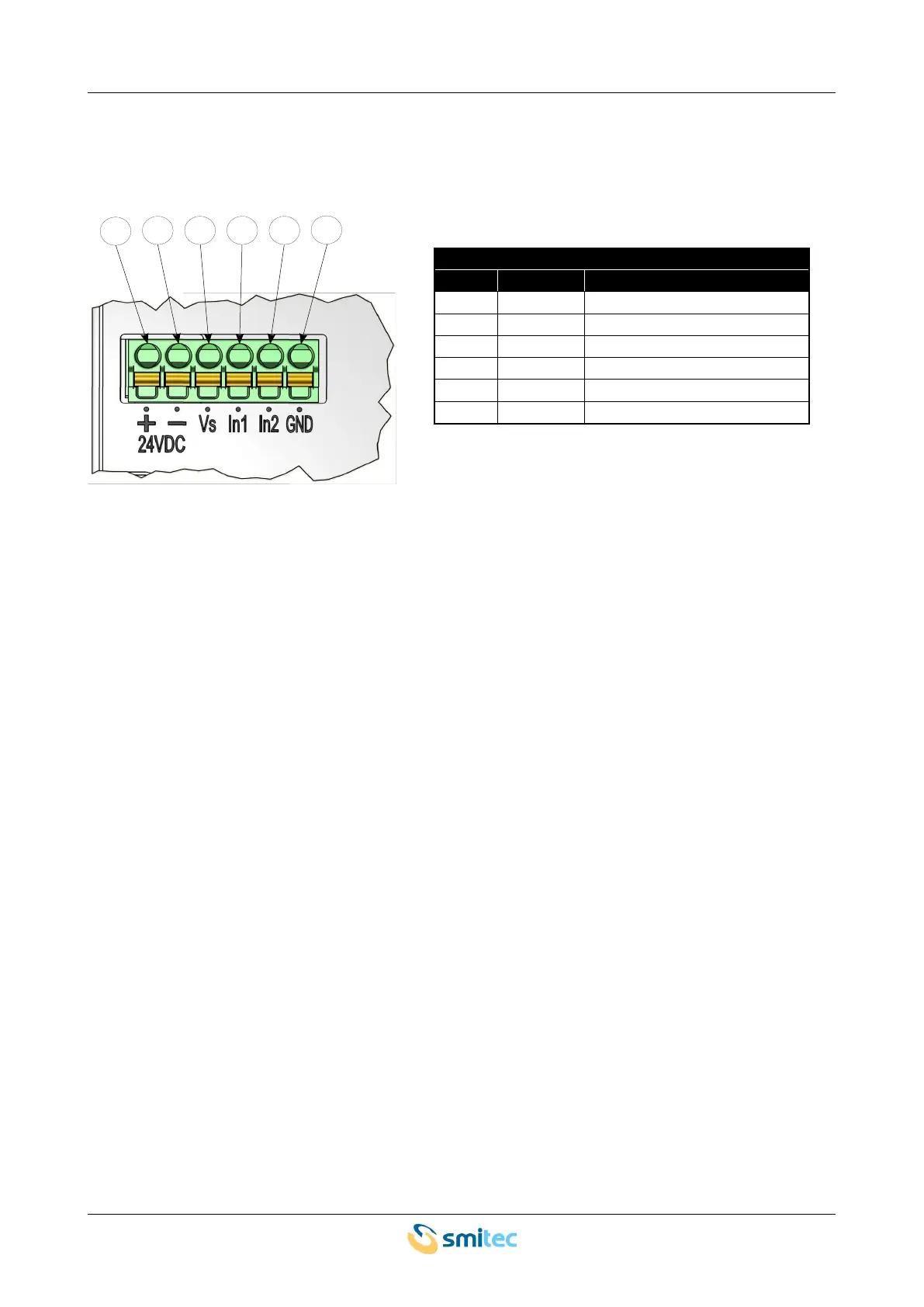

Here is the pin configuration of the connector:
24V and I/O power
pin label signal
1 24VDC + 24VDC power – positive side
2 24VDC - 24VDC power – negative side
3 Vs 24VDC sensor power
4 In1 digital input #1
5 In2 digital input #2
6 GND earth
Ver. 1.09 SMITECdd 42/74
