5.7.3 Connections (KZ010377 and KZ010389)

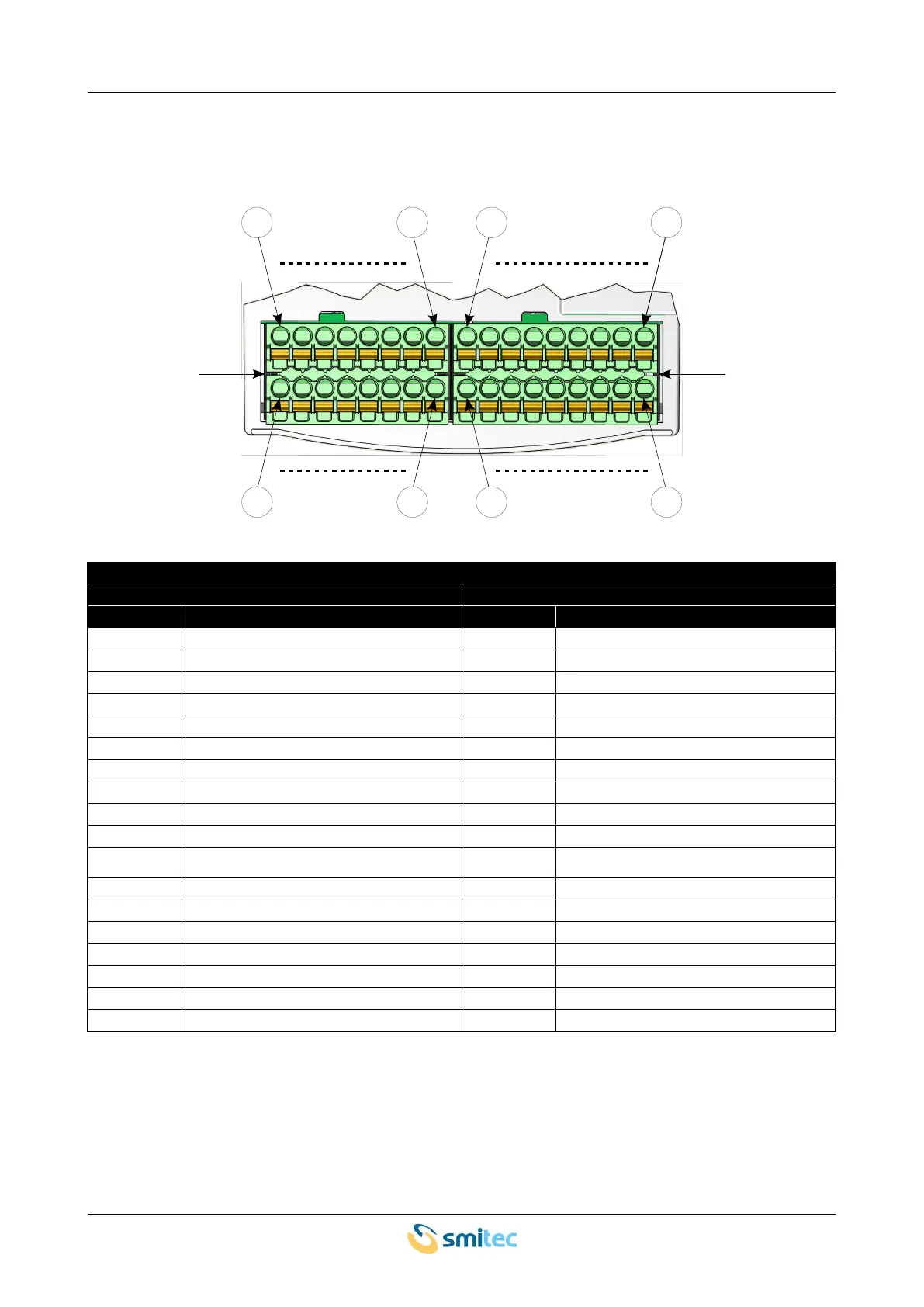

This version is equipped with two removable connectors (J5 and J6) for wiring 24V auxiliary power and
digital/analogue I/Os. Here is the pin configuration of the connectors:
24V and I/O power
connector J5 connector J6
pin signal pin signal
1 24VDC power – positive side 1 Digital output #1
2 24VDC power – negative side 2 Digital output #2
3 Earth on analogue I/O 3 Digital output #3
4
0 to 10 V input
4 Digital output #4
5 reserved 5 Digital output #5
6 reserved 6 Digital input #1
7 Motor brake output – positive side 7 Digital input #2
8
Motor brake output – negative side / I/O earth
8 Digital input #3
9 Digital counter input 9 Digital input #4
10 Earth on digital I/O 10 Digital input #13
11
0 to10 V output
11 Digital input #12
12 10V reference voltage output 12 Digital input #11
13
4÷20mA input
13 Digital input #10
14 Digital input #16 14 Digital input #9
15 Digital input #15 15 Digital input #8
16 Digital input #14 16 Digital input #7
17 Digital input #6
18 Digital input #5
