5.3.3 Connections (KZ010377 and KZ010389)

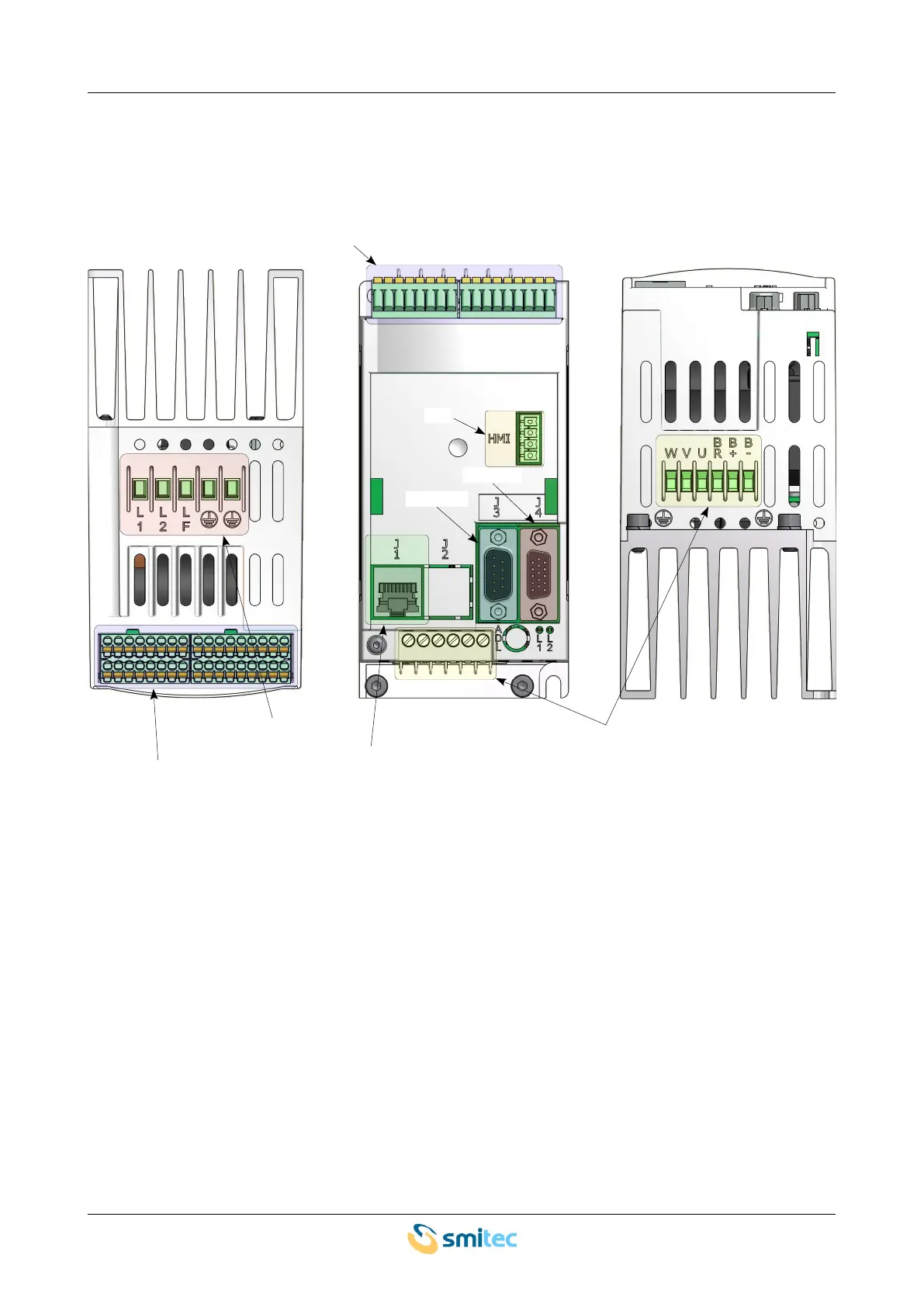

The following picture shows the arrangement of the connectors and terminal boards:
The release code KZ010377 is also equipped with a stage for piloting the brake resistor.
Ver. 1.09 SMITECdd 29/74
TOP VIEW BOTTOM VIEWFRONT VIEW
230VAC POWER SUPPLY,
PE AND MAINS FILTER
FIELD BUS
MOTOR OUTPUTS, DC BUS
AND BRAKE RESISTOR
24VDC POWER SUPPLY
AND I/O
24VDC POWER SUPPLY
AND I/O
ENCODER
RESOLVER
HMI
