5.3 Electrical connections
The devices described in this manual are equipped with a screw-type terminal board for high-voltage
connections [mains power, motor outputs, bus voltage, brake resistor, protective conductor PE (Ground)];
low-voltage connection (24V power supply, I/Os) is possible through removable connectors.
The following sub-sections show the location of the connectors and terminal boards for the different models.
5.3.1 Connections (KZ010374)

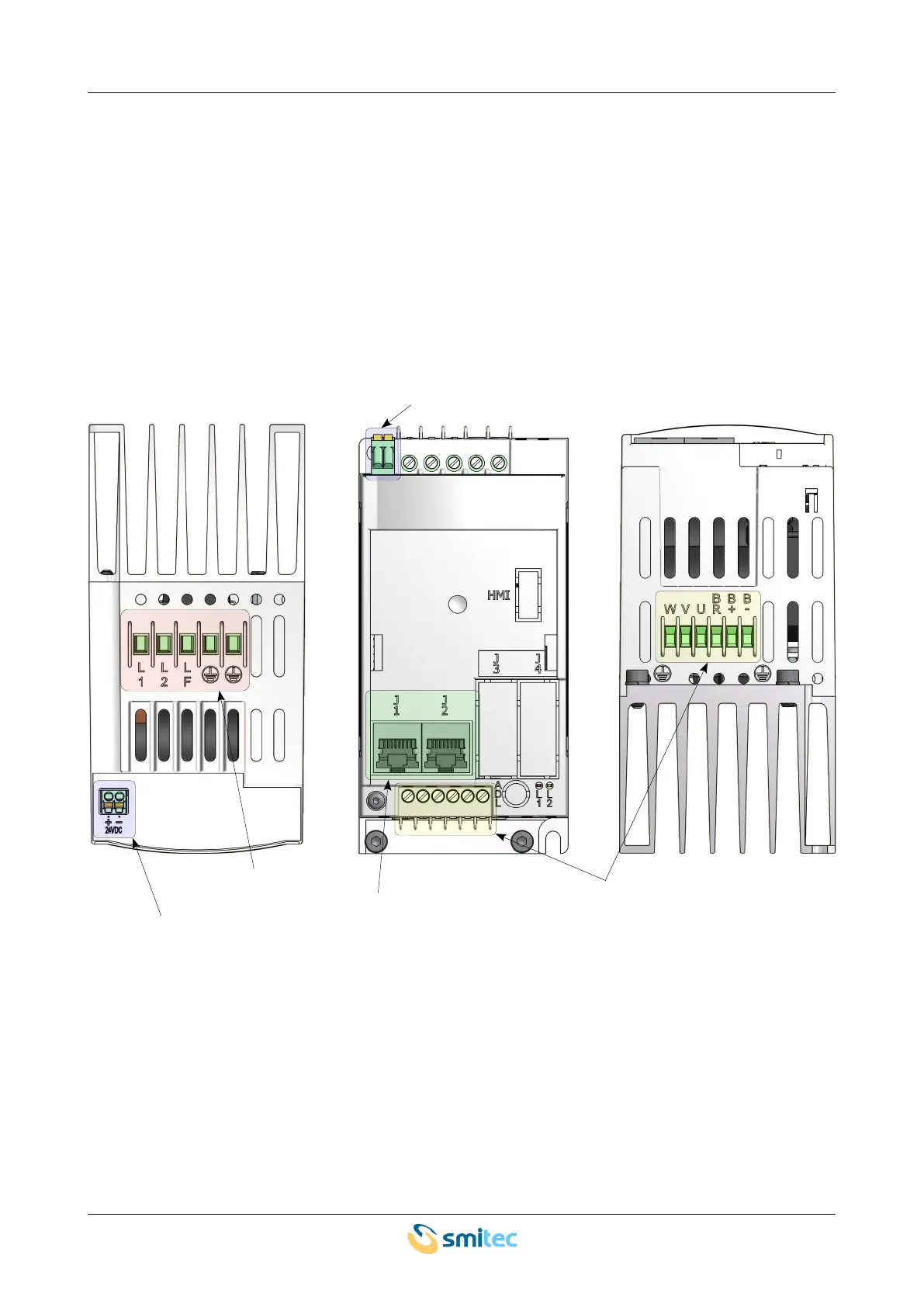

The following picture shows the arrangement of the connectors and terminal boards:
Ver. 1.09 SMITECdd 27/74
TOP VIEW BOTTOM VIEWFRONT VIEW
230VAC POWER SUPPLY,
PE AND MAINS FILTER
FIELD BUS
MOTOR OUTPUTS AND DC BUS
24VDC POWER SUPPLY
24VDC POWER SUPPLY
