Maintenance Display Device
z To replace the battery pack:
1. Loosen the two captive screws the secure the battery pack to the back of the unit.
2. Insert a fingernail into the recess at the mid point of the top of the battery pack, then gently
raise the battery pack up to release the electrical connector.
1— Captive Screws
2— Lifting Recess

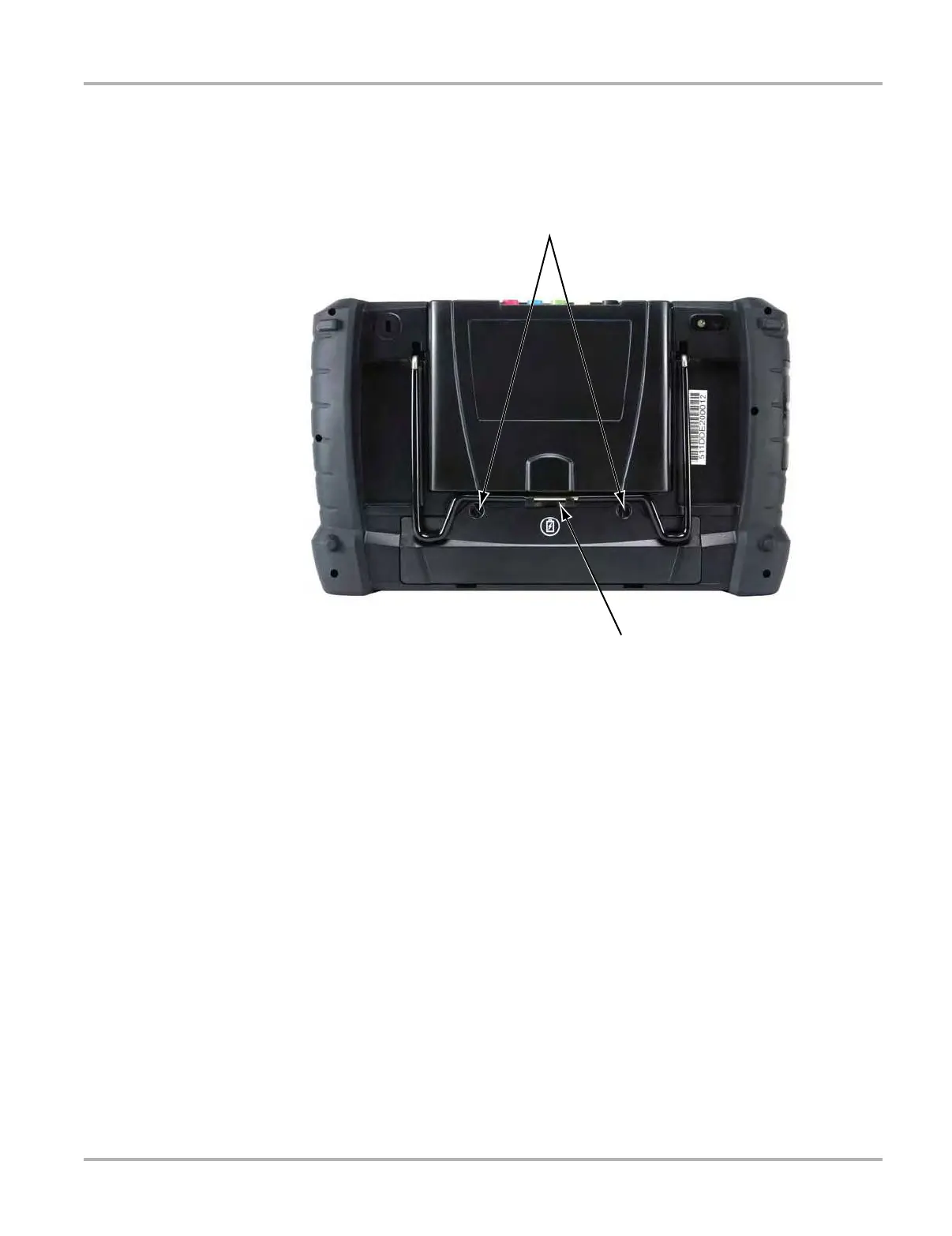

Figure 15-6 Display Device battery pack replacement
3. Lift the battery pack clear of the unit.
4. Fit the three tabs on the bottom of the new battery pack into the slots, then rotate the assembly
into position.
5. Make sure the battery pack is fully seated.
6. Tighten the two captive screws.
Disposing of the Battery Pack
Always dispose of a lithium-ion battery pack according to local regulations, which vary for different
countries and regions. The battery pack, while non-hazardous waste, does contain recyclable
materials. If shipping is required, ship the battery pack to a recyling facility in accordance with
local, national, and international regulations. For additional information contact:
• North America—Rechargeable Battery Recycling Corporation (RBRC) at http://www.rbrc.org
or http://www.call2recycle.org, or call 1(800) 822-8837 (USA)
• United Kingdom—Electrical Waste Recycling Company at http://www.electricalwaste.com
Products bearing the WEEE logo (
Figure 15-7) are subject to European Union regulations.
