70
Scope Multimeter Operations Getting Started
z To setup the Scope Multimeter for remote viewing:
1. Depress the Scope Multimeter module release tab located on the top of the unit (
Figure 8-1).

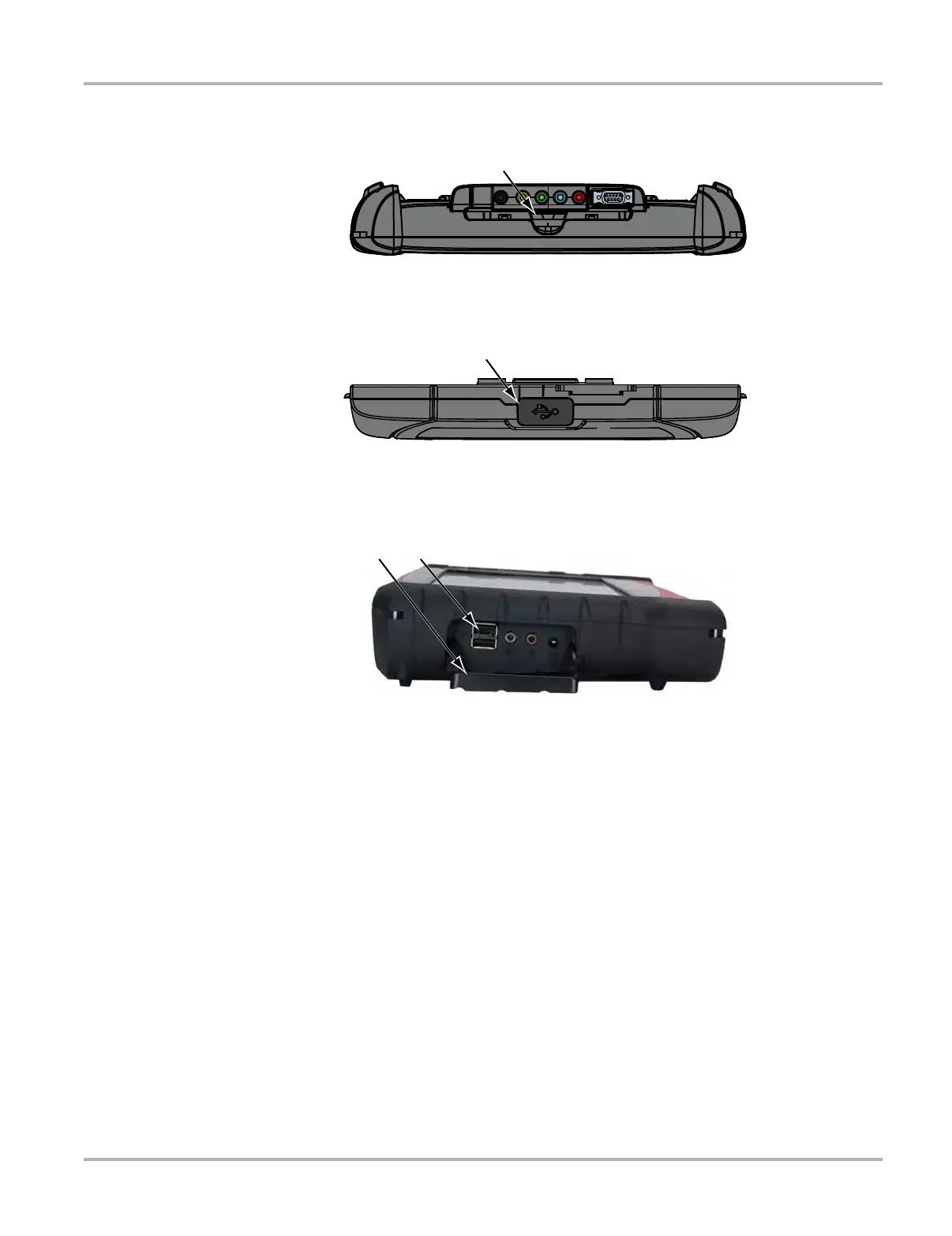

Figure 8-1 Scope Multimeter release tab
2. Slide the Scope Multimeter module free of the Display device.
3. Open the USB port cover on the bottom of the Scope Multimeter module (
Figure 8-2).
Figure 8-2 Scope Multimeter module USB port location
4. Connect the square end of the USB cable to the port on the Scope Multimeter.
5. Open the hinged cover on the left-hand side of the Display Device (
Figure 8-3).
1— Hinged cover
2— USB ports
Figure 8-3 Scope Multimeter module USB port location
6. Connect the rectangular end of the USB cable to either of the two ports on the Display Device.
The Scope Multimeter is now ready for remote use.
8.2 Getting Started
The Scope and Multimeter module enables the following functions:
• Lab Scope
• Ignition Scope
• Graphing Multimeter
• Digital Multimeter
