48
Scanner Operations Exiting the Scanner

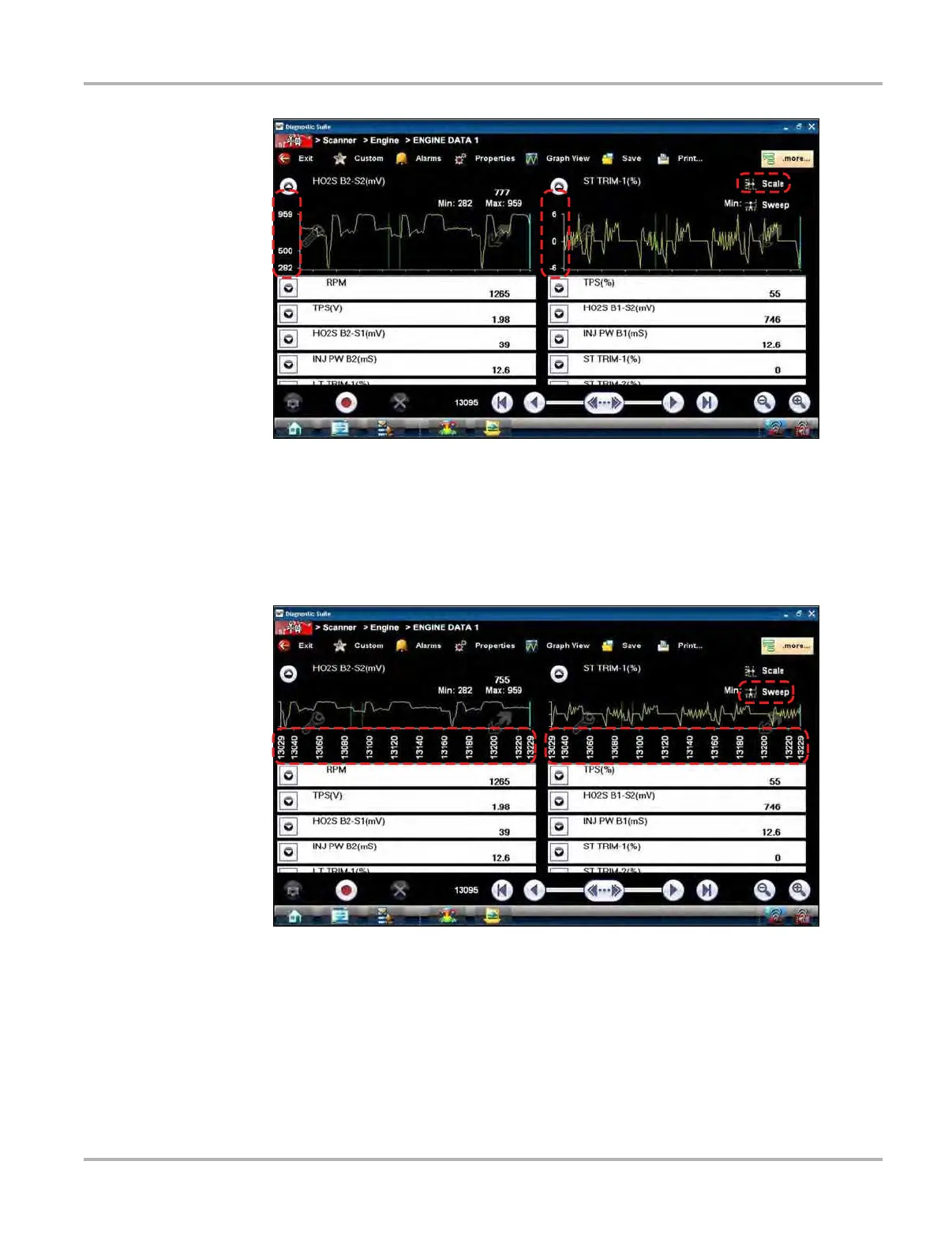

Figure 5-30 Sample data graph scales
Sweep
The Sweep option switches the sweep values, displayed below the data graphs, on and off
(
Figure 5-31). The dropdown menu closes once a selection is made.
Figure 5-31 Sample data graph sweep
5.6 Exiting the Scanner
The Scanner remains open as long as there is an active communication link with the vehicle. You
must disconnect this communication link in order to exit from Scanner tests and close the
Diagnostic Platform software. A warning message displays if you attempt to shut down while the
Scanner is communicating with an ECM.
