Introduction Scan Module
2.2 Scan Module
2.2.1 Functional description

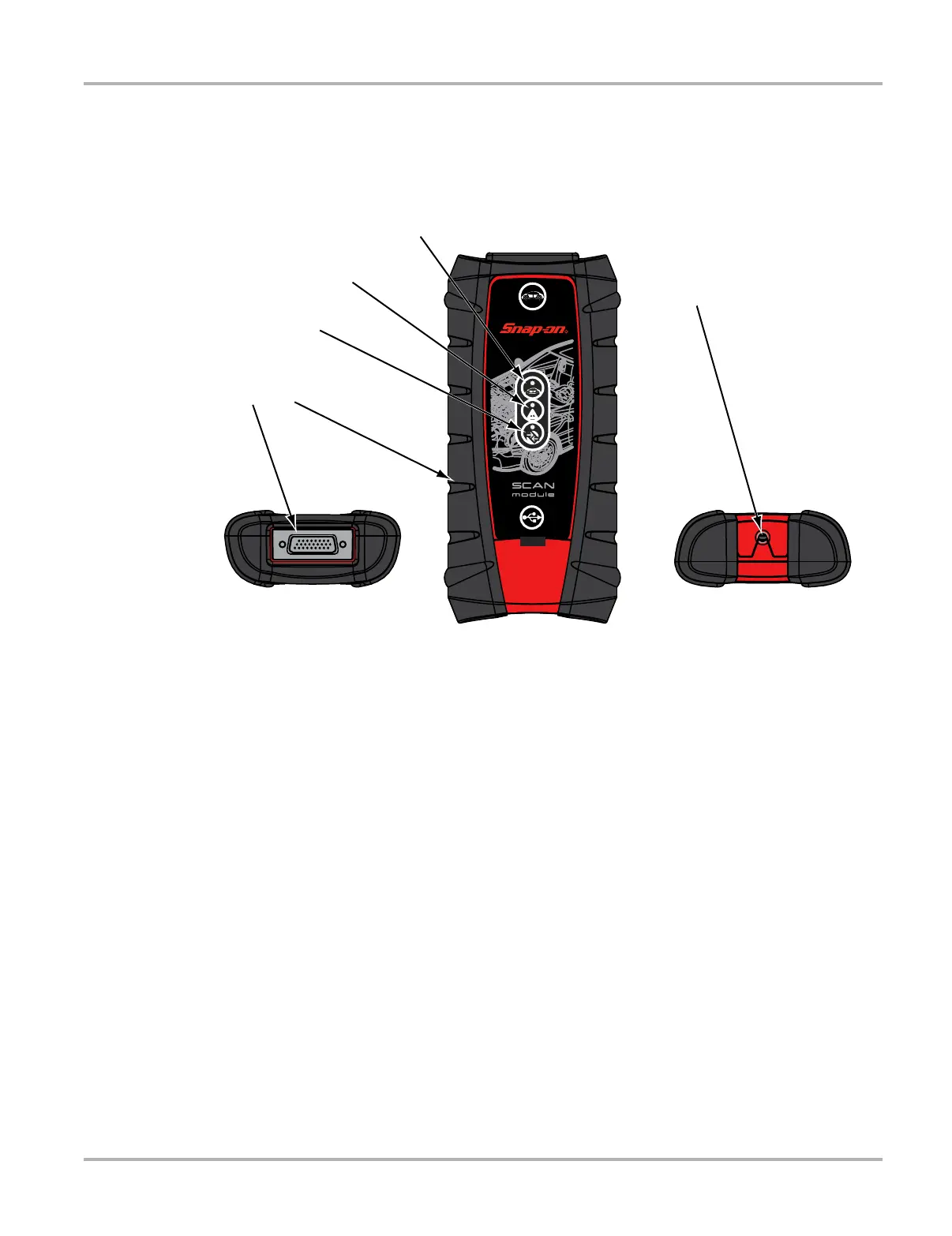

1— Data cable connector
2— Memory card port (remove protective hand grip for access)
3— Bluetooth LED (green)
4— Communication issue LED (red)
5— Vehicle power LED (green)
6— Universal serial bus (USB) port (remove protective hand grip for access)
Figure 2-4 Scan Module
Wireless Communication
The Scan Module is a wireless communications device that transmits vehicle data to the display
device without a physical connection. The working range of the transmitter is about 30 feet
(9.14 m). A signal lost due to moving out of range automatically restores itself when the display
unit is brought closer to the Scan Module. The Scanner sounds a tone and the Display Device
shows a warning message when the signal is lost.
($//%
5
7RS
)URQW
%RWWRP
