Appendix 4 - Wall Mounting
Wall Mounting
Not included in the delivery are the four screws and two screw anchors/molly bolts/wall plugs
appropriate for your type of wall.
Distance to wall
Abstand zur Wand
Distance au mur
Distanza dalla parete
Distancia a la pared
Distância à parede
∼ 5 mm (0.197")
ø max
8 mm
(0.315")
ø max
4,5 mm
(0.177")
")
185,00 mm (7.284")

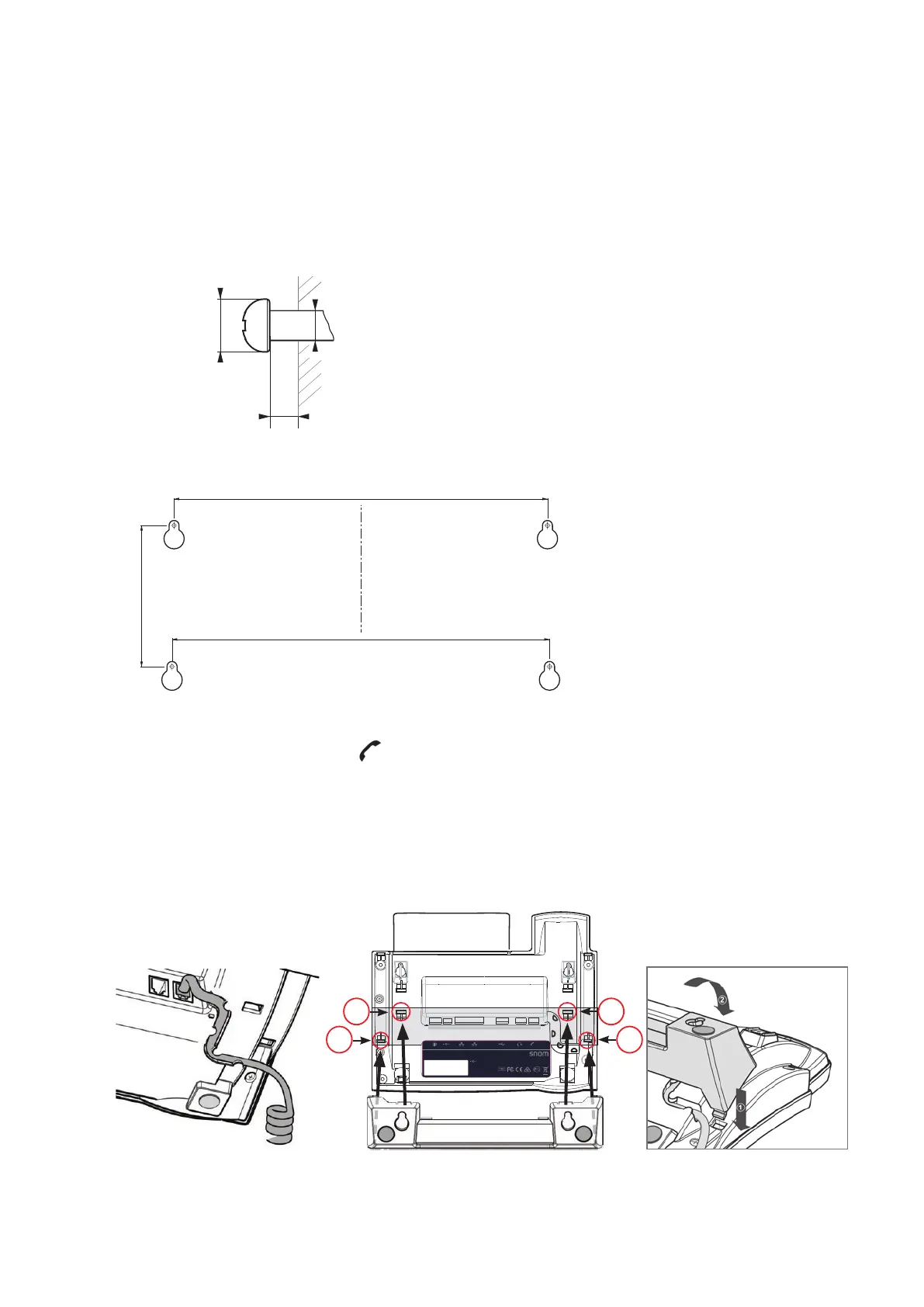

1. Before attaching the footstand in the position for wall mounting, plug the long end of the handset
cord into the connector labelled "
" on the bottom of the phone and place the cord in the cable
guide (Fig. 1).
2. Insert the snap-fits on the longer ends of the footstand into the holes marked (Fig. 2).
3. Tilt the footstand away from you and insert the snap-fits on the shorter ends into the holes marked
(Fig. 2 and 3). Make sure that all four snap-fits have securely locked in place before mounting the
phone on the wall.
D375
PN 00004141
EXT DC 5V NET PC USB AUDIO
S/N
MAC address
Use only power supply
listed in the user guide.
Snom Technology AG
Wittestr. 30 G · 13509 Berlin · Germany
© 20XX by Snom Technology AG. All Rights Reserved. Made in XXXXX
DC 5V
Fig. 1 Fig. 2 Fig. 3
