2.4.2.2 Recording Inside the Vehicle

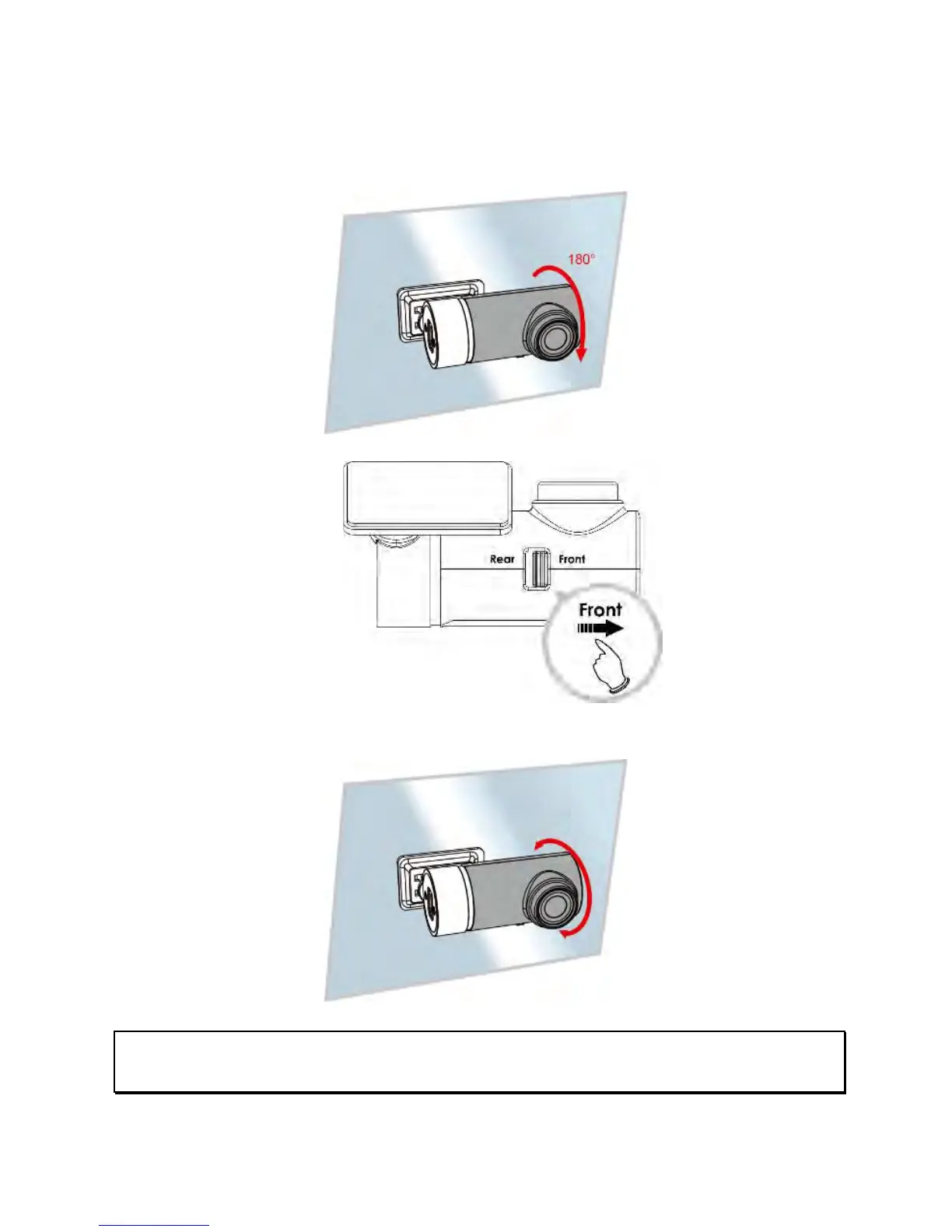

1. Once the rear camera is mounted to the rear windshield, the
lens should be rotated to accommodate the internal cabin
view as shown by the illustrations below.
2. Slide the switch to “Front”.
3. Use the prev
iew screen from the front camera to fine tune the
desired lens angle.
Note:
We recommend users to disconnect the micro USB cable from rear camera before adjusting.
