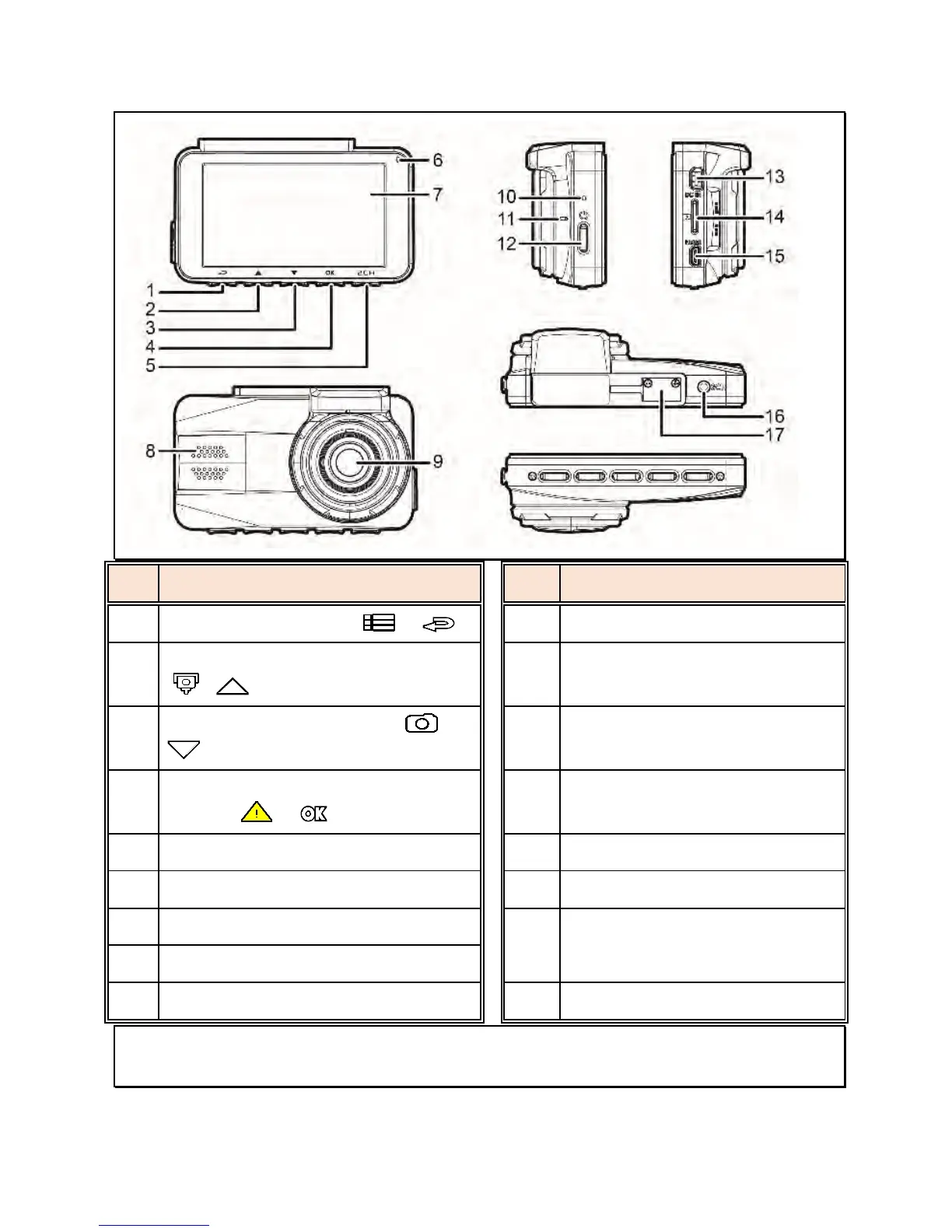

1.3 Product Overview
No.
Item
No.
Item
1
Menu / Back Button ( / )
10
Reset Hole
2
Add Speed Point / Up Button
( / )
11
Microphone
3
Snapshot / Down Button ( /
)
12
Power Switch
4
Emergency Recording / Confirm
Button ( / )
13
Power Connector Port
5
Switch Camera Button ( 2CH)
14
Memory Card Slot
6
LED Indicator
15
HDMI Connector Port
7
LCD Colour Screen
16
Rear Camera Connector Port
(option)
8
Speaker
9
Wide Angle Lens
17
Bracket Socket
Note:
Please press the button (1~5) according to the diagram notice shown on screen.
