SODICK A320D - Page 52

Wire EDM Machine Operation Chapter 5
Copyright November, 98 Page 5-4 Sodick Inc.

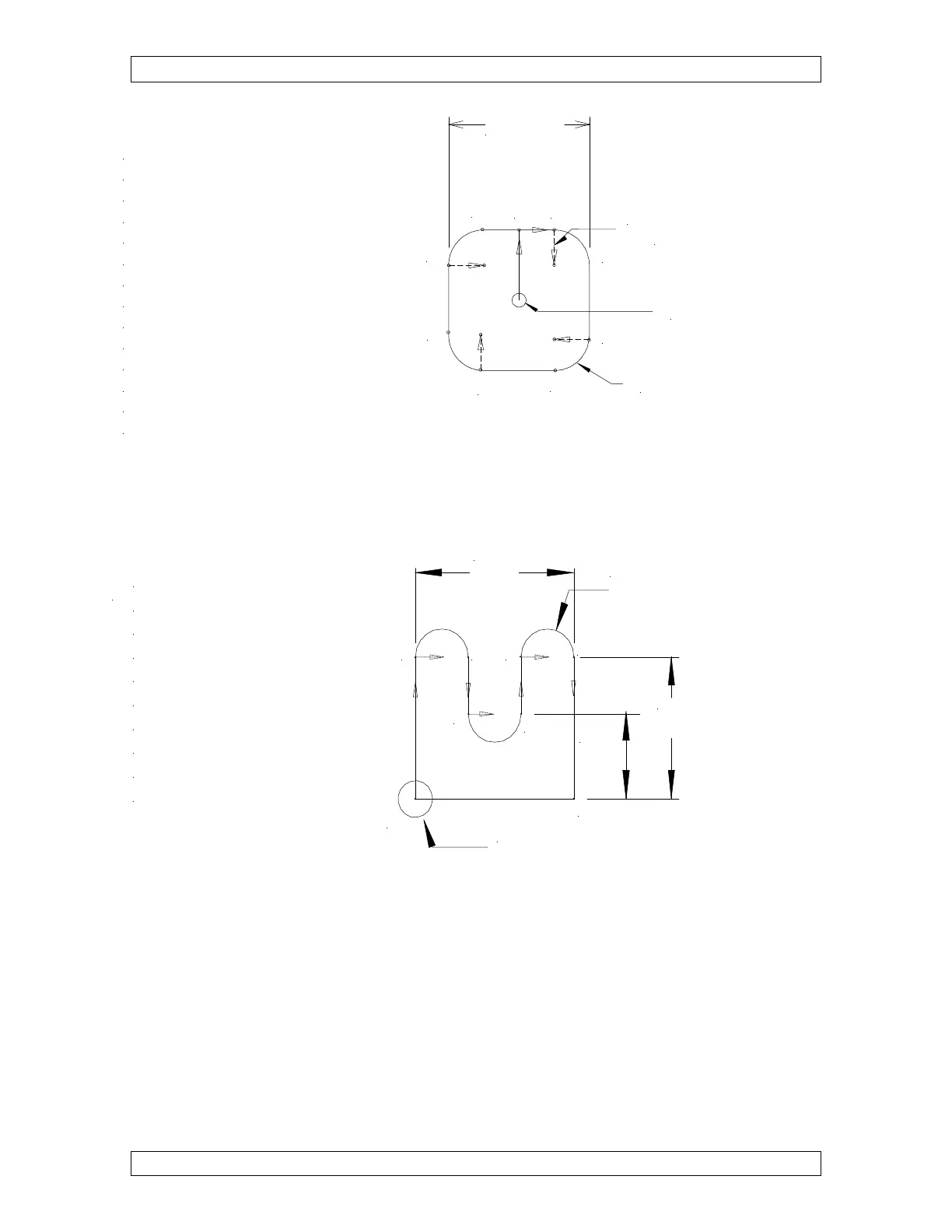

Figure 5-3
Figure 5-4
Imaginary line pointing
Program Zero
1.000"
1 2
3
4
5
6
7
8
Pnt / G02 - G03 Example
G92X0 Y0
1 G01Y.500
2 G01X.400
3 G02X.500Y.400 J-.100
4 G01Y-.400
5 G02X.400 Y-.500 I-.100
6 G01X-.400
7 G02X-.500 Y-.400 J.100
8 G01Y.400
9 G02X-.400 Y.500 I.100
1 G01 X0
G01 Y0
M02
R .100" Typ.
9
to ARC Center
G92 X0. Y0.
1 G01Y1.25
2 G02 X.5 I.25 J0.
3 G01 Y.75
4 G03 X1. I.25 J0.
5 G01 Y1.25
6 G02 X1.5 I.25 J0.
7 G01 Y0.
8 X0.
M02
1.50"
1.25"
R 0.25"
Program Zero
0.75"
Pnt
1 2
3
4
5
6
7
8
