SODICK A320D - Page 88

Wire EDM Machine Operation Chapter 8
Copyright November, 98 Page 8-12 Sodick Inc.
T
T
A
A
P
P
E
E
R
R
S
S
E
E
T
T
T
T
I
I
N
N
G
G
E
E
X
X
A
A
M
M
P
P
L
L
E
E
S
S

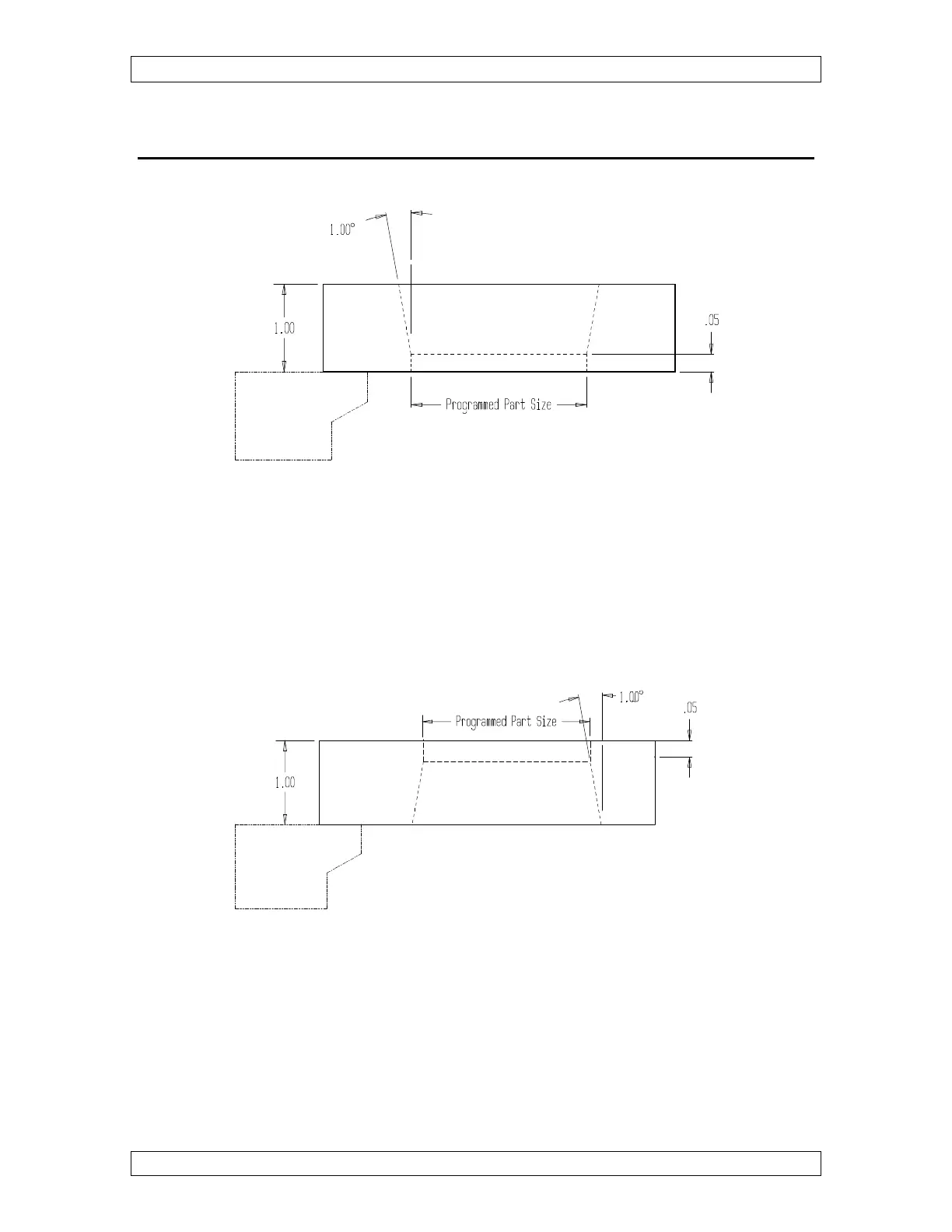

Below are two examples showing “SET” screen taper setting values with a manual Z-
axis.
Figure 8-4
Known Values Operator input
T-Limit = .6990” T-Upper = 1.5740”
T-Lower = .3535” T-Program = .0500”
Z Vernier = .8750” T-Next = 1.000
Figure 8-5
Known Values Operator input
T-Limit = .6990” T-Upper = 1.6740”
T-Lower = .3535” T-Program = .9500”
Z Vernier = .9750” T-Next = 0.000
