Wire EDM Machine Operation Chapter 9
Copyright November, 98 Page 9-4 Sodick Inc.
At this point, let’s look at some examples.
P
P
U
U
N
N
C
C
H
H
E
E
X
X
A
A
M
M
P
P
L
L
E
E
Say you were machining a punch that required three total passes (rough and two trims).
Based on the Material Type, Material Thickness, Wire Diameter and Flushing condition
you looked in the Sodick condition manual and below are the set of conditions and
offsets the manual recommended:
Rough Pass - C411 and H082
First Trim Pass - C621 and H056
Second Trim Pass - C651 and H053

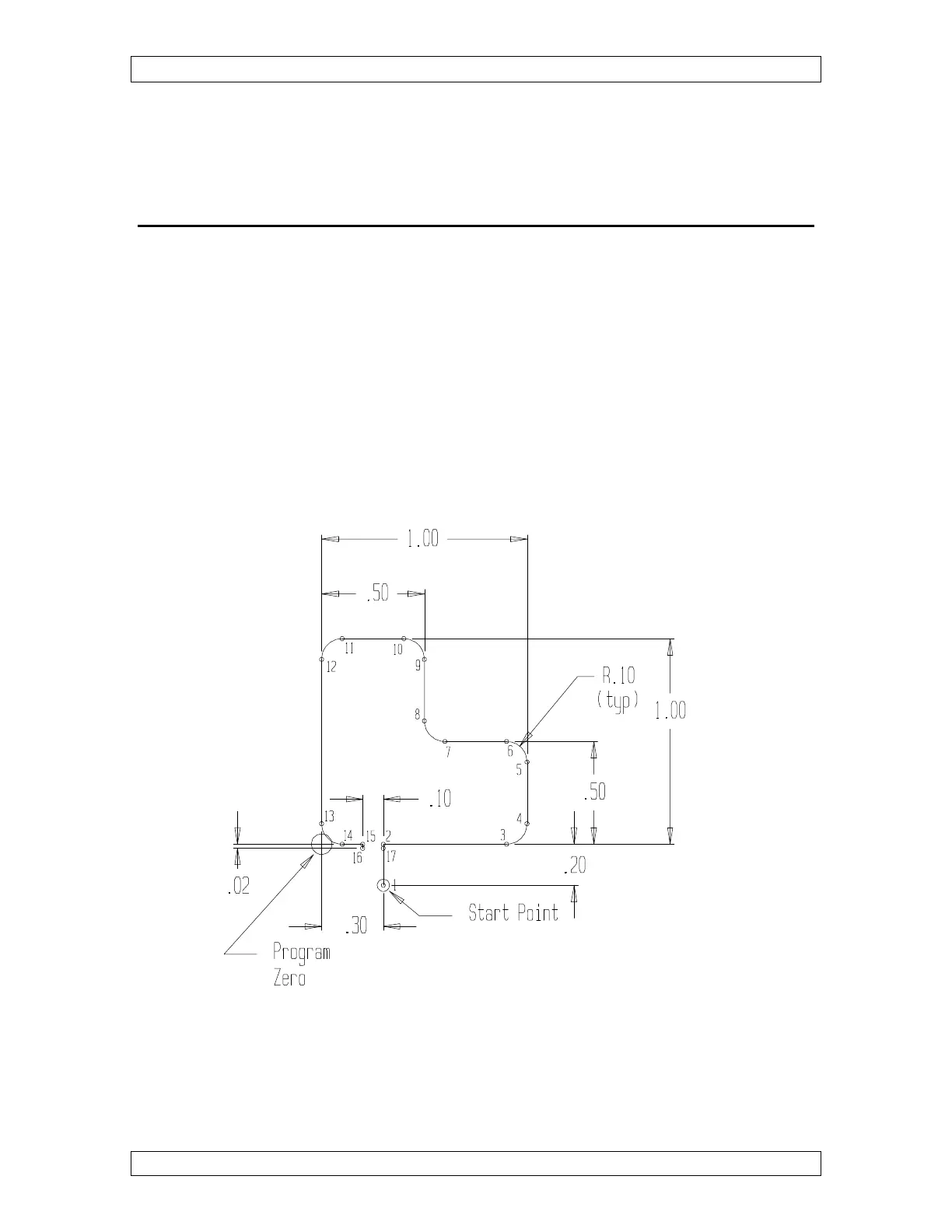

Here is the print for the punch:
Figure 9-2
Chapter 1 NC Program for figure 9-2 Using Sub Routines
N005 G54 (SELECT COORDINATE SYSTEM IN MAIN PROGRAM)
