2 Product Overview
2.1 System Description
The X3-ULTRA series is the energy storage inverter that supports grid connection of
photovoltaic system. It greatly meets the requirements of solar-powered roofs and
supports various intelligent solutions such as load management, wireless metering, dual
battery terminals, microgrids, etc., to achieve efficient and economical energy utilization.
The X3-ULTRA series can be used with different capacities of SolaX battery.
2.2 Appearance
Nameplate
DC switch
Electrical
connection area
LCD panel

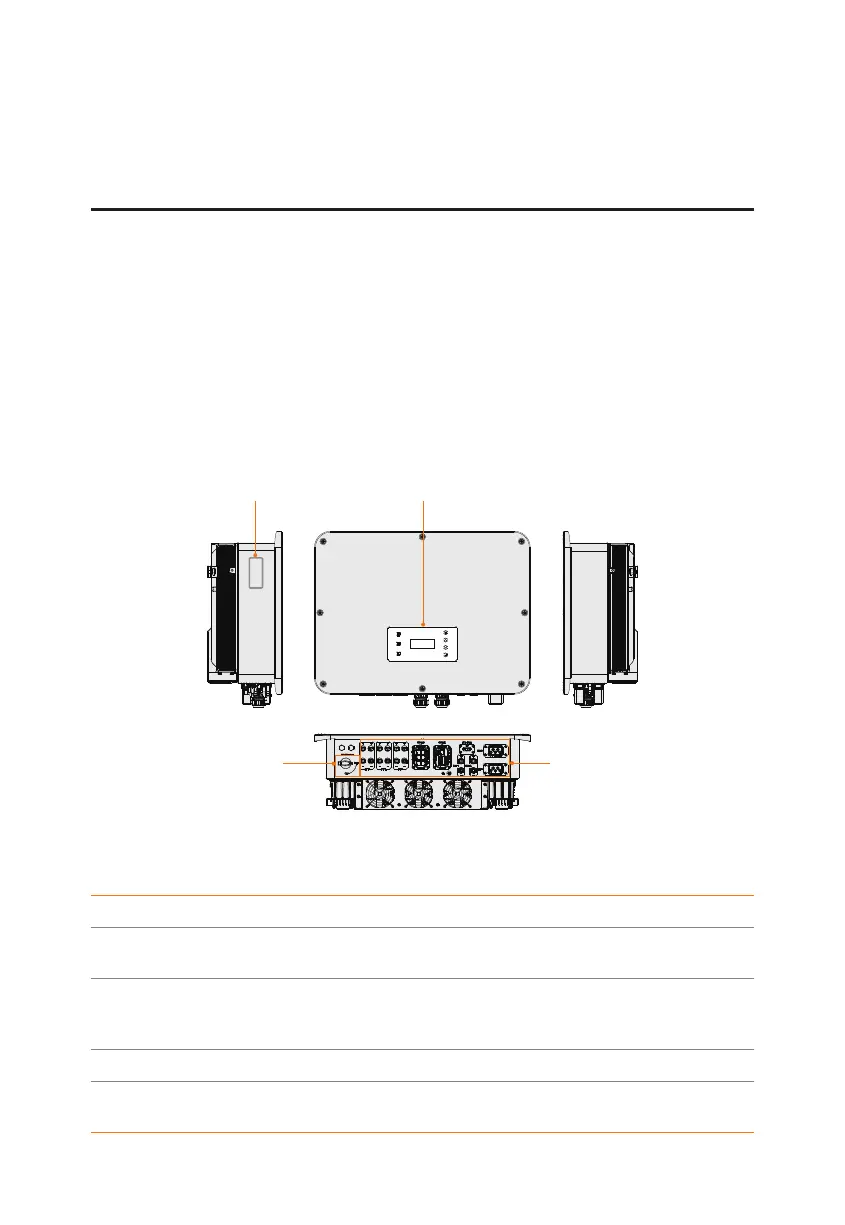

Figure 2-1 Apprearance
Table 2-1 Description of appearance
Item Description
Nameplate
Nameplate clearly identifies the device type, serial number, specific
DC/AC parameters, certification, etc.
LCD panel
Including screen, indicators and keys.
Screen displays the information; indicators indicate the status of
inverter. Keys are used to perform the parameter setting.
DC switch Disconnect the DC circuit when necessary.
Electrical
connection area
Including PV terminals, battery terminals, AC terminals,
communication terminals, etc.
