SolaX Power X3-ULT-15KP User Manual

140
Appendix
Charge from GEN
> Enable <
=====ExternalGen=====
>Charge battery to
10%
=====ExternalGen=====
15.2 Adapter Box Application
Introduction of Adapter Box application
SolaX offers a comprehensive solar home energy management solution by integrating
a heating solution into its existing system. With the SolaX Adapter Box G2, users can
effectively utilize solar energy by commanding it to power their heat pump using settings
available on the SolaX inverter and SolaXCloud. This intelligent integration allows for
optimized solar self-consumption and ultimately helps in reducing electricity bills.

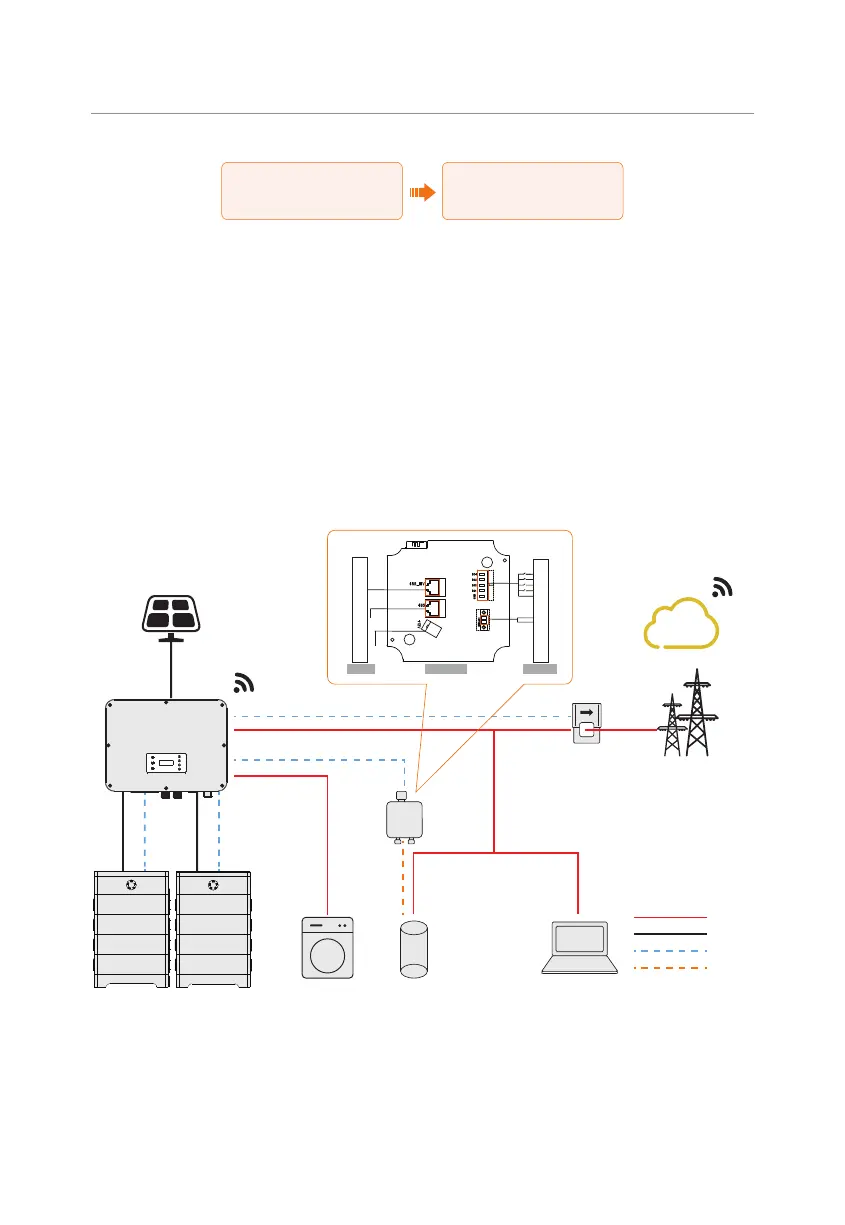

Wiring connection diagram
A
EPS loads
Heat pump
Common loads
Adapter Box
CT
Grid
PV
X-
CLOUD
DC
AC
COM
Control
Adapter BoxInverter Heat pump
DO4
DO3
DO2
DO1
AO1
GND
Analog
output
Power
adapter
Other
device
Figure 15-4 Adapter Box wiring diagram
The inverter communicates with Adapter Box via RS485. In case of excess power, the
Adapter Box can utilize it to heat the pump through the connection of dry contacts, SG
Ready, or Analog output between the Adapter Box and the heat pump. To power the
Adapter Box, an external power adapter is required as the inverter itself cannot supply
power to the Adapter Box.
