Appendix
Communication connection with inverter
• Connection terminal-RS485 terminal
RS485
terminal

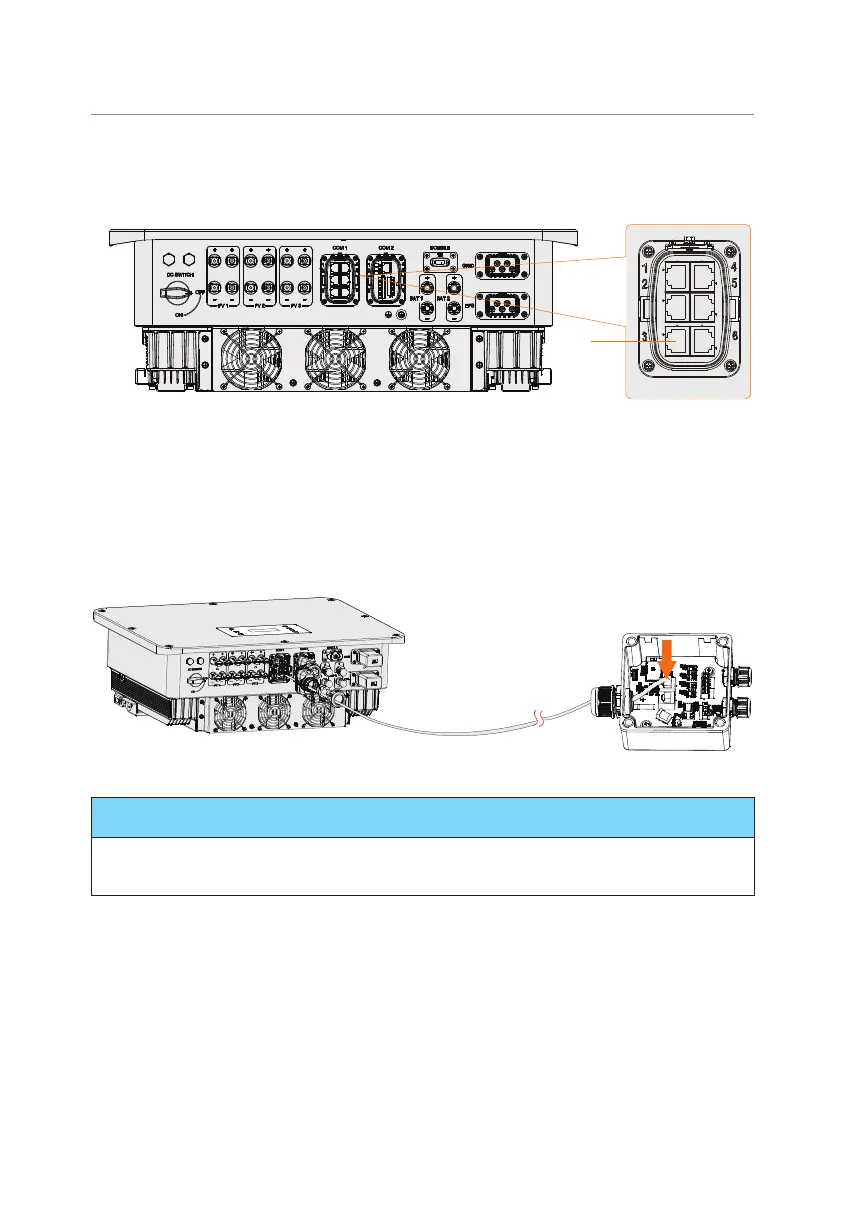

Figure 15-5 Connection terminal for Adapter Box
• Connection pins
For SolaX products, such as the Adapter Box, EV-Charger, and Datahub they can be
connected to pin3 and pin 6 or pin4 and pin5.
• Connection steps
Please refer to "8.6.4 RS485 Communication Connection" for specific wire making and
connection.
Figure 15-6 Connecting to Adapter Box
NOTICE!
• Please refer to
Adapter Box G2 User Manual
for specific connection between power
adapter and Adapter Box G2 and between heat pump and Adapter Box G2.
