SolaX Power X3-ULT-15KP User Manual

30

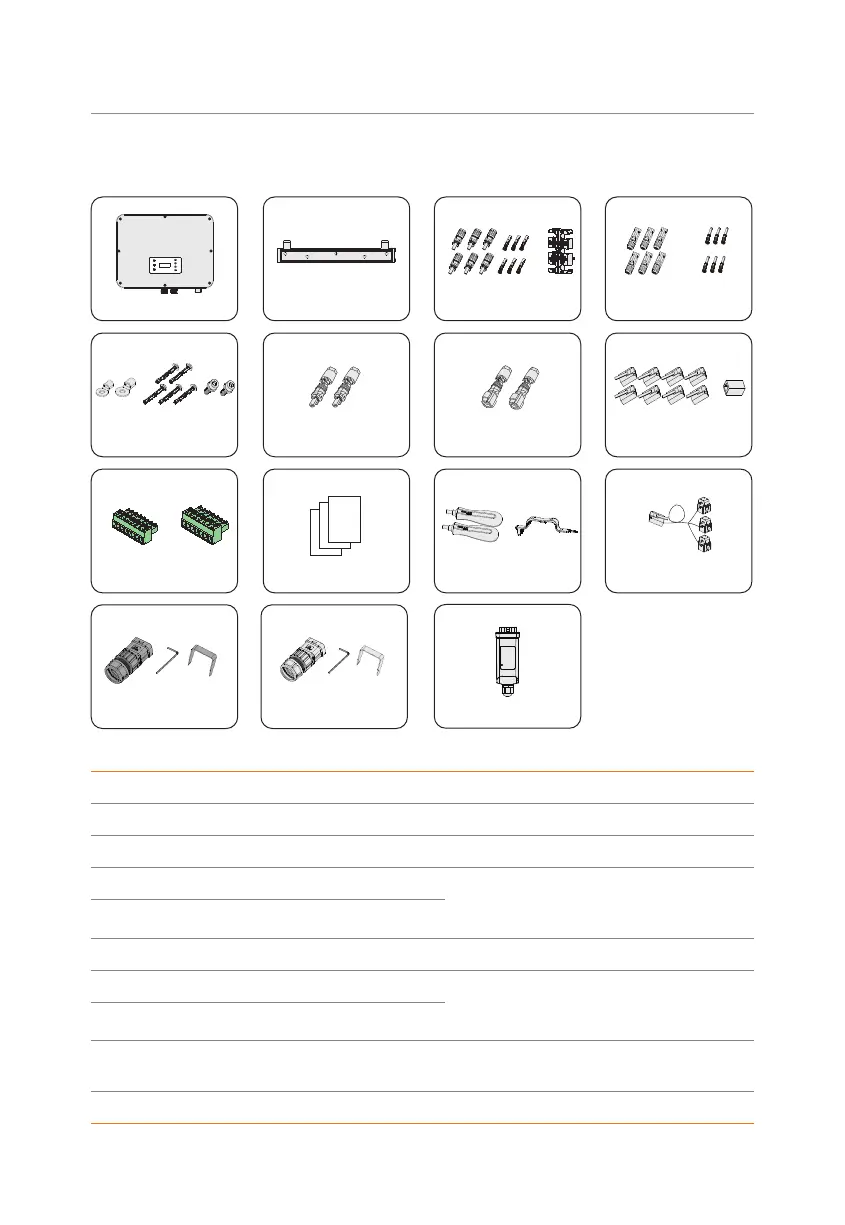

Unpacking and Inspection
6.2 Scope of Delivery
A B C D E
F G
H I J K L
M N O
S TAT
P
AC connector (black)
Bracket
AC connector (grey)
Allen key
Positive PV connector
Cable fixture
Positive battery
connector
Handle
Removal toolDocument
Dongle
OT terminal
Expansion screw
M5 screw
8-pin terminal block
7-pin terminal block
RJ45 terminal
RJ45 connector
Q
Negative PV connector
Negative PV pin contact
Negative battery
connector
R
S T
U
Positive PV pin contact
Inverter
Allen key
V W X
CT
Removal tool Removal tool
Table 6-1 Packing list
Item Description Quantity
/ Inverter 1 pcs
/ Bracket 1 pcs
A Positive PV connector 6 pairs (4 pairs for X3-ULT-15K, 19.9K
and 20K, 6 pairs for X3-ULT-15KP, 20KP,
25K and 30K)
B Positive PV pin contact
C Cable fixture 1 pcs
D Negative PV connector 6 pairs (4 pairs for X3-ULT-15K, 19.9K
and 20K, 6 pairs for X3-ULT-15KP, 20KP,
25K and 30K)
E Negative PV pin contact
F OT terminal
2 pcs (1 pcs for 10 mm² wire, 1 pcs for
16 mm² wire)
G Expansion screw 5 pcs

SolaX Power X3-ULT-15KP Specifications

General

Brand	SolaX Power
Model	X3-ULT-15KP
Category	Inverter
Language	English
