Product Overview
2.5.2 Application Schemes
…
…
L1
N
L3
L2
PE
L1
N
L3
L2
PE
CT
RCD
RCD
Inverter
Battery 1
Battery 2
Distribution box
N-BAR for loads
Loads
Breaker
Breaker
E-BAR
Main Breaker
Grid
Grid
EPS
Breaker

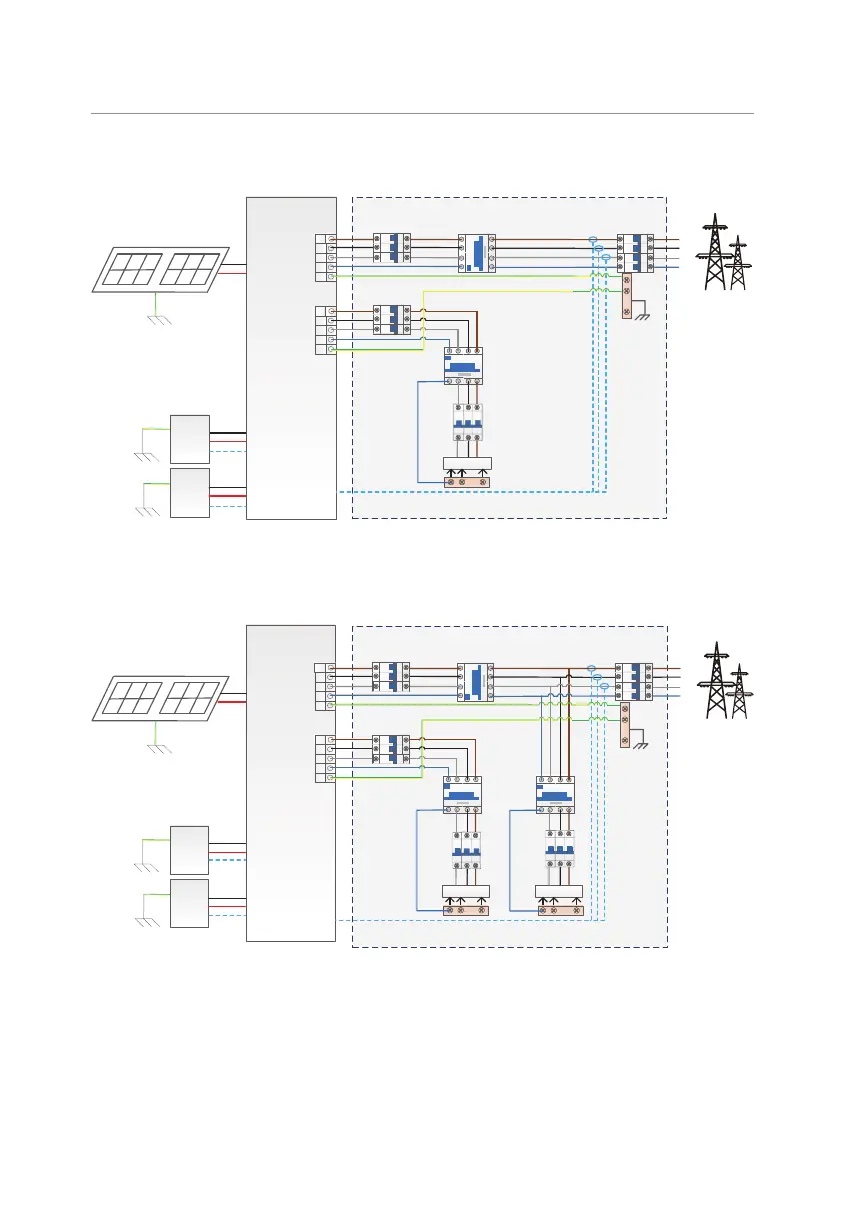

Figure 2-6 Whole home backup for most countries
…
…
…
L1
N
L3
L2
PE
L1
N
L3
L2
PE
CT
RCD
RCD RCD
Inverter
Battery 1
Battery 2
Loads
Breaker
E-BAR
Breaker
Main Breaker
Grid
Grid
EPS
Breaker
Loads
N-BAR for EPS loads
N-BAR for loads
Distribution box
Breaker
Figure 2-7 Partial home backup for most countries
