SolaX Power X3-ULT-15KP - Page 17

9
Product Overview
…
Inverter
Battery 1
Battery 2
Distribution box
N-BAR for loads
Loads
Breaker
E-BAR
Breaker
Main Breaker
Grid
Grid
EPS
L1
N
L3
L2
PE
L1
N
L3
L2
PE
CT
RCD
RCD
Breaker

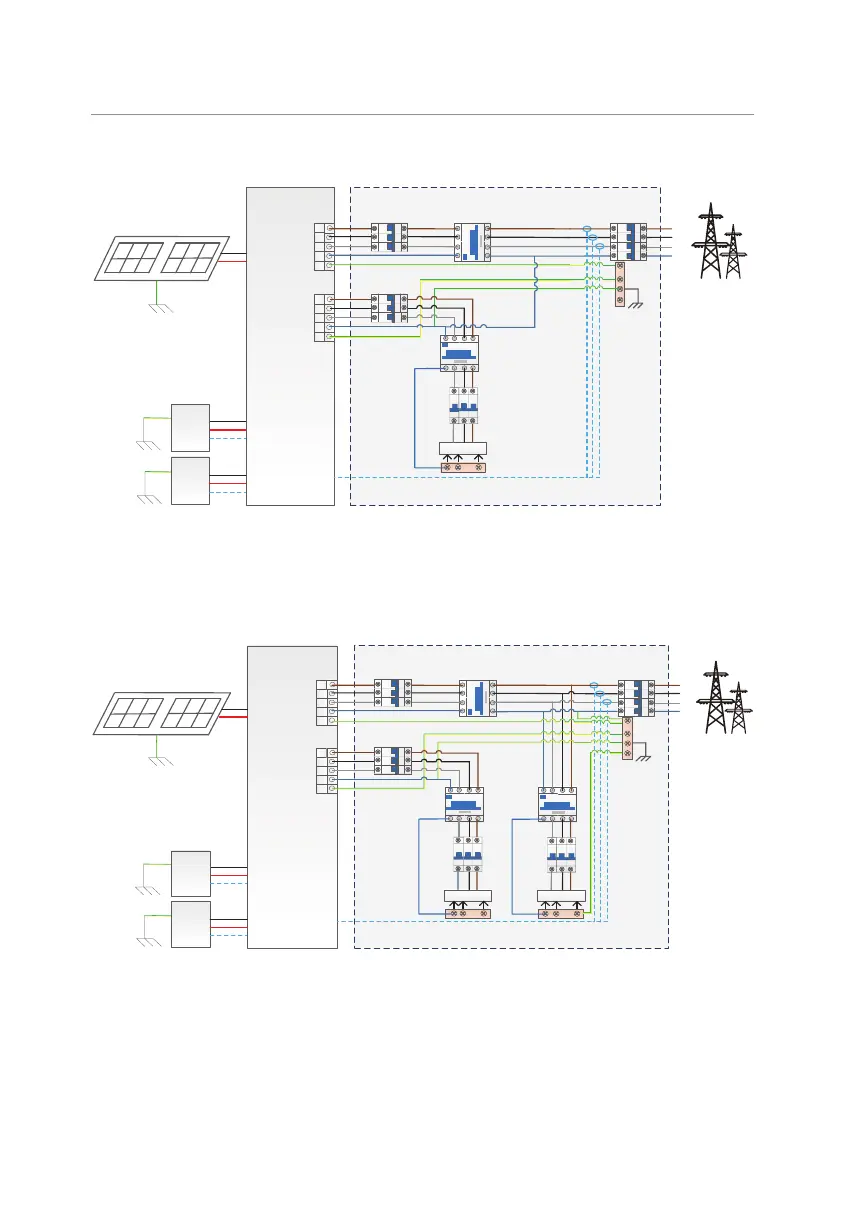

Figure 2-8 Whole home backup for Australia
…
Inverter
Battery 1
Battery 2
Breaker
E-BAR
Breaker
Main Breaker
Grid
Grid
EPS
L1
N
L3
L2
PE
L1
N
L3
L2
PE
CT
RCD
RCD
RCD
Loads
Loads
Distribution box
N-BAR for loadsN-BAR for EPS loads
Breaker
Breaker
Figure 2-9 Partial home backup for Australia
