Electrical Connection

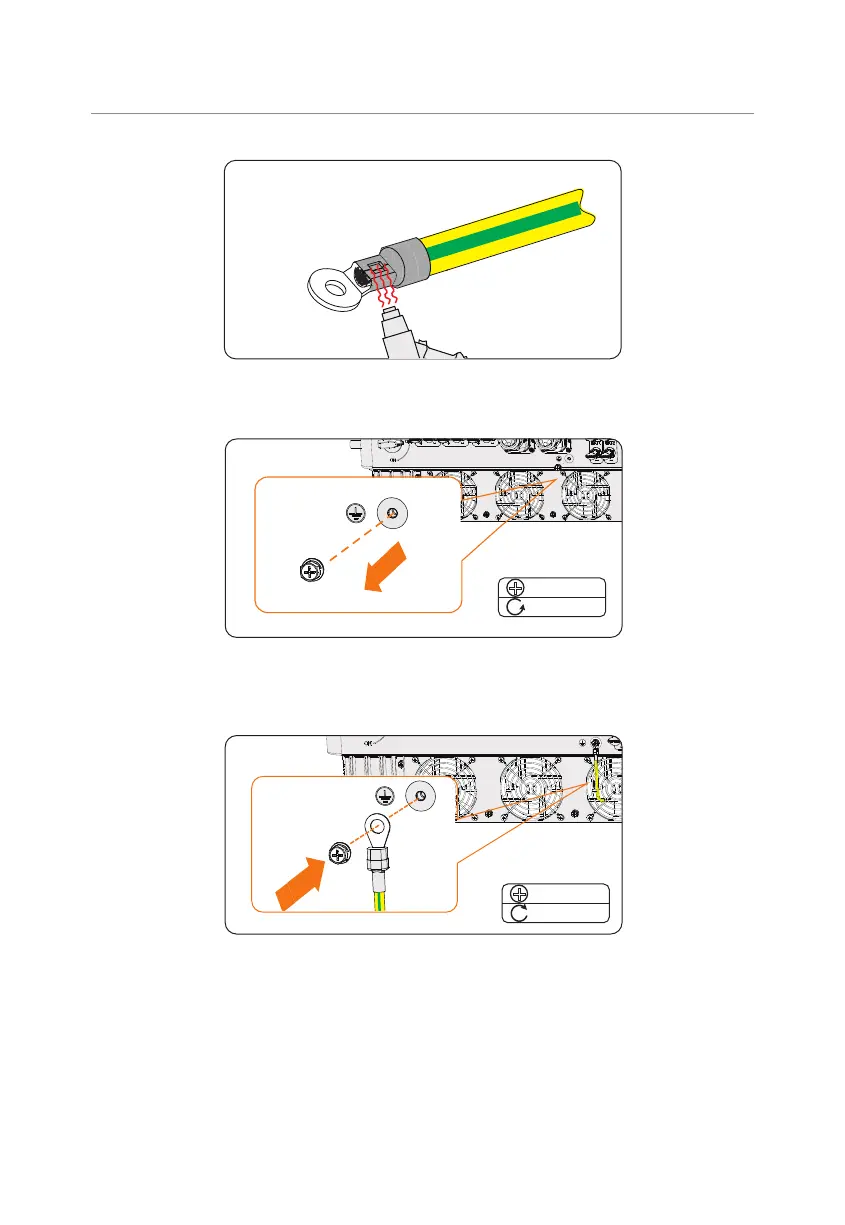

Figure 8-5 shrinking the tubing
Step 4: Loosen the PE screw on the inverter with cross screwdriver.
M5
2.0± 0.2 N·m
Figure 8-6 Uninstalling the screw
Step 5: Connect the PE cable to the inverter and secure it with the original screw (Torque:
2.0±0.2 N·m).
M5
2.0± 0.2 N·m
Figure 8-7 Securing the PE cable
