Electrical Connection
• The battery connection scheme
»
Battery connection in one string.
• For T-BAT-SYS-HV-S2.5/3.6,
up to 13 battery modules
can be connected.
• For T-BAT-SYS-HV-5.8, up
to 4 battery modules can
be connected.
One tower
Two towers
Inverter
Inverter
BMSSeries Box
BAT-
BAT+
COMM

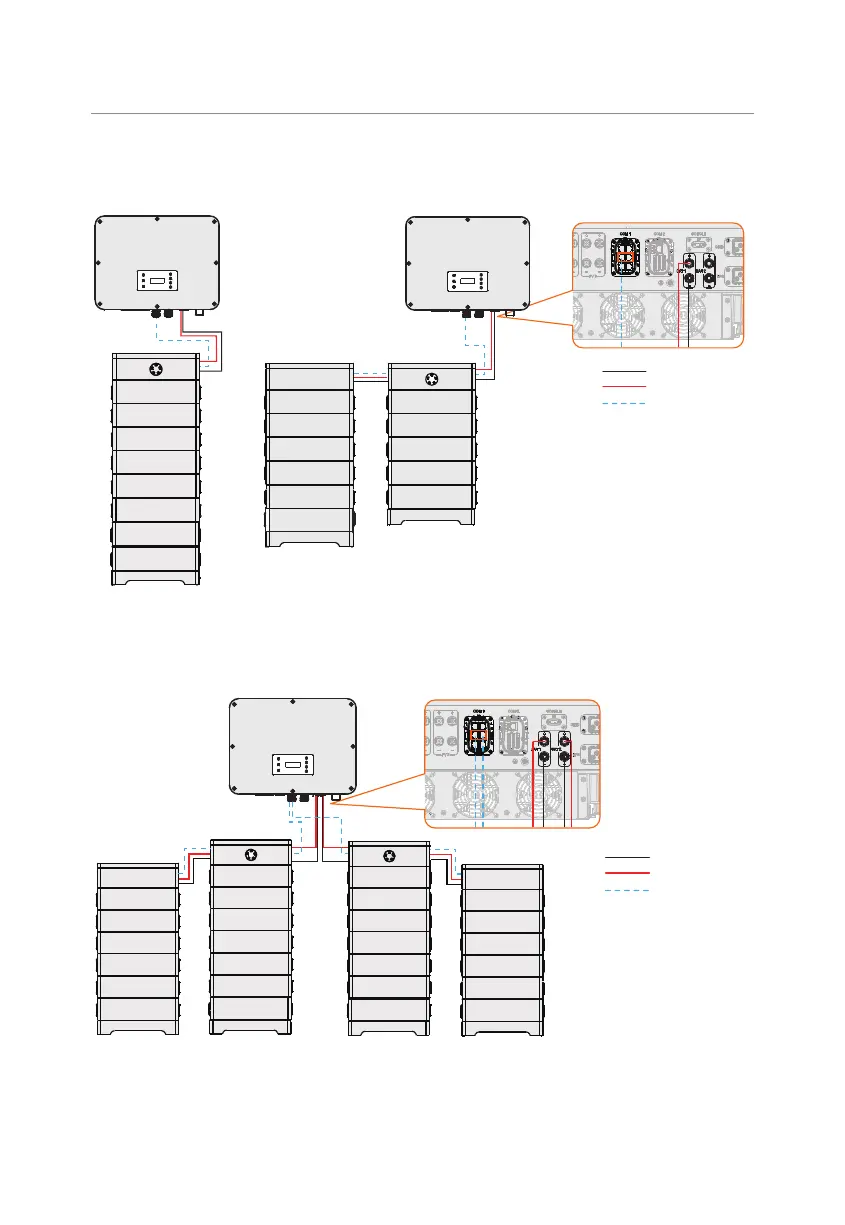

Figure 8-22 Battery connection in one string
»
Battery connection in two strings.
Inverter
BMSBMS
BAT-
BAT+
COMM
Series Box Series Box
• Up to 26 battery modules
can be connected.
Figure 8-23 Battery connection in two strings (T-BAT-SYS-HV-S2.5/3.6)
