Electrical Connection
»
Battery connection with BMS-Parallel Box-II G2 (The BMS-Parallel Box-II G2
can be used with T-BAT-SYS-HV-5.8)
T-BAT H5.8
BMS-Parallel Box-II G2
Inverter
• With BMS-Parallel Box-II G2,
up to 16 battery modules
can be connected.
BAT-
BAT+
COMM
T-BAT H5.8HV11550
HV11550
HV11550
HV11550
HV11550
HV11550
HV11550
HV11550
HV11550 HV11550
HV11550 HV11550
HV11550 HV11550

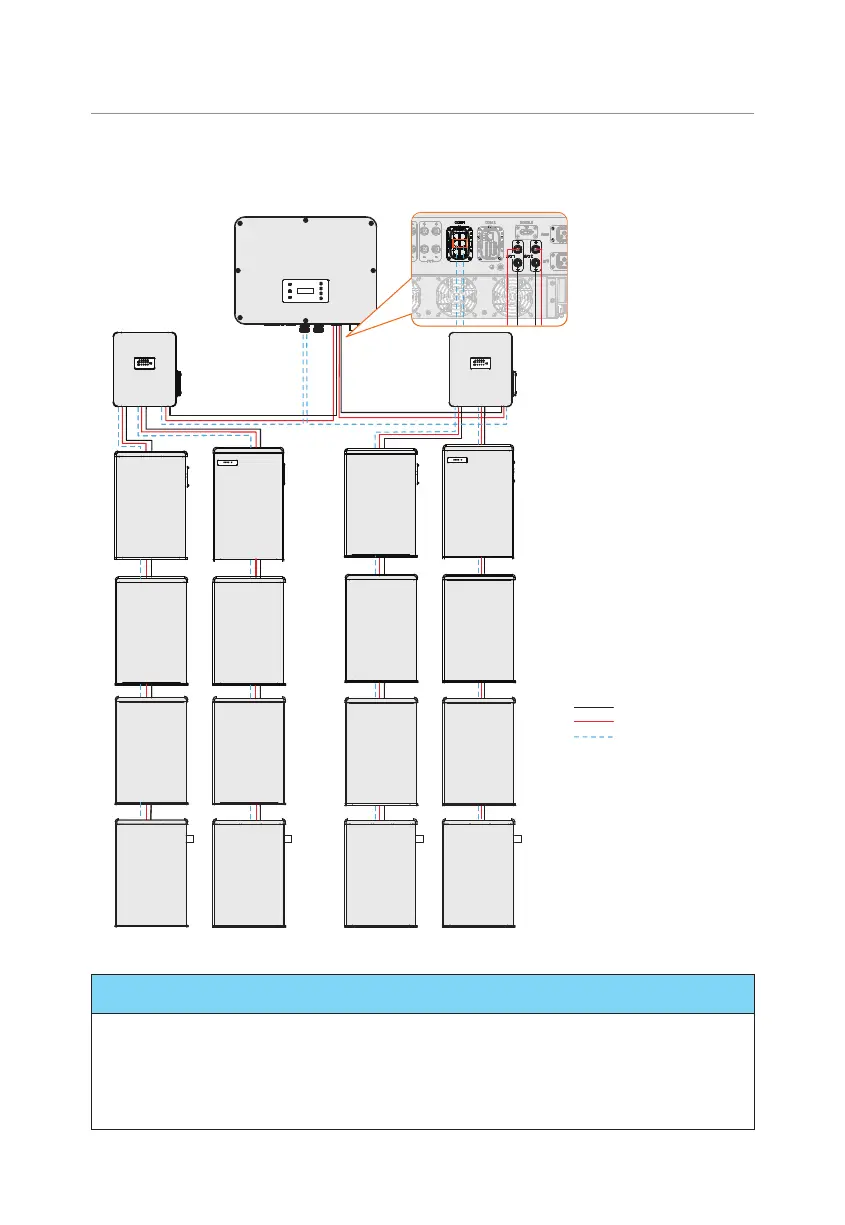

Figure 8-25 Battery connection with BMS-Parallel Box-II G2
NOTICE!
• Considering factors such as cost, maximizing battery performance, and meeting the
voltage requirements of the inverter, please choose a suitable battery connection
scheme.
• It is possible to expand the capacity by adding batteries of the same model, Different
models of batteries are not supported for expansion.
