Communication connection with inverter
• Connection terminal-RS485 terminal
RS485
terminal

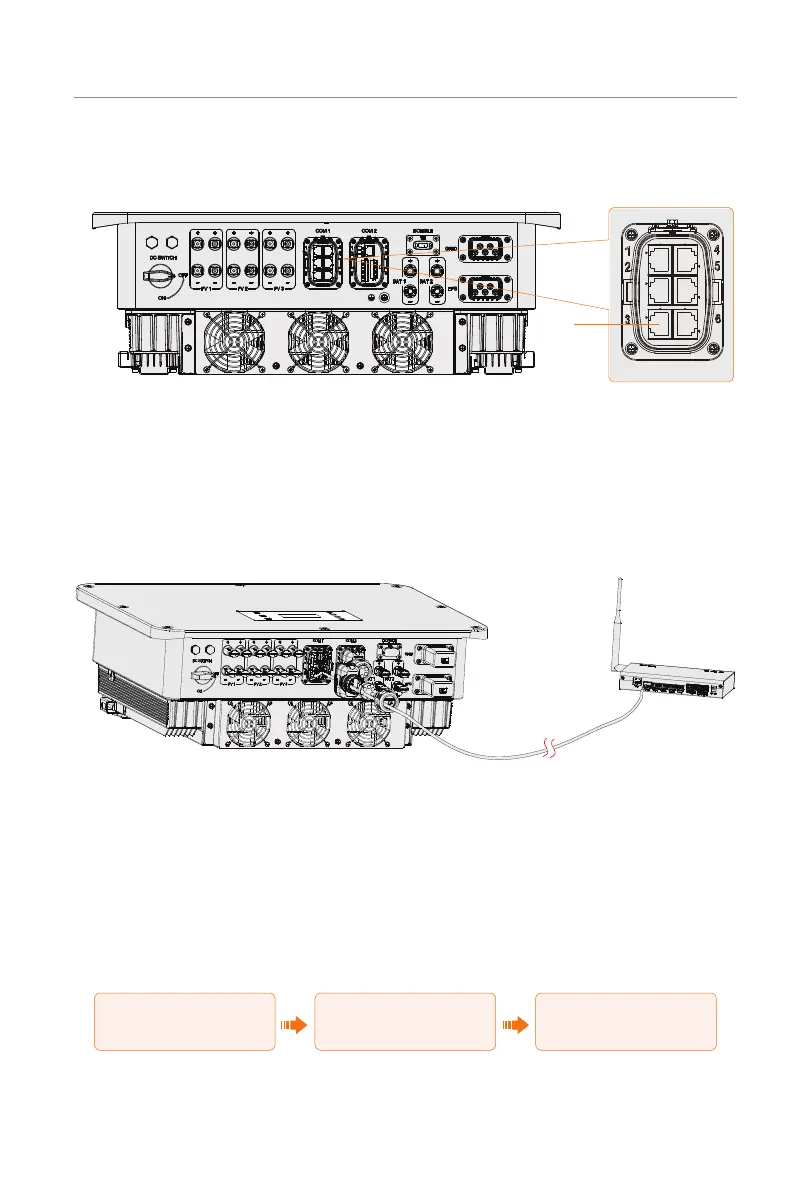

Figure 14-11 Connectiong terminal for Datahub
• Connection pins
For SolaX products, such as the Adapter Box, EV-Charger, and Datahub they can be
connected to pin3 and pin 6 or pin4 and pin5.
• Connection steps
Please refer to "7.6.4 RS85 Communication Connection" for specific wire making and
connection.
Figure 14-12 Connecting to Datahu
Settings for Datahub
①
Setting on the inverter
Setting path: Menu>Setting>Advance Setting>Internal485
a. Select and enter Internal485 interface;
b. Select the Datahub and set the Braud Rate and corresponding Address.
=====Internal485=====
>Function Control
Datahub
>Braud Rate
9600
>Datahub Addr:
1
