Product Overview
2.5.2 Application Schemes
…
N
R
S
T
…
…
…
…
R
PE
N
S T R
N
S
T
PE
+
-
+
-
Inverter
Battery 1
Battery 2
Distribution box
N-BAR for
EPS loads
N-BAR for loads
Loads
Loads
Breaker
Breaker
E-BAR
RCD
Breaker
CT
Main Breaker
Grid
GridEPSBAT2BAT1 PV COM
BMS1
BMS2
Meter/
CT

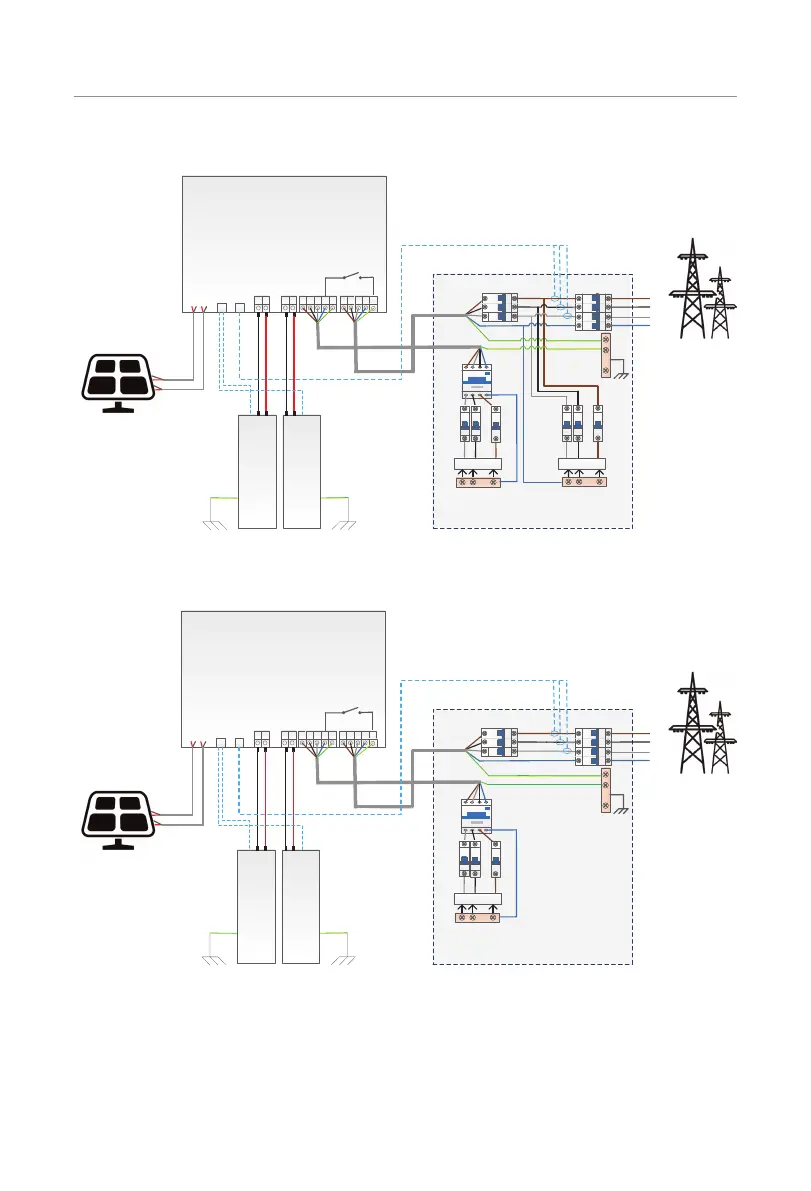

Figure 2-7 Partial home backup for Europe
…
N
R
S
T
…
…
R
PE
N
S T R
N
S
T
PE
+
-
+
-
Inverter
Battery 1
Battery 2
N-BAR
Loads
Breaker
E-BAR
RCD
Breaker
CT
Main Breaker
Grid
Grid
EPS
BAT2
BAT1 PV COM
BMS1
BMS2
Meter/
CT
Figure 2-8 Whole home backup for Europe
