Electrical Connection
PE connection procedures
Step 1: Strip the insulation of conductor by wire stripper.
8-10 mm
4-6 mm

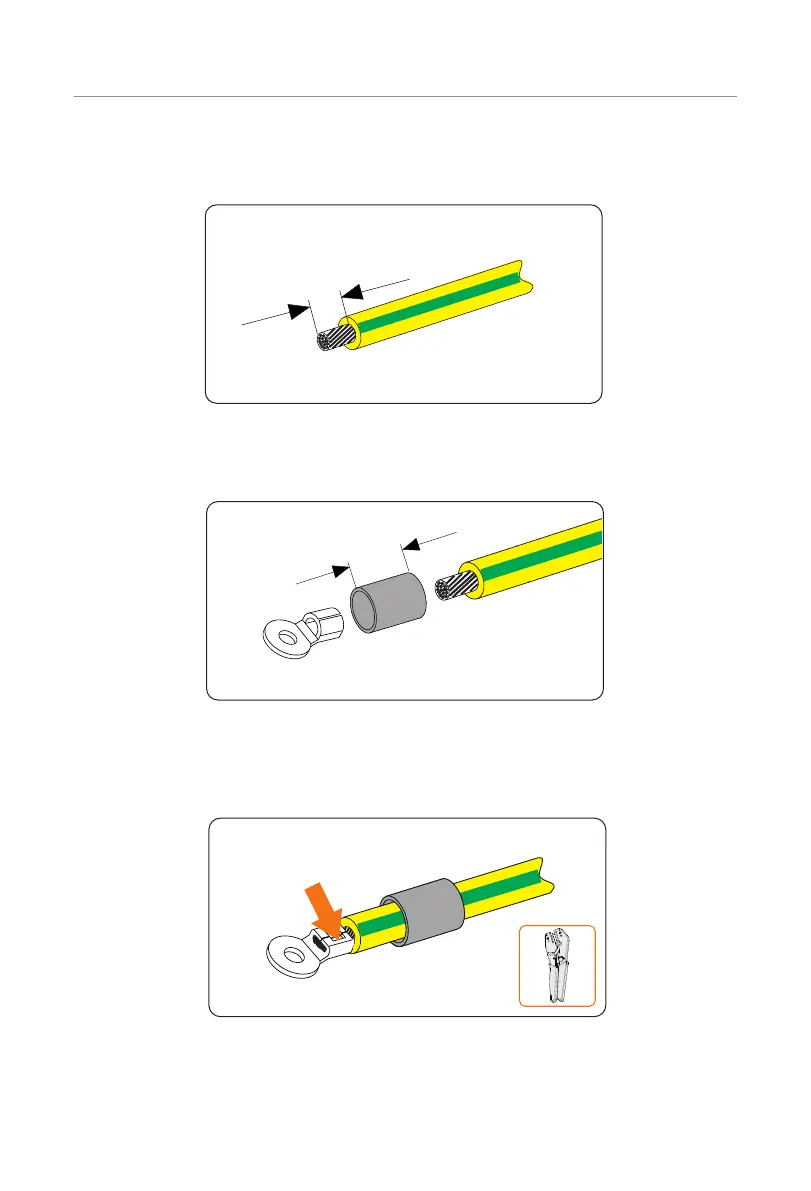

Figure 7-2 Striping the PE cable
Step 2: Pull the heat-shrink tubing over the PE cable and insert the stripped section into
the OT terminal.
28-30 mm
Figure 7-3 Installing the tubing and OT teriminal
Step 3: Crimp it with crimping tool, pull the heat-shrink tubing over the stripped
section of the OT terminal and use a heat gun to shrink it so that it can be firmly
contacted with the terminal.
Figure 7-4 Crimping the cable
