Solcon TPS User Manual

14 • Recommended Wiring Scheme
________________________________________________________________________________________________
4.4 Communication and Synchronization wiring
Notes:
(1) – Use shielded twisted pair for Synchronization loop and for RS485 communication.
(2) – For communication cabling length of cables should not exceed 200m.
(3) - For Synchronization cabling length of cables should not exceed 20m.
(4) - Synchronized mode cannot be implemented if one current analogue input is connected
to several TPS units in series.
4.5 Wiring Notes
WARNINGS!
When mains voltage is connected to the TPS, even if control voltage is
disconnected, full voltage may appear on the TPS load terminals.
Therefore, for isolation purposes, it is necessary to connect an isolating device
before the TPS.
Power factor correction capacitors must not be installed on TPS load side.
When required, install capacitors on TPS line side.

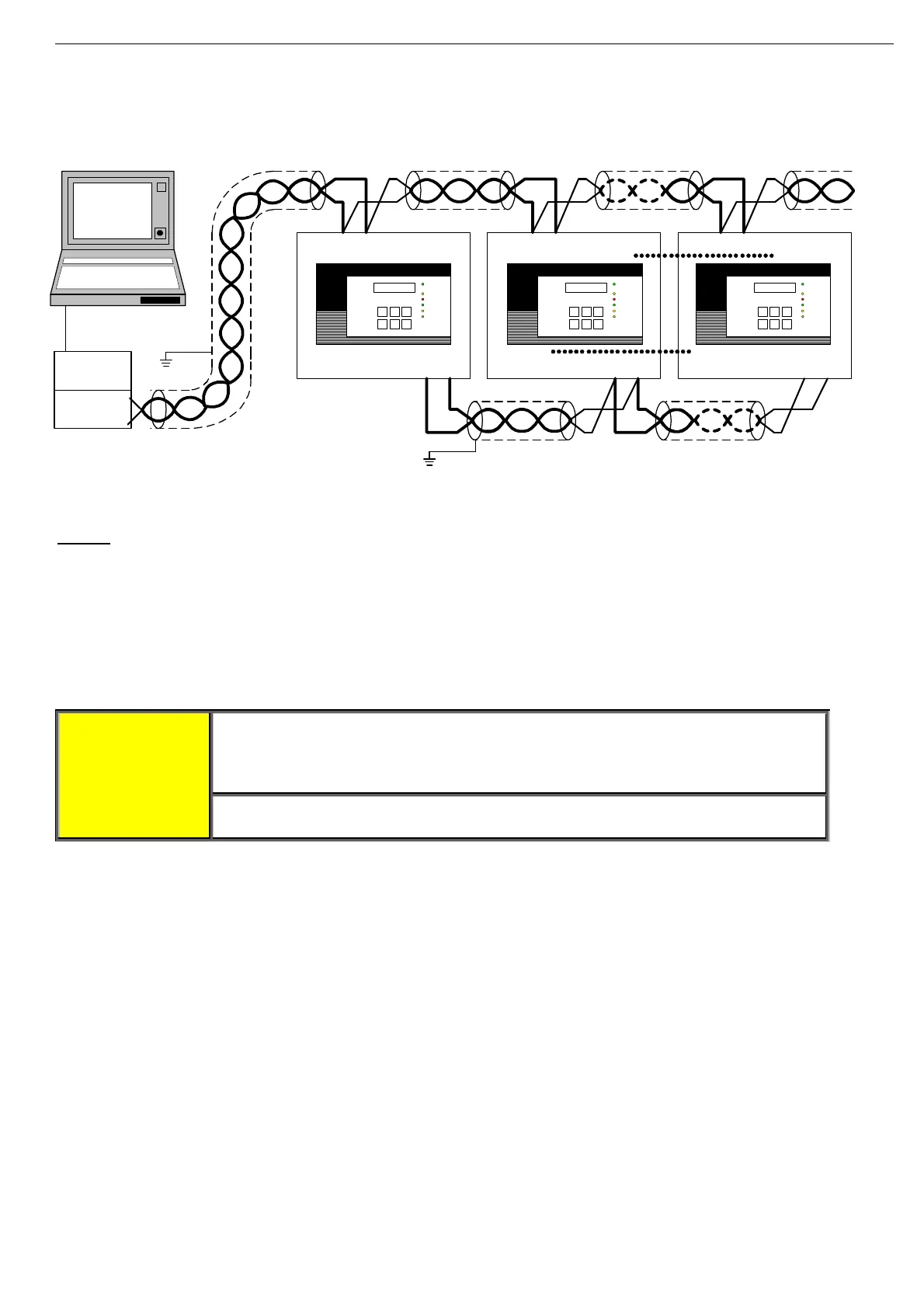

Laptop computer
RS-232
Thyristor Power System TPS Thyristor Power System TPS Thyristor Power System TPS
TPS 1 TPS 2 TPS 10
RS-485
TPS 1 TPS 2 TPS 32
Communication Loop
(up to 32 units)
Synchronization Loop
(up to 10 units)
23(-) 24(+) 23(-) 24(+) 23(-) 24(+)
18(+) 19(-) 18(+) 19(-) 18(+) 19(-)

Solcon TPS Specifications

General Specifications

rated current	8-1500A
rated voltage	120 - 1000VAC +10% -15%
control voltage	120 or 230VAC, 110VDC+10% -15%
frequency	50 / 60 Hz
controlled phases	Three
short-circuit current	25kA
rated insulation voltage	690V (120-690V mains models), 1000V (1000V mains models), 250V (control circuits)
rated impulse withstand	6kV (Mains), 2.5kV (control)
degree of protection	IP00
pollution degree	3
ambient temperature operating	-10 – + 50°C
ambient temperature storage	-20 – + 70°C
altitude	To 1000 m ASL W/O de-rating
cooling	Forced air (fans)
number of CTs	Three
connection modes	Wye - Neutral connected / not connected

Control Specifications

control method	Digital
firing method	Zero crossing, Phase control, Phase control-power
on-off time cycle	1000 – 10000 mSec.
analog input	0-10V >100KΩ / 4-20 mA, 0-20mA <100Ω
control inputs	Start/Stop (with internal 0-60 sec time delays), Aux. contact
output relays	3 programmable (1-C/O) (8A/250VAC)
maximum breaking capacity AC	2000 VA
max. DC load breaking capacity	8A at 30VDC.
synchronization	One master and 2-9 connected slaves

Fan and TPS Consumption Ratings

TPS 8-31A consumption	21W
TPS 44-72A consumption	36W
TPS 85-105A consumption	26W
TPS 145-170A consumption	35W
TPS 210-460A consumption	64W
TPS 580-820A consumption	100W
TPS 55-200A 1000V consumption	40W
